Audiovox PROV710 Operation Manual

Audiovox PROV710 Operation Manual

Drop-down video monitor with built-in dvd player
Hide thumbs Also See for PROV710:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual

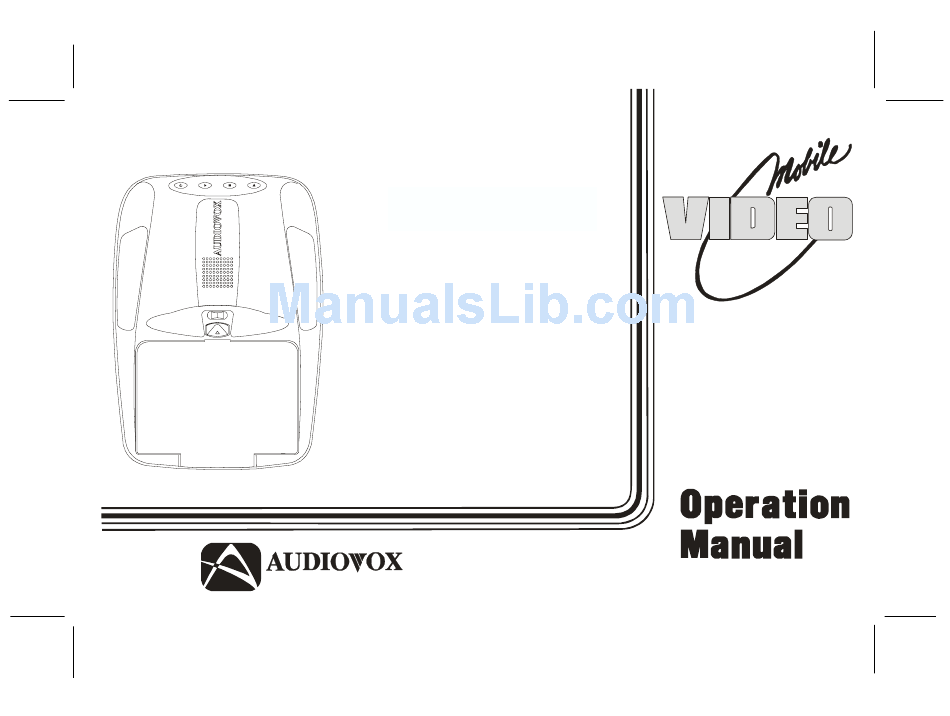

P O W E R
P LAY
S TO P
E JEC T
O N
O FF AU TO
ELECTRONICS CORP .
Date: 12/05/2003
Date: 21/5/2003-PROV710 S & PROV710 P ADDED
VO D 705
PROV710 /
PROV710 S /
PROV 710 P
DROP-DOWN VIDEO
MONITOR WITH BUILT-IN
DVD PLAYER
®
128-6743
128-6743
1 of 26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROV710 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Audiovox PROV710

Summary of Contents for Audiovox PROV710

  • Page 1 VO D 705 PROV710 / PROV710 S / O FF AU TO PROV 710 P DROP-DOWN VIDEO MONITOR WITH BUILT-IN DVD PLAYER ® ELECTRONICS CORP . 128-6743 128-6743 Date: 12/05/2003 1 of 26 Date: 21/5/2003-PROV710 S & PROV710 P ADDED...
  • Page 2 IMPORTANT An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function then the vehicle is in ‘park’...

  • Page 3: Safety Precaution

    Drop-Down Video Monitor. The PROV710/PROV710 Matrix LCD (Liquid Crystal Display) Monitor S /PROV710 P has been designed to give you and • • • • • OSD (On Screen Display) for Control of your family many years of video entertainment in the mobile environment.

  • Page 4: Controls And Indicators Diagram

    Controls and Indicators Diagram P O W E R P LAY S TO P E JE C T O FF AUTO Closed Position Open Position 128-6743 4 of 26...

  • Page 5: Main Function Descriptions

    On – Turns on the dome lights. 8. Infrared Transmitter and Sensor – Use to transmit audio to wireless headphones. Also allows the remote control to operate the PROV710/PROV710 S /PROV710 P OSD (On Screen Display) and to control other accessories in the system.

  • Page 6: Remote Control Operation

    3) Align the cover tabs with the remote control and press down until the cover clicks. The remote control will operate the PROV710/ PROV710 S /PROV710 P. It is not a universal remote control and will not control equipment from other manufacturers...

  • Page 7: Dvd Function Descriptions

    Function control is available on the unit and the remote control. 1. DVD POWER ON/OFF Button* Press this button to turn the PROV710/PROV710 S /PROV710 P on. Press the button again to turn the PROV710/PROV710 S /PROV710 P off. 2. DISPLAY Button Press to display DVD Disc current information.
  • Page 8 5. AUDIO Button Press to display & select AUDIO language & channel. Each time you press the button, the language or channel changes. Note: The languages & channel you can select are vary from disc to disc. 6. ZOOM Button Press this button to zoom the picture.
  • Page 9 10. A-B REPEAT Button Allows the user to repeat play of a DVD or CD from point A to point B. 11a. Select Down (-) Button Used this button to make picture adjustments in picture select mode. b. Select Up (+) Button Used this button to make picture adjustments in picture select mode.
  • Page 10 13. PIX Button (PICTURE SELECT) Each time this button is pressed, the on screen picture adjustment display the “adjustment bars” for CONTRAST/ BRIGHTNESS, COLOR or TINT. Once the desired adjustment bar is displayed, use the Select up/Select Down buttons to adjust the setting. The display will automatically turn off if no adjustments are made within 6 seconds, or if any other button is depressed.
  • Page 11 20. SETUP Button Allows the user to select the DVD player’s options (Display, OSD Language, Defaults, Parental Control, Password, Exit Setup) 21. REPEAT Button Allows the user to repeat various positions of a DVD, CD or MP3. 22. NEXT ( | ) Button Allows the user to skip to the next chapter or track.

  • Page 12: Overhead Dome Lights

    Turning the PROV710/PROV710 S /PROV710 P On or Off 1. Sliding the screen release lock forward will unlock the LCD screen and it will drop down slightly. Pivot the screen downward until a comfortable viewing angle is reached. The internal friction will hold the screen in position while the system is in use.

  • Page 13: Remote Sensor

    Accessories Wireless Headphones The PROV710/PROV710 S /PROV710 P includes a built-in infrared transmitter for use with Audiovox wireless headphones (Part Number MVIRHS). The volume can then be adjusted using the controls on each headset. The wireless headphones must be used within a line of sight from the transmitter, as infrared transmissions, like visible light travel only in a straight line.
  • Page 14 This video input may be connected to a Video cassette Player (VCP), video game system, or other audio / video device. To access the A/V input, turn the PROV710/PROV710 S /PROV710 P on and press the source select button on the PROV710/PROV710 S /PROV710 P or the Source button on the remote control until “AV1”...

  • Page 15: Dvd Basics

    DVD Basics To get the optimum use out of the DVD section, make sure you read this section completely. Regional Coding Both the DVD player and disc are coded by region. These regional codes must match in order for the disc to play. If the codes don’t match, the disc won’t play.

  • Page 16: Settings And Adjustments

    Settings and Adjustments This chapter describes how to set and how to adjust using the on-screen SETUP menu. Using the Setup Menu Using the setup menu you can do the initial setup and set the various options. You can also select a language for the on-screen display, the setup display, and limit play back by children.
  • Page 17 Settings for Display Press the SETUP button and select Display. The DISPLAY SETUP allows you to adjust screen setting (aspect ratio) Press and then use the ( )buttons to select the appropriate settings. 4 : 3 / P S This displays the wide picture on the screen with a portion of the left &...
  • Page 18 Settings for Parental (Parental Control) This section of the SETUP Menu allows user to control the content of movie playback from G to NO_PARENTAL. The Parental Control function allows you to limit viewing to your preference. 1. Use the buttons to select G (Children) PG 13 NC-17...
  • Page 19 Settings for Password (Parental Control Password) Press the SETUP button and select PASSWORD. The PASSWORD SETUP allows you to change the parental control password. Press and then press Enter. OLD PASSWORD Input the OLD password or the default password (4 digits) using the numeric buttons NEW PASSWORD Input a NEW password (4 digits) CONFIRM PWD...

  • Page 20: Playing Audio Cds

    Playing Audio CDs When playing an audio CD, the DISPLAY Banner appears automatically. It displays the current track , the total amount of tracks, and the amount of the time for the track playing. Press the DISPLAY button on the remote to change the DISPLAY Banner.

  • Page 21: Playing Mp3 Discs

    Playing MP3 Discs MP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space. CD-R discs that have been encoded in MP3 format can be played on your DVD player.
  • Page 22 Selecting Folders and Songs When an MP3 disc is inserted in the player, the screen appears automatically. You can change folders and songs through the menu. The DVD player plays the songs in order they were burned on to the disc. 1.

  • Page 23: Troubleshooting

    Troubleshooting PROBLEM SOLUTION PROBLEM SOLUTION • • Check the condition of the vehicle’s Make sure your DVD is connected Poor in vehicle No sound or radio antenna. properly. Make sure all cables are radio reception distorted sound • Verify that the antenna is fully raised. securely inserted into the appropriate (FM modulator •...
  • Page 24 SOLUTION PROBLEM Picture is • The disc might be damaged. Try distorted another disc. • It is normal for some distortion to appear during forward or reverse scan. No forward or • Some discs have sections that reverse scan prohibit rapid scanning or title and chapter skip.

  • Page 25: Replacement Parts

    Replacement Parts Specifications Remote Control 136B3469 LCD Backlighting Edge Light Tube Resolution 1440 x 234 Pixels 336,960 Operation Temperature 32 -140º F (0 - 60º C) Storage Temperature -4 - 176º F (20 - 80º C) Backlight life 10,000 Hours Video Display System NTSC/PAL Low Level Audio Output...
  • Page 26 Applies to Audiovox Mobile Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 36 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
