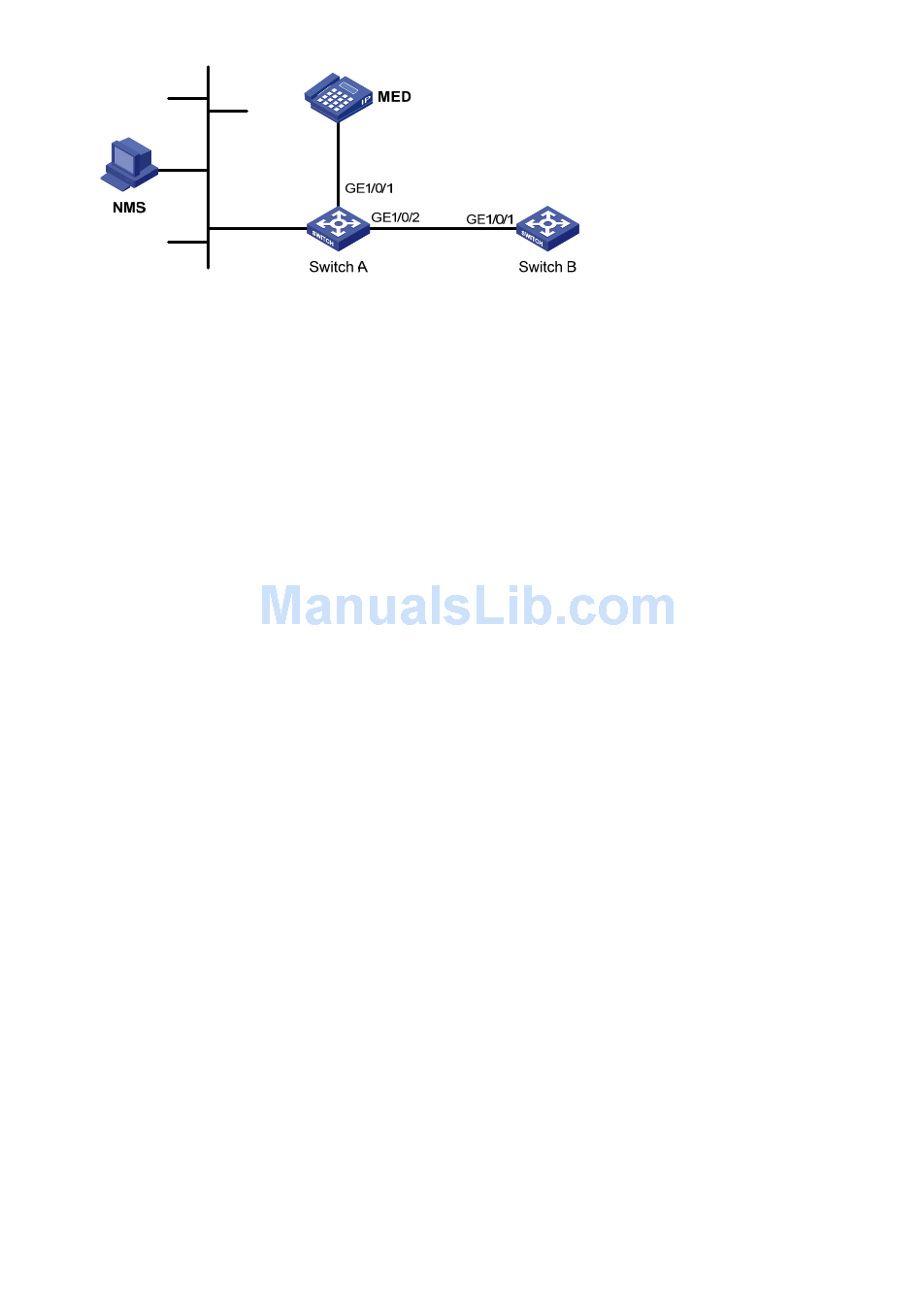

Figure 52 Network diagram for basic LLDP configuration
Configuration procedure
1. Configure Switch A
# Enable LLDP globally (you can skip this step because LLDP is enabled globally by default).
<SwitchA> system-view
[SwitchA] lldp enable
# Enable LLDP on GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2 (you can skip this step because
LLDP is enabled on ports by default), and set the LLDP operating mode to Rx.
[SwitchA] interface gigabitethernet 1/0/1
[SwitchA-GigabitEthernet1/0/1] lldp enable
[SwitchA-GigabitEthernet1/0/1] lldp admin-status rx
[SwitchA-GigabitEthernet1/0/1] quit
[SwitchA] interface gigabitethernet 1/0/2
[SwitchA-GigabitEthernet1/0/2] lldp enable
[SwitchA-GigabitEthernet1/0/2] lldp admin-status rx
[SwitchA-GigabitEthernet1/0/2] quit
2. Configure Switch B
# Enable LLDP globally (you can skip this step because LLDP is enabled globally by default).
<SwitchB> system-view
[SwitchB] lldp enable
# Enable LLDP on GigabitEthernet1/0/1 (you can skip this step because LLDP is enabled on ports by
default), and set the LLDP operating mode to Tx.
[SwitchB] interface gigabitethernet 1/0/1
[SwitchB-GigabitEthernet1/0/1] lldp enable
[SwitchB-GigabitEthernet1/0/1] lldp admin-status tx
[SwitchB-GigabitEthernet1/0/1] quit
Verify the configuration
3.
# Display the global LLDP status and port LLDP status on Switch A.
[SwitchA] display lldp status
Global status of LLDP: Enable
The current number of LLDP neighbors: 2
The current number of CDP neighbors: 0
LLDP neighbor information last changed time: 0 days,0 hours,4 minutes,40 seconds
Transmit interval
Hold multiplier
Reinit delay
: 30s
: 4
: 2s
