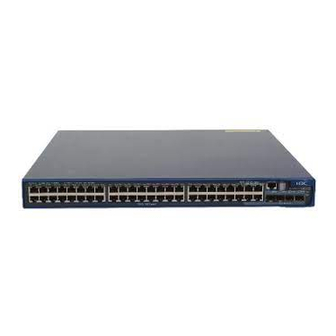

H3C S5120-EI Series Ethernet Switches
IP Multicast
Command Reference
Hangzhou H3C Technologies Co., Ltd.
http://www.h3c.com
Document Version: 6W102-20100722
Product Version: Release 2202
