Summary of Contents for Proline UFZ180

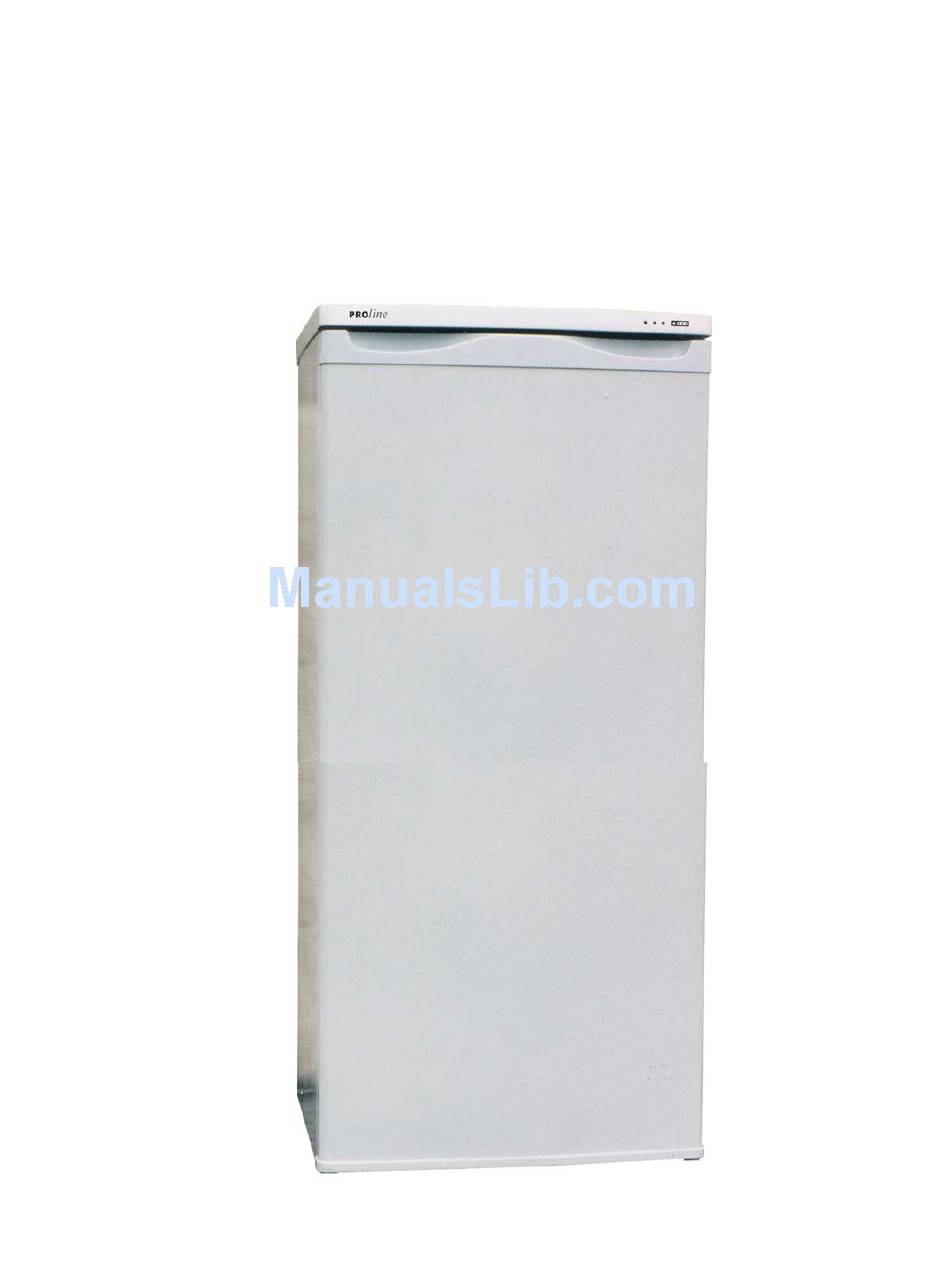

- Page 1 UPRIGHT FREEZER UFZ 180 INSTRUCTION MANUAL...
- Page 2 ELECTRICAL CONNECTION (UK ONLY) For your safety please read the following information Warning: This appliance must be earthed. The appliance must be connected to a 220-240 volts 50 cycle AC supply by means of a three pin socket, suitably earthed and should be protected by a 13 amp fuse in the plug or a15 amp fuse in the consumer unit.
- Page 3 General Description 1. Status Indicator Lights. Red = Over temperature warning. Amber = Fast Freeze switched on. Green = Power on. Thermostat Knob and Fast Freeze switch 2. Ice Bank 3. Freezer Flap. 4. Middle Drawer 5. Low Drawer 6. Adjustable feet The thermostat is located on the front of the cabinet just inside the top of the door recess.
- Page 4 3. Select a location which, is away from heating sources, direct sunlight, ovens, etc. Also, the area should be dry, and free of damp, stale air. Spacers are supplied that clip on the radiator on the back of this appliance for guidance as to distance the unit can be located adjacent to a wall.
- Page 5 Hints and Tips *Fresh foods such as fish and meat can be frozen to maintain freshness, and keep the nutrients in the food. *Food should be wrapped in aluminum foil, or some other type of airtight packing. *Do not allow frozen food in freezer to touch foods just placed into freezer. It can damage the food.
- Page 6 Fill the ice cube tray with fresh drinking water and place in the low temperature ice bank (located above the top compartment.) After the ice cubes are made you can remove them from the tray by twisting the try slightly and or placing the tray under running water for a short time. Don’t- Give children ice-cream or ice direct from the low temperature compartment.
- Page 7 *Do not place hazardous or flammable materials inside, or directly next to, the freezer. *Do not sit on freezer, or place heavy objects on top of freezer. *Do connect your freezer to an independent power outlet. Always make sure to use a safe ground wire.
- Page 8 door open, to eliminate any unpleasant odors. Cleaning your freezer Remove the mains plug from the wall socket, open the door and remove all the food to a cool place. Use a solution of lukewarm water and a teaspoon of bicarbonate of soda with a soft cloth to clean the internal cavity and dry well.
-
Page 9: Do's And Don'ts
NOTE: The following are normal phenomenon. These are not indications of improper operation. 1. Refrigerant may make a gentle sound similar to running water. 2.In humid areas, some moisture may gather on the outside of the freezer. Just wipe away. 3.The compressor becomes very hot. -
Page 10: Maintenance
Troubleshooting Before calling for service please check the following points. The freezer is not working Check the plug is inserted correctly into the wall socket. Check there is power to the wall socket by plugging in another appliance, if the other appliance works check the fuse in the freezer plug. -
Page 11: Leveling The Freezer
Leveling the Freezer Make sure the Freezer is level. Use the rotating leveling feet at the front. If the Freezer is not level, the doors and magnetic seal alignments will be affected. Servicing Qualified service personnel should perform repairs and maintenance of the appliance only. -
Page 12: Technical Data
Technical data Brand Proline Appliance type UFZ180 Star rating 4 Star Total gross volume (l.) 208L Total usable volume (l.) 183L Freezer usable volume (l.) 183L Refrigerator useful volume Freezing capacity (kg/24h) 10.0kg/24h Climate Class +Ambient Range Energy class (1)
