Upright Freezer
MODEL: UFZ155P-U
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UFZ155P-U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Proline UFZ155P-U

Summary of Contents for Proline UFZ155P-U

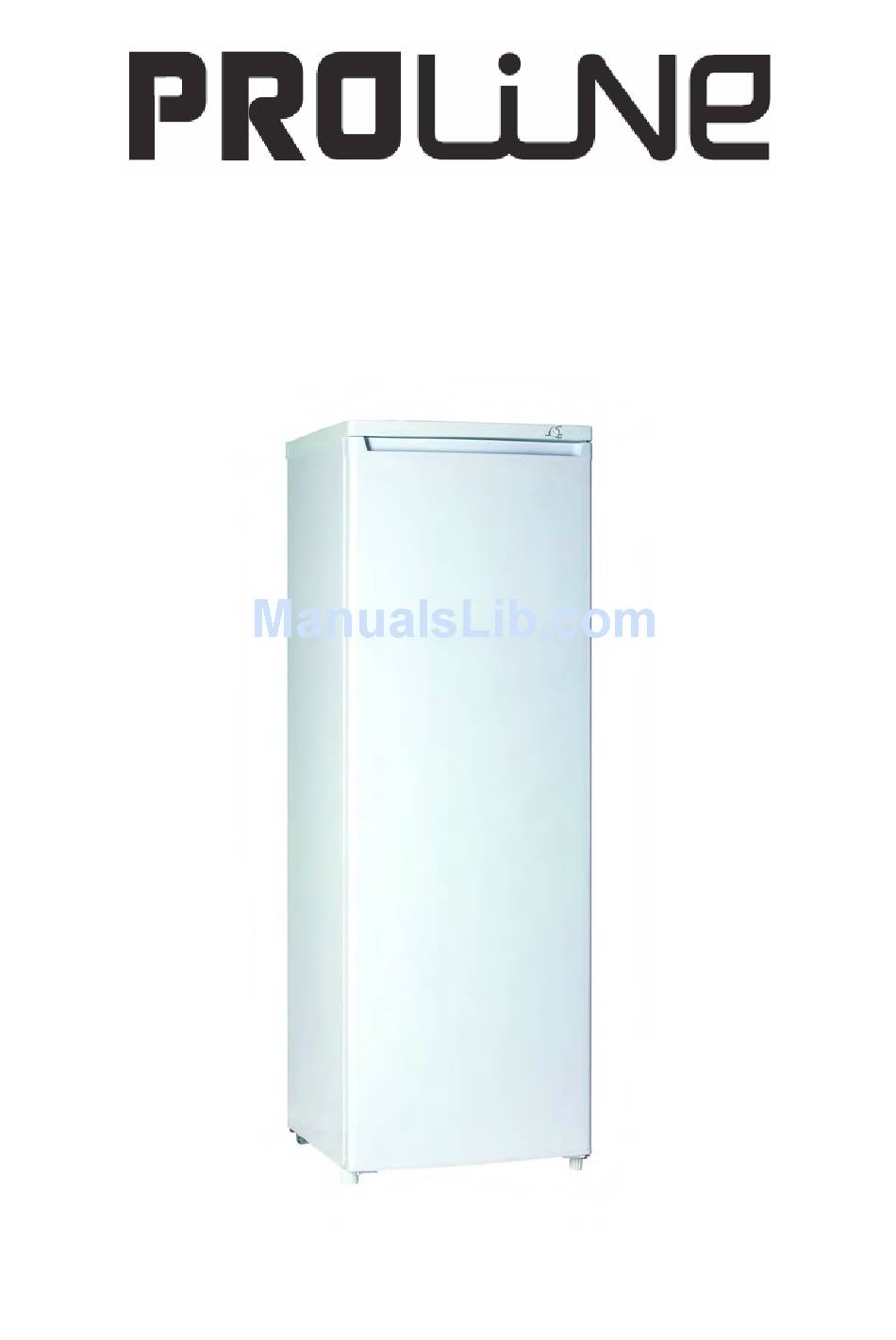

  • Page 1 Upright Freezer MODEL: UFZ155P-U INSTRUCTION MANUAL...
  • Page 2 ELECTRICAL CONNECTION (UK ONLY) For your safety please read the following information Warning: This appliance must be earthed. The appliance must be connected to a 220-240 volts 50 cycle AC supply by means of a three pin socket, suitably earthed and should be protected by a 13 amp fuse in the plug.

  • Page 3: Description Of The Appliance

    DESCRIPTION OF THE APPLIANCE 1. Top cover 2. Drawers 3. Cabinet 4. Adjustable feet 5. Door assembly 6. Thermostat knob Note: Compartment design may change due to product improvement, No prior notice will be given.

  • Page 4: Electrical Connection (Uk Only)

    THANK YOU FOR PURCHASING THIS PROLINE PRODUCT This booklet contains the information you will require to install and operate your new appliance. It is important and worthwhile spending time to fully read this booklet so you will understand how to operate the appliance safely and efficiently.

  • Page 5: Installation

    If the mains cord becomes damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard. Always attach a plug to the appliance, and then plug it into the wall outlet and switch on. To disconnect from the mains completely, turn the appliance OFF, then remove the plug from wall outlet.
  • Page 6 Choose a well-ventilated location with no less than 10cm clearance around the freezer. Place the freezer in a location with a firm base in order to prevent vibration and excessive noise. Level the freezer by adjusting the two front feet. CAUTION: DO NOT SITE THIS PRODUCT IN EXCESSIVELY COLD OR HUMID AREAS, SUCH AS OUTBUILDINGS, GARAGES OR CELLARS.

  • Page 7: Using The Appliance

    USING THE APPLIANCE This appliance is designed to operate in ambient temperatures (surrounding air temperature) between 16℃ and 32℃ If these temperatures are exceeded i.e. colder or warmer, the appliance will not operate correctly. Should the ambient temperatures be exceeded for long periods, the temperature in the freezer section will rise above -18 ℃...
  • Page 8 FREEZING FRESH FOOD See the technical data sheet at the rear of this booklet for the maximum permissible amount in kilograms of fresh food that can be frozen in any 24-hour period with a room temperature of 25℃. Never freeze more than the maximum permissible. Set the temperature control to "Super"...

  • Page 9: Power Failure

    POWER FAILURE If there is a power failure for a short time, less than 12 hours, keep the door closed. Frozen food should not be affected if the power failure lasts less than 12 hours. Extra protection can be given by covering the appliance with two or three thick blankets. If a long power failure is anticipated, try to get the foodstuff into another freezer or cold store.

  • Page 10: Reversing The Door

    Reversing the door Warning! When changing the way the door opens, the appliance must not be connected to the mains. Remove the plug from the mains before working on the door. Remove the two screws (6) and remove the worktop by raising the rear and pushing it forwards. Remove the two screws (1) and remove the upper hinge (5) from the right side of the cabinet.

  • Page 11: Maintenance

    Troubleshooting Before calling for service please check the following points. The freezer is not working Check the plug is inserted correctly into the wall socket. Check there is power to the wall socket by plugging in another appliance, if the other appliance works check the fuse in the freezer plug.

  • Page 12: Do's And Don'ts

    Do’s and don’ts Do- Clean and defrost your appliance regularly (See “Defrosting”) Do- Wrap raw meat and poultry loosely in polythene or aluminium foil. This prevents drying. Do- Wrap fish and offal in polythene bags. Do- Check contents of the compartments every so often. Do- Store commercially prepared food in accordance with the instructions given on the packets.

  • Page 13: Technical Data

    Technical data Brand Proline Appliance type Upright Freezer Star rating Total gross volume 195L Total storage volume 165L Freezer storage volume 165L Freezing capacity 8.0kg/24h Maximum rated wattage of lamp Rated power input 100W Rated current 0.65A Climate Class + Ambient Range N (+16℃...

  • Page 14: Important Disposal Instructions

    IMPORTANT DISPOSAL INSTRUCTIONS As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for your product and packaging materials. This will help conserve natural recourses and ensure that it is recycled in a manner that protects health and the environment.
