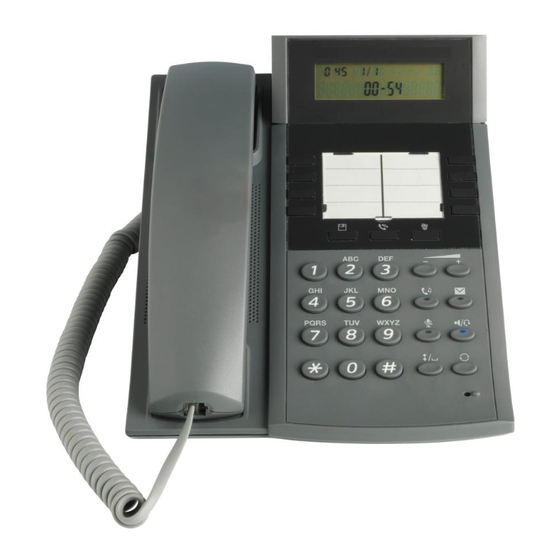

Mitel 7147 Analog Phone
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7147 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mitel 7147

Summary of Contents for Mitel 7147

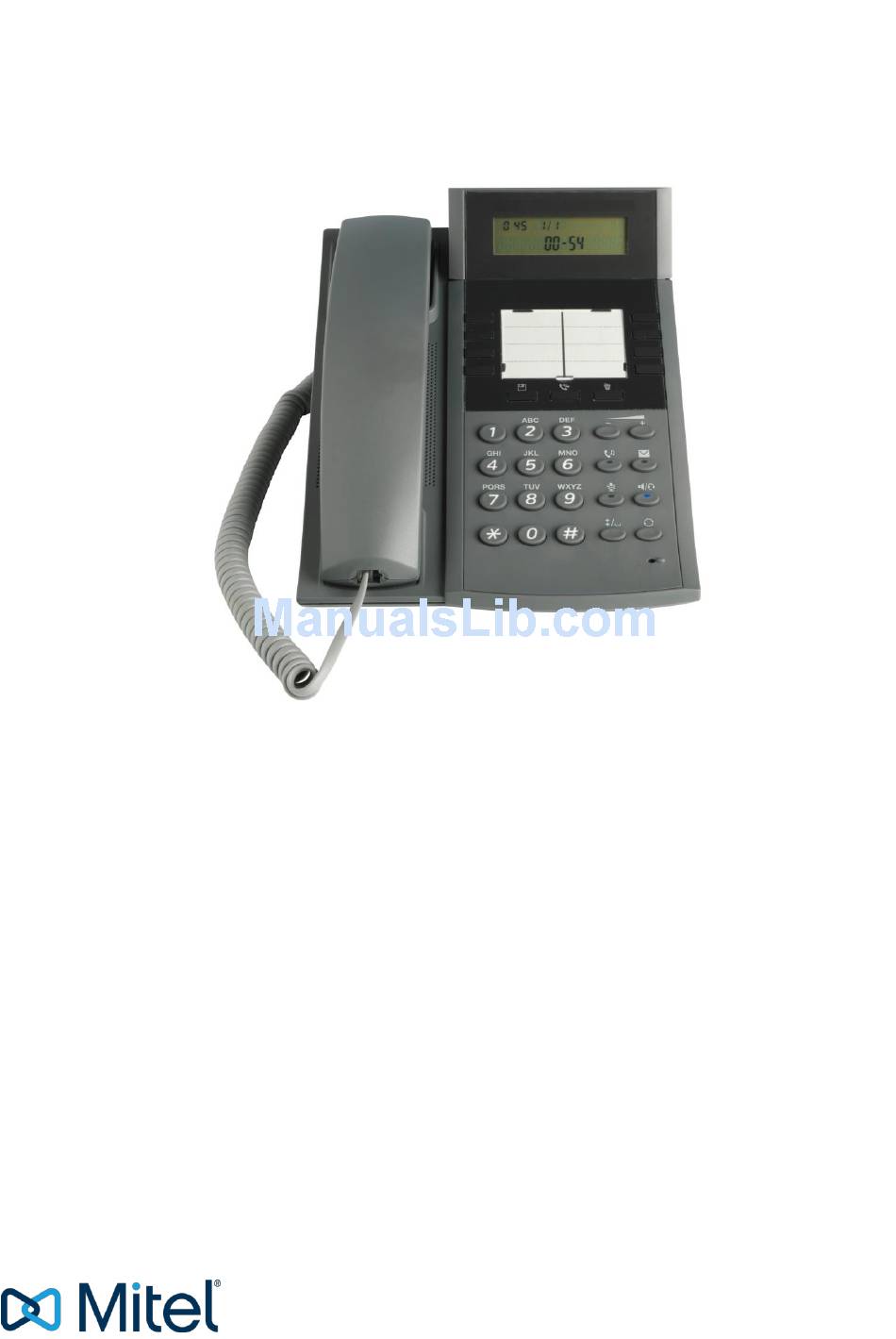

  • Page 1 Mitel 7147 Analog Phone USER GUIDE...
  • Page 2 The information is subject to change without notice and should not be construed in any way as a commitment by Mitel or any of its affiliates or subsidiaries. Mitel and its affiliates and subsidiaries assume no responsibility for any errors or omissions in this document.

  • Page 3: Table Of Contents

    Contents INTRODUCTION ..............................1 USER INFORMATION TELEPHONE PARTS TELEPHONE LAYOUT TABLE WITH KEY- SYMBOLS CABLE INLETS AND MW SWITCH CALL HANDLING .............................. 4 INCOMING CALLS OUTGOING CALLS DURING CALLS CALL FORWARDING OPTIONAL CALL HANDLING FEATURES TELEPHONE/MENU FEATURES........................15 CALL RECORDS/CALL LOG SPEED DIAL MEMORY CALLER ID DISPLAY PHONE SETTING...

  • Page 4: Introduction

    Mitel 7147 User Guide – PR2C INTRODUCTION Mitel 7147 is an easy managed line-powered analogue phone. It supports, call log, message waiting, volume adjustment, configuration lock. This user guide describes the features of the Mitel 7147 when it is connected to MiVoice MX-ONE and Telephony Switch.

  • Page 5: Telephone Parts

    Mitel 7147 User Guide – PR2C TELEPHONE PARTS When you unpack your phone, you should ensure that you have all of the following items. If any part is missing, contact the supplier of your phone. | LZT 102 4162 | Uen | PR2C | 2016-03-04|...

  • Page 6: Telephone Layout

    Mitel 7147 User Guide – PR2C TELEPHONE LAYOUT | LZT 102 4162 | Uen | PR2C | 2016-03-04|...

  • Page 7: Table With Key- Symbols

    Mitel 7147 User Guide – PR2C TABLE WITH KEY- SYMBOLS Symbols / French Spanish German Portuguese Dutch Keys Speed-dial Numérotation Teclas Kurzwahl Snel-kiezen Discagem rápida abrégée Touche programables M0-M7 M0-M7 M0-M7 M0-M7 M0-M7 M0-M7 Flash key Touche R-Flash Flash Haakcontact...

  • Page 8: Cable Inlets And Mw Switch

    Mitel 7147 User Guide – PR2C CABLE INLETS AND MW SWITCH Symbols French Spanish German Portuguese Italian Line socket Prise ligne Presa linea Puerto Anschlussbuchse Conector de téléphonique telefonica conneccion de linha telefônica linea OFF / Hi Volt / ARRET / Haute...

  • Page 9: Call Handling

    Mitel 7147 User Guide – PR2C CALL HANDLING INCOMING CALLS To answer an incoming call Lift the handset or press without lifting the handset. Answer a second call A call waiting tone will inform you, during conversation that a second call is waiting. You have two...

  • Page 10: Outgoing Calls

    Mitel 7147 User Guide – PR2C Call duration timer for incoming calls A call duration timer for incoming calls starts 5 seconds after “off hook” status is established. The caller ID is stored in the call list OUTGOING CALLS Dial and Pre-dial...
  • Page 11 Mitel 7147 User Guide – PR2C Dial Back from Call Record 1. Press 2. Press repeatedly to scroll the list and select call record that you wish to call 3. Lift the handset or press Speed-dial by Memory Keys (M0-M7) 1.

  • Page 12: During Calls

    Mitel 7147 User Guide – PR2C DURING CALLS Mute 1. When a call is in progress, press to mute (LED flashing). 2. To speak to the caller, press again (LED off). Mute with music/Music on hold 1. When a call is in progress, press to hold the call (LED on).

  • Page 13: Call Forwarding

    Mitel 7147 User Guide – PR2C CALL FORWARDING Diversion If you do not want to be disturbed or will be out of office, you can have all calls to your extension diverted to a preprogrammed answering position. Diversion can be made direct, on no answer, on busy or to another information service facility.
  • Page 14 Mitel 7147 User Guide – PR2C Ordering Follow-me from your own phone: 1. Lift the handset (dial tone) and press numeric key * 2 1 * (UK:*2* ) 2. Dial extension number of the answering position and press # (Special dial tone) 3.

  • Page 15: Optional Call Handling Features

    Mitel 7147 User Guide – PR2C 2. Press numeric keys # 2 1 * ( UK:*2* ) 3. Dial diverted extension number and press # 4. Replace the handset External Follow me 1. Lift the handset and press numeric keys * 2 2 # 2.
  • Page 16 Mitel 7147 User Guide – PR2C Activate or change profile from own extension: 1. Lift handset and press numeric keys *1 0 * ( 1- 5 ) # 2. Replace the handset Canceling a profile from your phone: 1. Lift handset and press numeric keys #10# 2.
  • Page 17 Mitel 7147 User Guide – PR2C 2. Dial the extension number and press * 3. Enter the absence code (0-9), press * Enter date or time (MMDD) or time (HHMM), for the other persons return, Press #, Replace the handset.
  • Page 18 Mitel 7147 User Guide – PR2C 3. Dial extension number to the new answering position, press # 4. Replace the handset To cancel the diversion: 1. Lift the handset and press numeric key # 2 4 * 2. Dial the number of the group that has been diverted 3.
  • Page 19 Mitel 7147 User Guide – PR2C 2. Enter authorization code and press # 3. You receive a verification tone. Authorization code, individual If you are authorized to use an individual authorization code (1-7 digits, affiliated to your own extension) you can lock your own extension to a common authority level, e.g. when out of the office.

  • Page 20: Telephone/Menu Features

    Mitel 7147 User Guide – PR2C TELEPHONE/MENU FEATURES CALL RECORDS/CALL LOG View Call Records 1. Press [ ] to view the call list 2. Press [ ] repeatedly to scroll the list Save a Call Record To store one telephone number from the Call Records list to one of the memory keys: 1.

  • Page 21: Caller Id Display

    Mitel 7147 User Guide – PR2C 3. Press [ CALLER ID DISPLAY After receiving a new incoming call, the number will be displayed on LCD and hold for 10s. During this time, if received another new call, it will continue to display for 10s and display corresponding call.
  • Page 22 Mitel 7147 User Guide – PR2C Disable Ring Signal To disable the ring signal for incoming calls: Unlock the phone Press the ‘Volume – until you reach Silence level (long press 3 sec). The display will show "RING OFF" to notify the user that the ring signal is disabled.
  • Page 23 Mitel 7147 User Guide – PR2C To lock the phone 1. During On-hook, press [save]+[XXXX]+[#] (XXXX is the set password) To unlock the phone 1. During On-hook, press [Save]+[XXXX]+[*] (XXXX is the set password) | LZT 102 4162 | Uen | PR2C | 2016-03-04|...

  • Page 24: System Dependent Phone Setting

    Mitel 7147 User Guide – PR2C Set time and date 1. In idle state, press [save] for 3 seconds to enter the time/date setting mode 2. Enter the number for HH:MM DD/MM (or MM/DD depends on the date format selected). For example, 17:30 28/06, press [1]+[7]+[3]+[0]+[2]+[8]+[0]+[6].
  • Page 25 Mitel 7147 User Guide – PR2C Disable the message waiting function: I). Change the MW switch at the back of the telephone to “OFF”. II). Delete the number to the voice mail box from the MW memory: Place the handset on the phone...

  • Page 26: Telephone Specification

    Mitel 7147 User Guide – PR2C TELEPHONE SPECIFICATION Main Characteristics Professional Telephone Single line Analog (DTMF) Signaling Market Certification Europe (CE) Body Color Dark grey Features Visual indicator for incoming call Flashing LED DTMF dialing Number memory Stores 8 telephone numbers...
  • Page 27 Mitel 7147 User Guide – PR2C Redial/Pause Flash key (R) Mute key with LED Handsfree / Headset pre-set key with Hold key with LED MW with LED indicator Volume control Save Call list key Delete key Handset receiver Electro-dynamic Microphone...

  • Page 28: Wall Mounting

    Mitel 7147 User Guide – PR2C WALL MOUNTING | LZT 102 4162 | Uen | PR2C | 2016-03-04|...
