Net Prowler
Identify, Monitor & Test LAN Issues

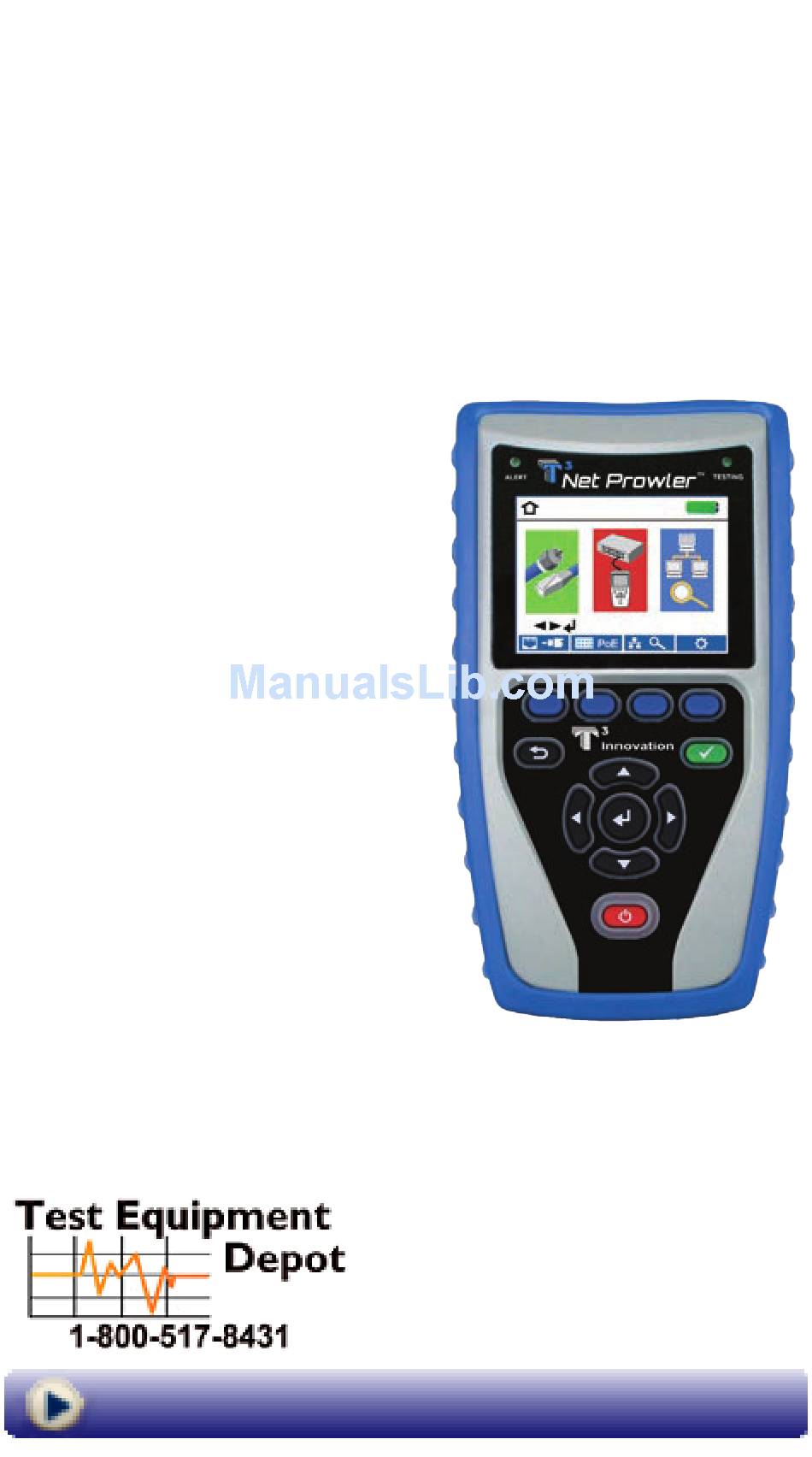

• Displays a map of IPV4/IPV6 devices on a sub-network
and protocols detected
• Pings IP addresses or URL's
• Tests TCP/UDP throughput
• Displays length measurement for each pair in
feet or meters using TDR technology
• Detects presence of PoE and class of PoE per
IEEE 802.3af/at with load test for voltage drop
• Detects and reports current link speed and
link capabilities for active Ethernet drops, up
to 1 Gbps
• Link light to identify location on a hub/switch/
router port
• Tests Ethernet cable configuration and verifies
connectivity while conducting tests for opens,
shorts, miswires, split pairs, and reverses
• Generates selectable tones on selected pins for
use with tone tracers
• Supports up to 8 testing & ID remotes for
network & telephone cables
• Supports up to 20 network & coax ID-only
mapping remotes
• View saved cable tests
• Full color graphical wire-mapping
• Ability to define cable name, save cable tests,
and print all results (cable testing & network testing)
• Multilingual (English, French, Spanish)
Visit us at www.TestEquipmentDepot.com
User Manual
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
TM
TNP700
Advertisement
Table of Contents
