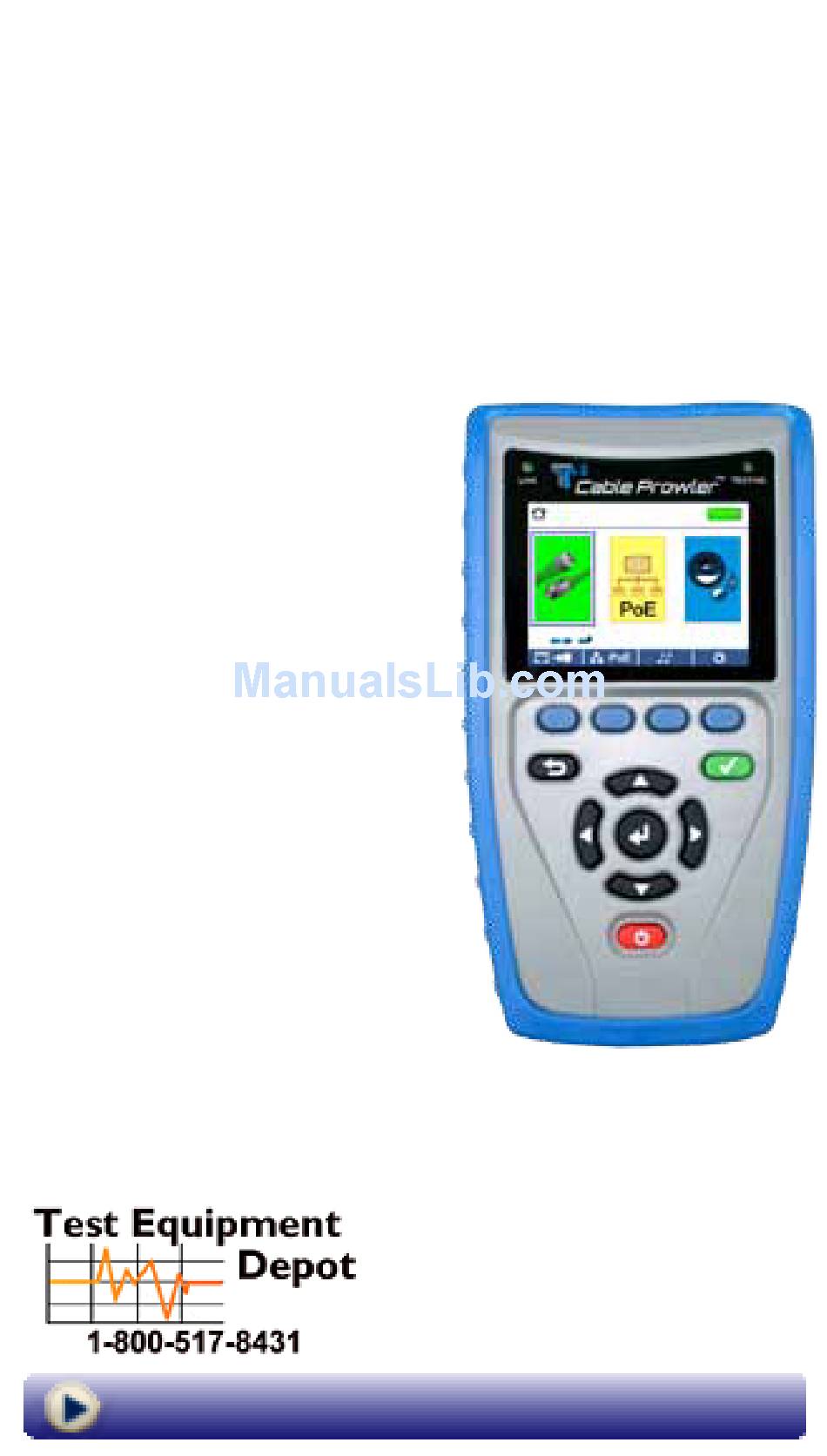

Cable Prowler
Full-Color Cable Testing and Report Management
• Displays length measurement for each pair in feet or
meters using TDR technology
• Detects presence of PoE and class of PoE per IEEE
802.3af/at with load test for voltage drop
• Detects and reports current link speed and link
capabilities for active Ethernet drops, up to 1 Gbps
• Link light to identify location on a
hub/switch/router port
• Tests Ethernet cable configuration and verifies
connectivity while conducting tests for opens,
shorts, miswires, split pairs,
and reverses
• Generates selectable tones on selected pins for use
with tone tracers
• Supports up to 8 testing & ID remotes for network &
telephone cables
• Supports up to 20 network & coax ID-only mapping
remotes
• View saved cable tests
• Full color graphical wire-mapping
• Ability to define cable name, save cable tests, and
print all results (cable testing & network testing)
• Multilingual (English, French, Spanish)
Visit us at www.TestEquipmentDepot.com
User Manual
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
TM
TCB300
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Test Equipment Depot Cable Prowler TCB300
Summary of Contents for Test Equipment Depot Cable Prowler TCB300
- Page 1 Cable Prowler Full-Color Cable Testing and Report Management User Manual • Displays length measurement for each pair in feet or meters using TDR technology • Detects presence of PoE and class of PoE per IEEE 802.3af/at with load test for voltage drop • Detects and reports current link speed and link capabilities for active Ethernet drops, up to 1 Gbps • Link light to identify location on a...
-
Page 2: Table Of Contents
Cable Prowler Full-Color Cable Testing and Report Management User Manual Table of Contents About this Manual..................3 Safety Information..................4 Cable Prowler Kits..................5 Cable Prowler Accessories................6 Cable Prowler Description................7 Remotes....................7 LCD Screen....................8 Types of Faults.....................8 Operations....................9 On/Off......................9 Automatic Power Down................9 Setup......................10 Changing a Setting..................11 Cable Testing.....................12 Cable Testing Guidelines................12 Safety Notes..................12... -
Page 3: About This Manual
ABOUT THIS MANUAL The Cable Prowler™ combines the functions of a high-end cable tester and length-measurement device. It identifies link status, link capability, and detects PoE. All of this is done in full color with internal memory to save your results. Feature Function ▪... -
Page 4: Safety Information
Items must be properly disposed of in accor- dance with local regulations. It is not recommended to use the Cable Prowler when the Voltage! icon is present. Test Equipment Depot - 800.517.8431 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com... -
Page 5: Cable Prowler Kits
Cable Prowler Kits Your Cable Prowler is part of a kit. Two kits to meet your cable testing needs: • TCB300 •Cable Prowler™ Main Unit •#1-5 Coax Remote Set •#1-5 Data Remote Set •F Female to F Female Adapter F81 •Network/Tel Testing &... -
Page 6: Cable Prowler Accessories
Cable Prowler Accessories P/N 18301C F Female to F Female Adapter F81 P/N 18303C BNC Female to F Female Adapter P/N 18305C BNC Female to F Male Adapter P/N TCA007 Cable Assembly: Micro USB to USB P/N 21025C RJ45 Port Saver P/N 4007 Hanging Pouch P/N 4072... -
Page 7: Cable Prowler Description
Cable Prowler Description Full-color LCD display Soft keys perform the function on the display above each button. Back Test Enter Direction cursors to move in LCD display On/Off RJ45 jack Micro USB Port F-connector Jack Remotes T120C T121C Coax Remote Set: Network ID #1-20 coax ID;... -
Page 8: Lcd Screen
LCD Screen The Cable Prowler features a full-color graphic LCD screen. Press any of the four soft keys (blue) below the on-screen icon to select that function. Alternately, you can use the side or up/down arrows to scroll to your selected on screen function and press enter (the center arrow). -
Page 9: Operations
The Cable Prowler automatically turns off to conserve battery power if no input or activity is performed on the device. See “setup” to adjust the length of time before automatic power down. Test Equipment Depot - 800.517.8431 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com... -
Page 10: Setup
SETUP From the main screen, press the blue button on the far right below the “setup” symbol . Use the up and down arrow buttons to scroll through the Setup menu and to select an option. ▪ Use the up and down buttons to navigate through the settings. ▪... -
Page 11: Changing A Setting
Changing a Setting ▪ RJ45 VoP : Set the VoP to be used to measure RJ45 cable. ▪ Coaxial VoP : Set the VoP to be used to measure coaxial cable. ▪ TIA568A/TIA568B: Set the RJ45 wiring configuration to TIA568A or TIA568B wiring standard. ▪... -
Page 12: Cable Testing
CABLE TESTING Cable Testing Guidelines The Cable Prowler tests coax, network, and phone cables to detect possible faults, measure cable lengths, show wire pairing and examine a cable’s physical/electrical properties. Important Notes: • RJ jacks for data and phone share internal connections on the Cable Prowler. -
Page 13: How To Perform A Cable Test
How to Perform a Cable Test ▪ Power on the Cable Prowler. ▪ Connect a network, coax, or telephone cable to the appro- priate connector on the top of the Cable Prowler. (Warning! Do not plug an RJ11 cable directly into the Cable Prowler. A standard RJ11 cable will damage the Cable Prowler’s RJ45 jack. -
Page 14: Network/Power Over Ethernet (Poe) Testing
Network / Power over Ethernet (PoE) Testing Power over Ethernet or PoE describes a specification which allows passing of electrical power along with data on Ethernet cabling. There are two standardized specifications the IEEE 802.3af, and IEEE 802.3at also known as PoE+. The first provides a maximum 12.95 Watts, and the second provides a maximum of 25.5 W. -
Page 15: Link Light
▪ The Link LED above the LCD screen will flash at the same cadence as the port light. ▪ Use the up and down arrows to adjust the transmit fre- quency to suit the switch characteristics. Test Equipment Depot - 800.517.8431 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com... -
Page 16: Tone Generator
Tone Generator Tone generation is used to trace cable runs and locate faults by sound. Selection of this mode emits a cadence from the Cable Prowler through the connected cable. The tone is detected by a tone tracer probe. ▪ Power on the Cable Prowler. ▪... -
Page 17: Cable Prowler Application
Cable Prowler Application The Cable Prowler Application gives you the ability to view, save and print cable and network test results on your computer. This application can also update your Cable Prowler’s firmware. To install the Cable Prowler application ▪ download the Cable Prowler software application. ▪... - Page 18 To write cable tests to the Cable Prowler ▪ Connect the Cable Prowler to your computer using the included USB cable. ▪ Open the Cable Prowler software application. Click on “File”, “Open”, and select the desired cable tests. ▪ Click on “Write Prowler” and the contents of the currently displayed tests will be written to the Cable Prowler.
-
Page 19: Updating Firmware
Updating Firmware To Download the New Cable Prowler Firmware ▪ Click on the Cable Prowler Firmware update link to download the new firmware. ▪ Save the Cable Prowler.cyacd file to your computer. Updating the Cable Prowler ▪ Connect the Cable Prowler to your computer using the included USB cable. ▪... -
Page 20: Maintenance
▪ Batteries should be removed if the device is stored for a long time. ▪ Do not expose the Cable Prowler to high temperatures or humidity. See the specifications section for temperature limits. Test Equipment Depot - 800.517.8431 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com... -
Page 21: Specifications
SPECIFICATIONS Measurement Time Domain Reflectometry (TDR) Technology Cable Testing and ID: up to 1000 ft (305 m) Split Pair Detection: 3 ft (1 m) to 1,000 ft (305 m) Cable Length Measurement: 0 to 1,500 ft (457 m), ± (5%+1ft) Measurements Supports 8 continuity and ID number remotes (RJ-45) Supports 20 RJ-45 and 20 F-Connector ID only remotes... -
Page 22: Customer Service
Warranty Information PlatinumTools guarantees that its products will be free of all defects in material and workmanship. This warranty extends for a period of 12 months from the date of manufacture or proof-of-purchase. All products deemed defective under this warranty will be repaired or replaced at Platinum Tools discretion. - Page 23 Cable Prowler Full-Color Cable Testing and Report Management User Manual Test Equipment Depot - 800.517.8431 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com...
