User Manual

FEATURES

Compatible With DVD, Super VCD, VCD,

CDDA, CD-DVD, JEPG CD,

CD+G and MP3 Media Format.

This DVD player can play a variety of disc media inclu-

ding DVD Video, Video CD, CDDA, Super VCD, CD-DVD,

Mini-DVD and MP3 media format.

2/5.1 Channel Analog Audio Output

This DVD player can output down mixed audio with LT/

RT, Stereo, and 5.1 Dolby® Surround modes.

Dolby

Digital & DTS

Digital Audio Output Support

This DVD player can send Dolby® Digital or DTS® Digi-

tal audio data via its built-in digital audio output to an exter-

nal Dolby® Digital or DTS® Digital decoder.

High Quality 96kHz/24bit Audio D/A Converter

This DVD player features a 96KHz/24Bit D/A converter

for superior audio reproduction of encoded discs.

10-Bit 27Mhz D/A Video Converter

This DVD player's 10-bit D/A converter is four times

more accurate than conventional 8-bit converters. The re-

sult is artifact-free and crystal clear video image.

Auto NTSC and PAL Video Disc Conversion

This unit can play NTSC and PAL formats discs. This

DVD player can automatically convert either format to

match your TV set. For example, if your TV set is a NTSC

system TV and you're playing a PAL format disc, this DVD

player will automatically convert the PAL format signal to

NTSC format signal to play on your TV.

X1.5/X2X3 Video Zoom Support

The user selectable digital video zooms out zoom-in on

a speciﬁc portion of a video image.

Multi-Speed Fast Forward/Reverse Scan

The digital fast forward/reverse scan is capable of scan-

ning speeds of X2, X4, X6, and X8.

DVD-004 LaScala

Multi-Speed Slow Motion

Forward/Reverse Scan

following speeds: X1/2, X1/4, and X1/8.

Volume Control of Analog Audio Output

output from remote control.

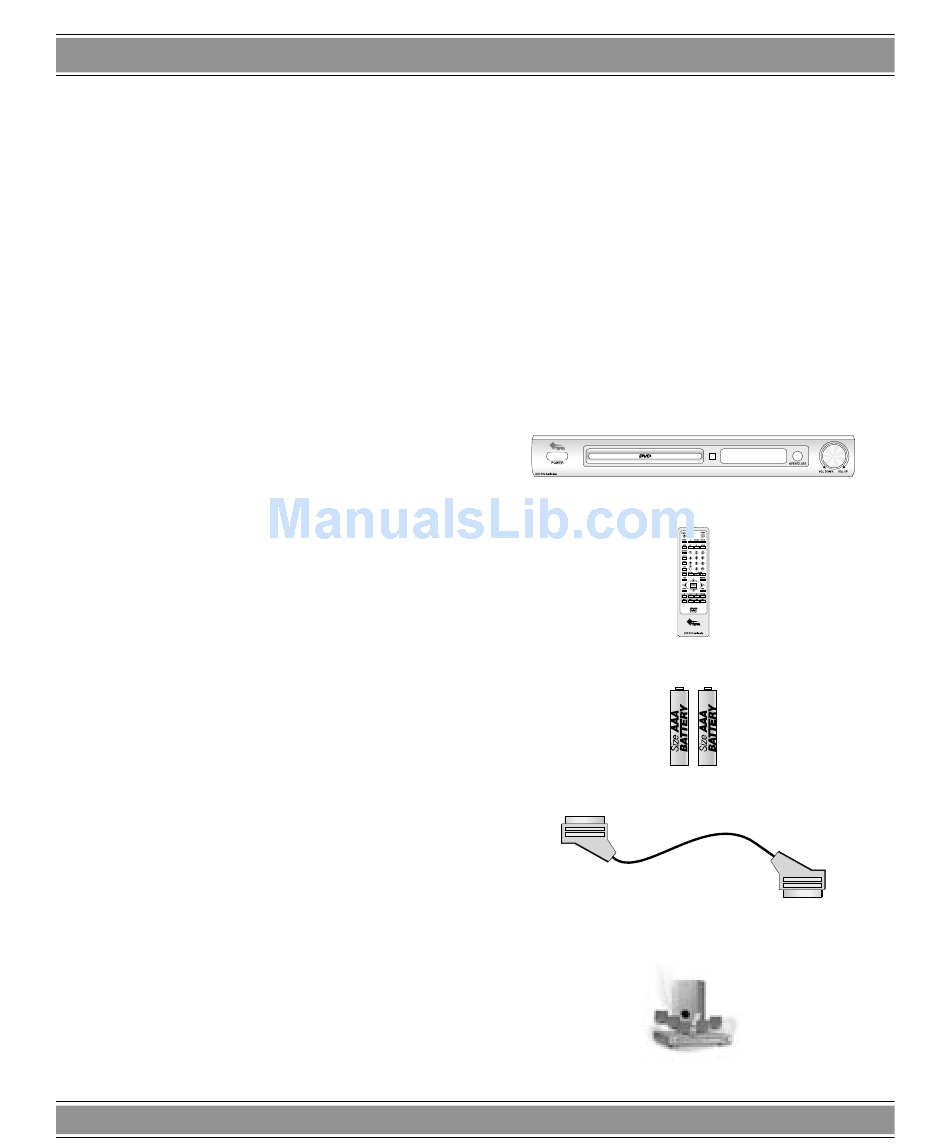

PACKAGE CONTENTS

the DVD carton. If items are missing, please promptly re-

turn this unit to the retailer for an exchange.

This DVD player offers perfect slow motion scans in the

This DVD player can control the volume of analog audio

Please verify that the following items are included within

DVD Player x1

Remote Control Unit x1

AAA Batteries x2

SCART Cable x1

DVD LaScala

Przed oddaniem odtwarzacza do reklamacji proszę sprawdzić jakość nośnika DVD lub CD.

Porysowane albo źle nagrane płyty mogą powodować nieprawidłowe działanie urządzenia.

Najszybszą metodą rozwiązania wielu problemów jest kontakt z naszym serwisem.

tel: (022) 332 34 63 – od poniedziałku do piątku w godz. 9.00-17.00

Producent zastrzega sobie możliwość wprowadzenia zmian w specyﬁ kację produktu bez uprzedzenia.

User Manual x1

MODEL: DVD-003

Instrukcja obsługi

User Manual

Aby zapewnić prawidłową obsługę sprzętu

zapoznaj się dokładnie z instrukcją

i zachowaj ją na przyszłość.

To ensure proper use of this product

please read this User Manual carefully

and keep this manual for further reference.

Table of Contents

Need help?

Do you have a question about the DVD-004 LaScala and is the answer not in the manual?

Questions and answers

Summary of Contents for Manta DVD-004 LaScala

Page 1: User Manual
DVD-004 LaScala User Manual Multi-Speed Slow Motion Forward/Reverse Scan This DVD player offers perfect slow motion scans in the following speeds: X1/2, X1/4, and X1/8. FEATURES Volume Control of Analog Audio Output This DVD player can control the volume of analog audio Compatible With DVD, Super VCD, VCD, output from remote control.
Page 2 DVD-004 LaScala Speaker x6 Unit Placement  Do not place this unit in locations with: – Vibrations – High humidity PRECAUTIONS – Poor ventilation – Direct sunlight – Extremely high or low temperatures Please read the following carefully to get the best and ...
Page 3: Disc Care
DVD-004 LaScala DISC CARE Disc Usage  Please hold all discs by their edges or the center opening as shown below. Do not touch the shiny sur- face of the discs.  If the disc is very dirty, wipe with a moist soft cloth, then follow with a dry soft cloth.
Page 4: Remote Control Unit
DVD-004 LaScala REMOTE CONTROL UNIT KARAOKE - Switch KARAOKE ON/OFF.  - Used for navigation within a selection menu. TITLE - Enters the title menu for DVD discs. To use the remote control unit to operate the DVD play- ENTER - Conﬁrms selection of an item in the menu.
Page 5: Front Panel /Display Window
DVD-004 LaScala FRONT PANEL Display Window /DISPLAY WINDOW Front Panel POWER Switch - Turn the unit’s power on and off. Disc Tray - Place Compact discs on. Remote Sensor - Accept the operating instruction from the RC Display Window Display operation information.
Page 6: Rear Panel And Connections
DVD-004 LaScala 9. Analog Audio Output Indicator Indicates the audio sound output from analog audio jacks. S-Video Output Terminal You will want to use S-video output with televisions or monitors equipped with an S-video input whenever com- ponent video inputs are not available. To activate the S-video output, you must set the DVD player’s “PREFE-...
Page 7: Initial Setting
DVD-004 LaScala Audio Output Terminals and Connections Down-Mixed Audio Output Terminals (L/R) Use down-mixed (stereo) audio output terminals for connection with your television or other non-Dolby® Di- gital A/V receivers or ampliﬁers. These terminals provide down-mixed Dolby® Digital audio signals for standard 2- channel playback.
Page 8: Pic Mode
DVD-004 LaScala TV DISPLAY 1. 16: 9 (wide screen): Select this item when this unit PIC MODE connects a wide screen television unit. 2. 4:3LB (Letter Box): As for televisions of general si- zes, please select this item. The top and bottom of the television screen will appear black rims in the time of playing wide screen pictures.
Page 9: Osd Language
DVD-004 LaScala OSD LANGUAGE SCREEN SAVER When this DVD player is idle (after about 1 minutes of inactivity), the screen saver can be activated to prolong the You can select the language for the setup menu or the TV monitor’s life.
Page 10: Cntr Delay
DVD-004 LaScala CENTER CNTR DELAY Adjust the delay time of CENTER output. Set the CENTER output ON/OFF. (Setting to “ON” for Note: Please set the “CENTER” item to ON ﬁrst. CNTR DELAY) REAR DELAY REAR Adjust the delay time of REAR output.
Page 11: Audio Setup
DVD-004 LaScala AUDIO SETUP DUAL MONO There are ﬁve available settings: AUDIO OUT You can choose to send the player’s audio signals to an external receiver using the following outputs: There are four available modes: STEREO, L-MONO, R- MONO, and MIX-MONO.
Page 12: Linear Pcm Setup
DVD-004 LaScala LINEAR PCM SETUP NOTES: Pressing the [STOP] button once only pause the playback, to stop the playback completely by pressing [STOP] twice. This option sets the audio output format sent using the unit’s coaxial digital audio output. TV TYPE Linear PCM OUT –...
Page 13 DVD-004 LaScala NOTES: SCART output and S-Video output cannot be DISC MENU used simultaneously. AUDIO This unit supports three DISC MENU languages. This unit supports three audio selections, as shown be- low, for your preferred audio setting. PARENTAL SUBTITLE Functions to limit the playback of some discs that con- tain mature scenes.
Page 14: On-Screen Display (Osd)
DVD-004 LaScala DEFAULTS NOTES: Use “3308” to override the forgotten pas- sword. PASSWORD When you select “RESET”, all the initial settings will be restored to the default setting. SMARTNAVI The password is a 4-digit number. When you want to change the password, select “CHANGE” as shown below.
Page 15: Basic Operation Of Playback
DVD-004 LaScala Mode 1 1. SINGLE ELAPSED 2. SINGLE REMAIN When the [OPEN/CLOSE] button is pressed, the OSD shows: the status of the pressed button and some special Logoes are displayed on the screen. Mode 2 Shows the playback information of a movie or title.
Page 16: Skip Playback
DVD-004 LaScala 3. Place a disc onto the tray and make sure that it is – PBC OFF or Audio CD Press the [NEXT] or [PREV] placed squarely on the tray. button will skip to the next or previous track of VCD or Audio CD.
Page 17: Slow Motion Playback
DVD-004 LaScala | 1 | 3 1 4 – When the [PLAY/PAUSE] button is pressed during – When the [PLAY/PAUSE] button is pressed during slow forward/reverse scan, normal playback will be fast forward/reverse scan, normal playback will be resu- resumed.
Page 18: Advanced Operation Of Playback
DVD-004 LaScala ADVANCED SET A SET B OPERATION OF PLAYBACK REPEATED Playback PROGRAM Playback TITLE/CHAPTER Repeat Here the program playback function is only available for When the [REPEAT] button is pressed, the repeated Audio CD, or a VCD with PBC off.
Page 19: Multi-Angle Playback
DVD-004 LaScala – When the [ANGLE] button is pressed, the angle for DVD TITLE MENU playback will change in cycles among the available angle numbers. ANGLE 1/3 ANGLE 2/3 – Use the [] [] [] [] buttons to control the direc-...
Page 20: Dvd Search Functions
DVD-004 LaScala DVD Search Functions English Subtitle Chinese Subtitle During a DVD playback, pressing the [TIME] button can enable the search function. The OSD will show three se- arch methods after pressing [TIME] button one time and two times. TITLE and CHAPTER search...
Page 21: Digit Buttons
DVD-004 LaScala VCD PLAYBACK CONTROL (PBC) kinds rear effect or set up your personal rear effect: Standard, Classic, Jazz, Rock, Pop, Ballad, Dance This function is only available for Video-CD version 2.0 or personal. or higher. The PBC operation may differ by disc, therefore, refer to the instructions for each disc.
Page 22: Troubleshooting
DVD-004 LaScala Picture not Suit TV Screen – Change “TV SCREEN” setting in DVD Setup Menu to suit your television. SOUND No Sound – Press [KARAOKE] key of the remote control to open – Check the connections. Karaoke function. – Turn on the switch on the MIC.
Page 23: Specifications
DVD-004 LaScala Speciﬁcations Wavelength: 650nm Signal System: PAL/ AUTO/ NTSC Frequency Response: 20Hz~20,000 Hz ±2.5dB Signal to Noisy Ratio: ≥85dB Audio Distortion+Noise: ≤80dB(1KHz) Audio Dynamic Range: ≥85dB(1KHz) Output Audio output (Analog audio) average output: 2V±10%, Load: 10KΩ Audio output (Digital audio) average output: 0.5Vp-p±20%, Load: 75Ω...
