- Page 1 For Quick Start Installation CopperLink™ Model 2160 Series Long Range Ethernet Extender Getting Started Guide Sales Office: +1 (301) 975-1000 Technical Support: +1 (301) 975-1007 E-mail: support@patton.com WWW: www.patton.com Part Number: 07M2160-GS, Rev. C Revised: January 24, 2011...
- Page 2 Patton Electronics Company, Inc. 7622 Rickenbacker Drive Gaithersburg, MD 20879 USA Tel: +1 (301) 975-1000 Fax: +1 (301) 869-9293 Support: +1 (301) 975-1007 Web: www.patton.com E-mail: support@patton.com Trademark Statement The term CopperLink is a trademark of Patton Electronics Company. All other trade- marks presented in this document are the property of their respective owners.
-
Page 3: Table Of Contents
Summary Table of Contents General information ... 17 Applications overview... 22 Hardware installation... 26 Web configuration ... 32 Console and Telnet configuration Contacting Patton for assistance Compliance information ... 100 Specifications ... 102 Port pin-outs ... 105 ... 66 ... 97... -
Page 4: Table Of Contents
Table of Contents Summary Table of Contents Table of Contents ... 4 List of Figures ... 9 List of Tables ... 11 About this guide ... 12 Audience... 12 Structure... 12 Precautions ... 13 Safety when working with electricity Preventing Electrostatic Discharge Damage General observations ...15 Typographical conventions used in this... - Page 5 Model 2160 Series Getting Started Guide Web configuration requirements Console configuration requirements Telnet configuration requirements Web configuration ... 32 Introduction ...34 Setting Up the WMI ...34 TCP/IP setup ...34 System Login ...34 Basic Configuration Options ...35 Operation mode and MGMT port DHCP server ...36 ...37...
- Page 6 Model 2160 Series Getting Started Guide SNMP Administration ...60 Community Pool ...61 Trap Host Pool ...62 Utility Options...62 System Information ...62 Configuration Tool ...63 Upgrade ...64 Logout ...64 Restart ...65 Console and Telnet configuration Introduction ...68 Log in to the console interface Log in using Telnet ...68 Interface commands...
- Page 7 Model 2160 Series Getting Started Guide MGMT ...84 DHCP ...84 DHCP Server ...85 DHCP Fixed Host ...85 DNS Proxy ...86 Host Name ...86 Factory Default ...86 Status Command Menu ...87 LINE Status ...87 Interface Status ...87 Show Command Menu ...88 Write Command ...88 Reboot...
- Page 8 Model 2160 Series Getting Started Guide EMC compliance: ...101 Radio and TV interference (FCC Part CE Declaration of Conformity ...101 Authorized European Representative Specifications ... 102 Line Connector ...103 Line Modulation ...103 Ethernet Connector...103 Protocols...103 VLAN Support...103 QoS Support ...103 Management Connector...103 Management...
-
Page 9: List Of Figures
List of Figures Model 2160 ................18 Model 2160 front panel LEDs . - Page 10 Model 2160 Series Getting Started Guide Main screen for authorized users ............71 Main menu for unauthorized users .
-
Page 11: List Of Tables
List of Tables General conventions ..............16 Front panel LEDs . -
Page 12: About This Guide
About this guide This guide describes the CopperLink™ Model 2160 hardware, installation and basic configuration. Audience This guide is intended for the following users: • Operators • Installers • Maintenance technicians Structure This guide contains the following chapters and appendices: •... -
Page 13: Precautions
Model 2160 Series Getting Started Guide Precautions Notes, cautions, and warnings, which have the following meanings, are used throughout this guide to help you become aware of potential problems. sonal injury. are intended to prevent situations that could result in property damage or impaired functioning. -
Page 14: Safety When Working With Electricity
Model 2160 Series Getting Started Guide Safety when working with electricity The Model 2160 contains no user serviceable parts. The equipment shall be returned to Patton Electronics for repairs, or repaired by qualified service per- sonnel. Opening the Model 2160 case will void the warranty. WARNING Mains Voltage: Do not open the case the when the power cord is attached. -
Page 15: Preventing Electrostatic Discharge Damage
Model 2160 Series Getting Started Guide Preventing Electrostatic Discharge Damage When starting to install interface cards place the interface card on its shielded plastic bag if you lay it on your bench. Electrostatic Discharge (ESD) can damage equipment and impair electrical circuitry. It occurs when electronic printed circuit cards are improperly handled and can result in complete or intermittent failures. -
Page 16: Typographical Conventions Used In This Document
Model 2160 Series Getting Started Guide Typographical conventions used in this document This section describes the typographical conventions and terms used in this guide. General conventions The procedures described in this manual use the following text conventions: Convention Indicates a cross-reference hyperlink that points to a figure, graphic, table, or sec- Garamond blue type tion heading. -
Page 17: General Information
Chapter 1 General information Chapter contents Model 2160 overview ...18 Model 2160 front panel...19 LED descriptions ...19 Model 2160 rear panel ...20 Port descriptions ...20 Reset button ...21 Ground terminal ...21... -
Page 18: Model 2160 Overview

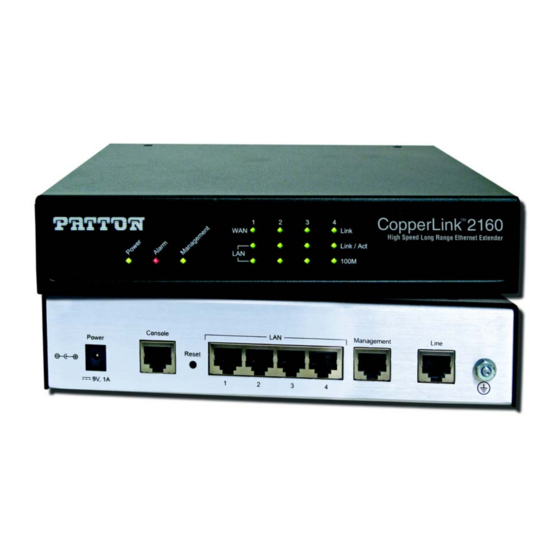

Model 2160 Series Getting Started Guide Model 2160 overview The Patton CopperLink™ Model 2160 simplifies and provides cost effective network extension by utilizing pre-existing twisted pair infrastructure enables service providers to offer broadband or data backhaul services to businesses, governments, and various institutions over existing last-mile, copper infrastructure. Today, more than ever, operators are finding the business case for leveraging their existing copper networks to be highly attractive from an ROI and initial investment perspective over fiber roll-outs. -
Page 19: Model 2160 Front Panel
Model 2160 Series Getting Started Guide Model 2160 front panel LED descriptions The front panel LEDs display the status of the power, system, Ethernet ports, and Line port. the front panel LED indicators and DIAG WAN (1-4) LINK LAN (1-4) LINK/ACT LAN (1-4)100M Model 2160 front panel table 2... -
Page 20: Model 2160 Rear Panel
Model 2160 Series Getting Started Guide Model 2160 rear panel Port descriptions The CopperLink™ Model 2160 rear panel ports are shown in DC 9V CONSOLE Power Reset button Console RS-232 port Port DC 9V Console (RS-232 control port) LAN (LAN Ethernet Ports 1-4) MGMT LINE Note... -
Page 21: Reset Button
Model 2160 Series Getting Started Guide Reset button • To restart the unit with the current startup configuration—Press for less than 1 second and release the Reset button. The Model 2160 will restart with the current startup configuration. • To restart the unit with factory default configuration—Press the Reset button for 5 seconds until the Power LED starts blinking. -
Page 22: Applications Overview
Chapter 2 Applications overview Chapter contents Introduction ...23 Typical application ...23 Distance charts ...24 Distance Chart 2160 Series – Standard Setting Distance Chart 2160 Series – High Speed Setting ...24 ...25... -
Page 23: Introduction
Model 2160 Series Getting Started Guide Introduction The Patton CopperLink™ Model 2160 simplifies and provides cost effective network extension by utilizing pre-existing twisted pair infrastructure enables service providers to offer broadband or data backhaul services to businesses, governments, and various institutions over existing last-mile, copper infrastructure. Today, more than ever, operators are finding the business case for leveraging their existing copper networks to be highly attractive from an ROI and initial investment perspective over fiber roll-outs. -
Page 24: Distance Charts
Model 2160 Series Getting Started Guide Distance charts Distance Chart 2160 Series – Standard Setting Table 4. Distance Chart 2160 Series – Standard Setting Line Rate 2160 2161 2162 2-Wire 4-Wire 8-Wire kbps kbps kbps 1024 1024 2048 1536 3072 1024 2048 4096... -
Page 25: Distance Chart 2160 Series - High Speed Setting
Model 2160 Series Getting Started Guide Distance Chart 2160 Series – High Speed Setting Table 5. Distance Chart Model 2160 Series – High Speed Setting Line Rate 2160 2161 2162 2-Wire 4-Wire 8-Wire kbps kbps kbps 1536 1024 2048 1024 2048 4096 1536... -
Page 26: Hardware Installation
Chapter 3 Hardware installation Chapter contents Introduction ...27 Planning the installation...27 Network diagram ...28 IP related information ...28 AC Power Mains ...28 Location and mounting requirements Installing the Model 2160 ...29 Unpacking the Model 2160 Connecting cables ...29 Grounding the Model 2160 and connecting power Configuring the Model 2160...31 Web configuration requirements... -
Page 27: Introduction
Model 2160 Series Getting Started Guide Introduction This chapter contains information for planning the installation of the Model 2160 with the following installa- tion procedures: • “Unpacking the Model 2160” • “Connecting cables” on page 29 describes how to install the port cables •... -
Page 28: Network Diagram
Model 2160 Series Getting Started Guide Network diagram Draw a network overview diagram that displays all neighboring IP nodes, connected elements and telephony components. Figure 5 RAID Drive Server DC 9V CONSOLE Desktop PC IP related information Before you can set up the basic IP connectivity for your Model 2160 series you should have the following information: •... -
Page 29: Location And Mounting Requirements
Model 2160 Series Getting Started Guide Note When setting up your Model 2160 you must consider cable-length limitations and potential electromagnetic interference (EMI) as defined by the applicable local and international regulations. Ensure that your site is properly prepared before beginning installation. Location and mounting requirements The Model 2160 is intended to be placed on a desktop or similar sturdy, flat surface that offers easy access to the cables. -
Page 30: Grounding The Model 2160 And Connecting Power
Model 2160 Series Getting Started Guide Grounding the Model 2160 and connecting power In connecting to the power source, it is important to establish a good grounding connection first, then the power connection. Do the following: 1. Assemble a ground wire using #10 AWG wire with green-colored insulation and two ring terminals. Make the wire long enough to reach one of the following earth ground sources: –... -
Page 31: Configuring The Model 2160
Model 2160 Series Getting Started Guide Configuring the Model 2160 There are three different ways you can configure the Model 2160: the serial console, Telnet, or a web browser. Web configuration requirements Make sure that the PC you use for configuration has an Ethernet adapter and TCP/IP installed. The Model 2160 provides a browser interface that allows you to configure and manage the Ethernet Extender. -
Page 32: Web Configuration
Chapter 4 Web configuration Chapter contents Introduction ...34 Setting Up the WMI ...34 TCP/IP setup ...34 System Login ...34 Basic Configuration Options ...35 Operation mode and MGMT port DHCP server ...36 ...37 Review and save basic setup changes Advanced Configuration Options...40 LINE ...40... - Page 33 Model 2160 Series Getting Started Guide SNMP Administration ...60 Community Pool ...61 Trap Host Pool ...62 Utility Options...62 System Information ...62 Configuration Tool ...63 Upgrade ...64 Logout ...64 Restart ...65 4 • Web configuration...
-
Page 34: Introduction
Model 2160 Series Getting Started Guide 4 • Web configuration Introduction The Model 2160 provides a browser interface that allows you to configure and manage the Ethernet Extender. Make sure that the PC you use for configuration has an Ethernet adapter and TCP/IP installed. After you set up the IP address for the 2160, you can access the Ethernet Extender's Web interface applications directly in your browser by entering the IP address. -
Page 35: Basic Configuration Options
Model 2160 Series Getting Started Guide 4 • Web configuration Type the default User name root and default Password root and then click OK. For system security, you should change the user name and password after initial onfiguration. Figure 7. System login screen Basic Configuration Options This section contains information for setting up the operation mode and MGMT port IP, DHCP server, and LAN via the WMI. -
Page 36: Dhcp Server
Model 2160 Series Getting Started Guide 1. From the main menu, click Basic to display the basic installation page. Figure 9. Operation mode and MGMT port setup page 2. For Operation Mode, select the radio button for CPE (Customer Premises Equipment) or CO (Central Office). -
Page 37: Lan
Model 2160 Series Getting Started Guide figuration information to 253 users (max) accessing the Internet in the same time. For example, if the LAN IP address is 192.168.0.1, the IP range of the LAN is 192.168.0.2 to 192.168.0.254. To set up the DHCP Server for the Model 2160: 1. -
Page 38: Lan Setup Page
Model 2160 Series Getting Started Guide 1. Click on Basic from the main menu. Set up the Operation Mode and MGMT port, then click Next. Set up the DHCP Server, then click Next to reach the LAN page. 2. Choose an option for the LAN Type. If you select Disable or Dynamic IP, click Next at the bottom of the screen to save your changes. -
Page 39: Review And Save Basic Setup Changes
Model 2160 Series Getting Started Guide 4 • Web configuration Review and save basic setup changes 1. Once you have entered information on the pages for Operation Mode and MGMT Port, DHCP Server, and LAN, the Basic Setup Review page will display to confirm your changes. Figure 12. -
Page 40: Advanced Configuration Options
Model 2160 Series Getting Started Guide Advanced Configuration Options This section contains information for setting up advanced options for the Model 2160 via the WMI. Advanced setup contains Model 2160 Line, VLAN, QoS and Rate Control parameters. Note The advanced functions are only for advanced users to setup advanced functions. -
Page 41: Tcpam Type
Model 2160 Series Getting Started Guide TCPAM Type TCPAM (Trellis Coded Pulse Amplitude Modulation) is the standard used for line coding. Select the TCPAM type from the drop-down list. Auto is the default option for TCPAM. You can also manually set the TCPAM type. -
Page 42: Vlan
Model 2160 Series Getting Started Guide 4 • Web configuration VLAN Click on VLAN under Advanced on the main menu to reach the VLAN advanced configuration page. Figure 14. VLAN page VLAN (Virtual Local Area Network) allows a physical network to be partitioned into multiple logical net- works. -
Page 43: Vlan Diagram
Model 2160 Series Getting Started Guide VID 10 WAN3 WAN2 WAN1 LAN1 VID 10 Advanced Configuration Options VID 20 WAN4 WAN5 Backbone CopperLink Model 2160 CopperLink“2160 Long Range Ethernet Extender Long Range Ethernet Extender LAN2 LAN3 VID 20 Figure 15. VLAN Diagram 4 •... -
Page 44: 802.1Q Tag-Based Vlan
Model 2160 Series Getting Started Guide 802.1Q Tag-Based VLAN Click on VLAN under Advanced on the main menu to reach the VLAN advanced configuration page. Then, select the radio button for 802.1Q Tag-Based VLAN to display the configuration options. • VID (Virtual LAN ID): A number to identify the VLAN segment. -
Page 45: Configuring 802.1Q Vlan Tagging
Model 2160 Series Getting Started Guide • Tag Protocol Identifier (TPID) is a defined value of 8100 in hex. When a frame has the EtherType equal to 8100, this frame carries the tag IEEE 802.1Q / 802.1P. • User Priority defines the priority level for different classes of traffic. There are 8 possible priority levels, with 0 being the lowest priority level and 7 being the highest level. - Page 46 Model 2160 Series Getting Started Guide ually or dynamically using Generic VLAN Routing Protocol (GVRP). However, if you want a port on this Model 2160 to participate in one or more VLANs, but none of the intermediate network devices nor the host at the other end of the connection supports VLANs, then you should add this port to the VLAN as an untagged port.
-
Page 47: Port-Based Vlan
Model 2160 Series Getting Started Guide 4 • Web configuration Port-Based VLAN Click on VLAN under Advanced on the main menu to reach the VLAN advanced configuration page. Then, select the radio button for Port-Based VLAN to display the configuration options. Figure 19. -
Page 48: Port-Based Qinq
Model 2160 Series Getting Started Guide Port-Based QinQ Click on VLAN under Advanced on the main menu to reach the VLAN advanced configuration page. Then, select the radio button for Port-Based QinQ to display the configuration options. • PVID (Port VID): An untagged member of the default VLAN. Select from 1 to 4094. •... -
Page 49: Quality Of Service (Qos)
Model 2160 Series Getting Started Guide Quality of Service (QoS) Quality of Service (QoS) refers to both a network's ability to deliver data with minimum delay, and the net- working methods used to control the use of bandwidth. Without QoS, all traffic date is equally likely to be dropped when the network is congested. -
Page 50: Port Based Priority
Model 2160 Series Getting Started Guide Port Based Priority Click on QoS under Advanced on the main menu to reach the QoS advanced configuration page. Then, select the radio button for Port Based Priority to display the configuration options. In the Port Based Priority table, select the ports that the port-based priority rule should be applied. There six ports to choose from: LAN1, LAN2, LAN3, LAN4, line and Sniffing. -
Page 51: Vlan Tag Priority
Model 2160 Series Getting Started Guide 4 • Web configuration VLAN Tag Priority Click on QoS under Advanced on the main menu to reach the QoS advanced configuration page. Then, select the radio button for VLAN Tag Priority to display the configuration options. Figure 24. -
Page 52: Wrr Scheduling Configuration Example
Model 2160 Series Getting Started Guide Priority Level 0 (default) In the Scheduling Configuration table, you can set up the type of QoS operation from 1 to 3. You can also set up the Queue Weight from 1 to 15. WRR Scheduling Configuration Example. -
Page 53: Ip Dscp Priority
Model 2160 Series Getting Started Guide IP DSCP Priority Differentiated Services Overview. Differentiated Services (DiffServ) is a class of service (CoS) model that enhances best-effort Internet services by differentiating traffic by users, service requirements and other criteria. Packets are specifically marked, allowing network nodes to provide different levels of service, as appropriate for video playback, voice calls or other delay-sensitive applications, via priority queuing or bandwidth allocation. -
Page 54: Bits In The Dscp Field
Model 2160 Series Getting Started Guide Bit 0 Bit 1 Bit 2 Precedence Bit 3 Bit 4 Bit 5 – – – – – – Throughput – – Throughput – – – – The standardized DiffServ field of the packet is marked with a value so that the packet receives a particular for- warding treatment at each network node. -
Page 55: Configuring Dscp Options
Model 2160 Series Getting Started Guide 4 • Web configuration Configuring DSCP Options. Click on QoS under Advanced on the main menu to reach the QoS advanced configuration page. Then, select the radio button for IP DSCP Priority to display the configuration options. Figure 28. -
Page 56: Rate Control
Model 2160 Series Getting Started Guide 4 • Web configuration Rate Control Click on Rate Control under Advanced on the main menu to reach the Rate Control configuration page. Figure 29. Rate Control page Limiting bandwidth to specific users and ports helps control network congestion, ensure high performance, create efficient networks, and prevent a small number of users from monopolizing network bandwidth. -
Page 57: Status Options
Model 2160 Series Getting Started Guide 4 • Web configuration Status Options This section contains information for monitoring status options for the Model 2160 via the WMI. The Status menu contains LINE, MGMT, and LAN parameters. LINE Status The LINE Status includes information for the run-time device status, mode, Bitrate and Performance infor- mation such as SNR margin, atteunation and CRC error count. -
Page 58: Lan Status
Model 2160 Series Getting Started Guide 4 • Web configuration LAN Status The LAN Status page displays information about a LAN port. The system will allow you to select which LAN port to view. Figure 33. LAN Status page Administration Options This section allows you to conifugre administration options for Security and Simple Network Management Protocol (SNMP). -
Page 59: User Profiles
Model 2160 Series Getting Started Guide User Profiles For better security, change the Supervisor ID and Supervisor Password for the Model 2160. If you don't set them, all users will be able to access the Model 2160 using the default Supervisor ID and Supervisor Password ,which is root. -
Page 60: Snmp Administration
Model 2160 Series Getting Started Guide 4 • Web configuration A configuration of 0.0.0.0 will allow all hosts on Internet or LAN to access the Model 2160. If you leave the trusted host list completely blank, you will block all PCs on the WAN from accessing the Model 2160. On the other hand, only PCs in the LAN can access the Model 2160. -
Page 61: Community Pool
Model 2160 Series Getting Started Guide Community Pool An SNMP community is a group of devices and management stations running SNMP. It helps define where information is sent. The community name is used to identify the group. A SNMP device or agent may belong to more than one community. -
Page 62: Trap Host Pool
Model 2160 Series Getting Started Guide Trap Host Pool In the table of current trap host pool, you can set up the trap host. SNMP trap is an informational message sent from an SNMP agent to a manager. It is a management station (SNMP application) that receives traps. If you don’t define a trap host pool, then no traps are issued. -
Page 63: Configuration Tool
Model 2160 Series Getting Started Guide You can check the MCSV, Software Version, Chipset, Firmware Version, Host Name and System Up Time. The System Up Time item let you know how long the Model 2160 has been running since powering up. Configuration Tool The configuration tool has three options: Load Factory Default, Restore Configuration, and Backup Config- uration. -
Page 64: Upgrade
Model 2160 Series Getting Started Guide 4 • Web configuration Upgrade You can update the firmware of Model 2160 using the Upgrade function. Click Upgrade in the Utility menu. Figure 42. Upgrade page Type the path and file name of the Firmware file you wish to upload to the Model 2160 in text box. Or, you can also click Browse to locate the file. -
Page 65: Restart
Model 2160 Series Getting Started Guide Restart To reboot the Model 2160, click Restart in the Utility menu, then click the Restart button. The following screen displays: Utility Options Figure 44. Restart page Figure 45. Restart page 4 • Web configuration... -
Page 66: Console And Telnet Configuration
Chapter 5 Console and Telnet configuration Chapter contents Introduction ...68 Log in to the console interface Log in using Telnet ...68 Interface commands ...68 Window structure ...69 Main Menu Tree ...70 Menu tree for authorized users Menu tree for unauthorized users Enable Command Menu ...72 Setup Command... - Page 67 Model 2160 Series Getting Started Guide Factory Default ...86 Status Command Menu ...87 LINE Status ...87 Interface Status ...87 Show Command Menu ...88 Write Command ...88 Reboot Command...89 Ping Command ...89 Administration Command Menu User Profile ...90 Modify/Add User ...90 Security ...91 Telnet TCP Port...
-
Page 68: Introduction
Model 2160 Series Getting Started Guide Introduction This chapter provides information for configuring the Model 2160 by using the serial console with Telnet. Log in to the console interface The console port is a RJ-48C connector that provides a connection to a PC for monitoring and configuring the Model 2160. -
Page 69: Window Structure
Model 2160 Series Getting Started Guide The Model 2160 uses a menu-driven interface for serial console and Telnet management. This interface dis- plays all available commands for configuring the Ethernet Extender. The following figure shows an example of the menu-driven interface. In the menu, scroll up/down by pressing the I / K keys. -
Page 70: Main Menu Tree
Model 2160 Series Getting Started Guide 5 • Console and Telnet configuration Main Menu Tree The commands available in the main menu tree depend on if you have logged in using a supervisor password (authorized user) or not (unauthorized user). An authorized user can access all of the configuration commands in the subdirectories using the enable command. -
Page 71: Menu Tree For Unauthorized Users
Model 2160 Series Getting Started Guide 5 • Console and Telnet configuration Figure 48. Main screen for authorized users Menu tree for unauthorized users Unauthorized users may access the following configuration commands for the Model 2160. Figure 49. Main menu for unauthorized users Figure 50. -
Page 72: Enable Command Menu
Model 2160 Series Getting Started Guide Enable Command Menu The enable command menu lists commands for setting up the Model 2160. Move the cursor “ >>” to enable and press Enter. Type the supervisor password, which is root. ---------------------------------------------------------------------- Command: enable <CR> Message: Please input the following information. -
Page 73: Setup Command Menu
Model 2160 Series Getting Started Guide Setup Command Menu The setup command menu lists commands for initially configuring the Model 2160. Move the cursor “ >>” to setup in the main menu and press Enter. When you enter the setup command, the following menu displays: >>... -
Page 74: Mode
Model 2160 Series Getting Started Guide Mode There are two types of Line mode: • STU-C: Central Office (CO) terminal • STU-R: Customer Premise Equipment (CPE) Link Select the line type for your model. Line type means how many wires you want to use on the CopperLink con- nection. -
Page 75: Line Probe
Model 2160 Series Getting Started Guide Line Probe For adaptive mode applications, set the Line Probe to Enable. The Model 2160 will adapt the data rate accord- ing to the line status. For all other applications, set the Line Probe to Disable. Clear Use the clear command to reset the CRC error count. -
Page 76: Vlan
Model 2160 Series Getting Started Guide VLAN Virtual LAN (VLAN) is defined as a group of devices on one or more LANs that are configured so that they can communicate as if they were attached to the same wire, when in fact they are located on a number of dif- ferent LAN segments. -
Page 77: Q Vlan
Model 2160 Series Getting Started Guide 802.1Q VLAN. To modify the VLAN rule, move the cursor to modify and press Enter. ----------------------------------------------------------------------------- Command: setup vlan modify <1~8> <0~4094> <string> Message: Please input the following information. VLAN table entry index <1~8>: 1 VID value (ENTER for default) <1>: 10 VLAN port membership (ENTER for default) <111111>: -----------------------------------------------------------------------------... -
Page 78: Port-Based Vlan
Model 2160 Series Getting Started Guide ----------------------------------------------------------------------------- Command: setup vlan link_mode <1~6> <Access|Trunk> Message: Please input the following information. Port index <1~6>: 1 Port link type (TAB Select) <Access>: ----------------------------------------------------------------------------- Table 22 shows the options available within the 802.1Q Tag VLAN command menu: Access Trunk PVID... -
Page 79: Qos
Model 2160 Series Getting Started Guide Quality of Service (QoS) refers to both a network's ability to deliver data with minimum delay, and the net- working methods used to control the use of bandwidth. Without QoS, all traffic date is equally likely to be dropped when the network is congested. -
Page 80: Queue Weight
Model 2160 Series Getting Started Guide Queue Weight This setting configures the weight value for each queue. ----------------------------------------------------------------------------- Command: setup qos qweight <0~3> <1~15> Message: Please input the following information. Queue index <0~3>: 0 Weight value (ENTER for default) <1>: 1 ----------------------------------------------------------------------------- For example, the default values are shown below: [ setup qos qweight 0 1]... -
Page 81: Port-Based Priority Qos
Model 2160 Series Getting Started Guide • SP services queues based on priority only. As traffic comes into the Model 2160, traffic on the highest prior- ity queue, Q3 is transmitted first. When that queue empties, traffic on the next highest-priority queue, Q2 transmitted until Q2 empties, and then traffic is transmitted on Q1 and so on. -
Page 82: Ip Dscp Priority Qos
Model 2160 Series Getting Started Guide Priority Level 0 (default) For example, you can set the Model 2160 to use Weighted Round-Robin (WRR) queuing (Type 1) that speci- fies a relative weight of each queue. WRR uses a predefined relative weight for each queue that determines the percentage of s time to services for each queue before moving on to the next queue. -
Page 83: List
Model 2160 Series Getting Started Guide DSCP DSCP Queue Index List Use the list command to view the QoS settings. Rate The rate command menu lists commands for setting the port rate. Move the cursor “ >>” to rate in the setup menu and press Enter. -
Page 84: Mgmt
Model 2160 Series Getting Started Guide MGMT The mgmt command menu lists commands for configuring the IP address and subnet mask for the MGMT port. Move the cursor “ >>” to mgmt in the setup menu and press Enter. The following menu displays: address MGMT IP address and subnet mask >>... -
Page 85: Dhcp Server
Model 2160 Series Getting Started Guide DHCP Server The dhcp command menu lists commands for configuring DHCP settings. Move the cursor “ >>” to dhcp in the setup menu and press Enter. The following menu displays: generic DHCP server generic parameters >>... -
Page 86: Dns Proxy
Model 2160 Series Getting Started Guide DNS Proxy The dns_proxy command allows you to set up three DNS servers for the Model 2160. Move the cursor “ >>” to dns_proxy in the setup menu and press Enter. ---------------------------------------------------------------------- Command: setup dns_proxy <IP> [IP] [IP] Message: Please input the following information. -
Page 87: Status Command Menu
Model 2160 Series Getting Started Guide Status Command Menu The status command menu lists commands for viewing the system status of interfaces on the Model 2160. Move the cursor “ >>” to status in the main menu and press Enter. When you enter the status command, the following menu displays: >>... -
Page 88: Show Command Menu
Model 2160 Series Getting Started Guide Show Command Menu The show command menu lists commands for viewing system and configuration information for the Model 2160. Move the cursor “ >>” to show in the main menu and press Enter. When you enter the show command, the following menu displays: >>... -
Page 89: Reboot Command
Model 2160 Series Getting Started Guide Reboot Command The reboot command restarts the Model 2160. Move the cursor “ >>” to reboot in the main menu and press Enter. ---------------------------------------------------------------------- Command: reboot <CR> Message: Please input the following information. Do you want to reboot? (y/n): y ---------------------------------------------------------------------- Type “y”... -
Page 90: Administration Command Menu
Model 2160 Series Getting Started Guide Administration Command Menu The admin command menu lists commands for modifying user profiles, Telnet access, Simple Network Man- agement Protocol (SNMP), and supervisor information (username and password). Move the cursor “ >>” to admin in the main menu and press Enter. When you enter the admin command, the following menu displays: user Manage user profile... -
Page 91: Security
Model 2160 Series Getting Started Guide There are two UI modes for setting up the Model 2160, command and menu mode. The menu mode uses a menu-driven interface. The command mode uses line commands. (Command mode is not covered in this manual). -
Page 92: Snmp
Model 2160 Series Getting Started Guide ----------------------------------------------------------------------------- Command: admin security ip_pool modify <1~16> <ip> Message: Please input the following information. Client address pool entry number <1~16>: 1 Client IP address (ENTER for default) <0.0.0.0>: ----------------------------------------------------------------------------- You can configure up to sixteen entries for legal address pools. Use the clear command to remove a legal client IP address from any pool entry number. -
Page 93: Trap Host
Model 2160 Series Getting Started Guide ----------------------------------------------------------------------------- Command: ... 2 edit <Disable|Enable> <string> <Read_Only|Read_Write|Denied> Message: Please input the following information. Validate (TAB Select) <Enable>: Enable Community (ENTER for default) <private>: Access right (TAB Select) <Denied>: ----------------------------------------------------------------------------- You can set up the following options: •... -
Page 94: Supervisor Password And Id
Model 2160 Series Getting Started Guide You can set up the following options: • Version: Set to Disable, Version 1 or Version 2. • Trap host IP address: Enter the dtrap host IP address. • Community: Enter the community password. Use the list command to view all SNMP trap host entries. -
Page 95: Utility Command Menu
Model 2160 Series Getting Started Guide Utility Command Menu Model 2160 has three utility tools embedded in the firmware: upgrade, backup and restore. You can update the new firmware via TFTP upgrade tools, backup the configuration via the TFTP backup tool and restore the configuration via the TFTP restore tool. -
Page 96: Exit Command
Model 2160 Series Getting Started Guide Exit Command To log out of the system without saving your changes, move the cursor “ >>” to exit in the main menu and press Enter. enable Modify command privilege setup Configure system status Show running system status show View system configuration... -
Page 97: Contacting Patton For Assistance
Chapter 6 Contacting Patton for assistance Chapter contents Introduction ...98 Contact information...98 Warranty Service and Returned Merchandise Authorizations Warranty coverage ...98 Out-of-warranty service Returns for credit ...99 Return for credit policy RMA numbers ...99 Shipping instructions (RMAs)...98 ...99 ...99 ...99... -
Page 98: Introduction
Model 2160 Series Getting Started Guide Introduction This chapter contains the following information: • “Contact information”—describes how to contact Patton technical support for assistance. • “Warranty Service and Returned Merchandise Authorizations Model 2160 warranty and obtaining a return merchandise authorization (RMA). Contact information Patton Electronics offers a wide array of free technical services. -
Page 99: Out-Of-Warranty Service
Model 2160 Series Getting Started Guide Out-of-warranty service Patton services what we sell, no matter how you acquired it, including malfunctioning products that are no longer under warranty. Our products have a flat fee for repairs. Units damaged by lightning or other catastro- phes may require replacement. -
Page 100: Compliance Information
Appendix A Compliance information Chapter contents Compliance ...101 EMC compliance: ...101 Radio and TV interference (FCC Part CE Declaration of Conformity Authorized European Representative 15)...101 ...101 ...101... -
Page 101: A Compliance Information
Model 2160 Series Getting Started Guide Compliance EMC compliance: • FCC Part 15, Class A • EN55022, Class A • EN55024 Radio and TV interference (FCC Part 15) This equipment generates and uses radio frequency energy, and if not installed and used properly—that is, in strict accordance with the manufacturer's instructions—may cause interference to radio and television recep- tion. -
Page 102: Specifications
Appendix B Specifications Chapter contents Line Connector ...103 Line Modulation ...103 Ethernet Connector...103 Protocols...103 VLAN Support...103 QoS Support ...103 Management Connector...103 Management Interface...104 Front Panel Indicators ...104 Power Supply ...104 Environment ...104 Dimensions ...104 Weight ...104... -
Page 103: Line Connector
Model 2160 Series Getting Started Guide B • Specifications Line Connector Shielded RJ-45 Line Modulation TC-PAM 32 TC-PAM 16 Ethernet Connector 4 x 8-position shielded RJ-45 Auto-sensing 10/100Base-TX with half or full-duplex operation LAN Protocols 802.1d Transparent Bridging 2K MAC address learning bridge VLAN Support IEEE 802.1q VLAN Tagging Port Based VLAN, up to 4K VLANs... -
Page 104: Management Interface
Model 2160 Series Getting Started Guide B • Specifications Management Interface Web based GUI CLI for local and console access; password protected; SNMP v1/v2 (RFC 1157/1901/1905) agent and MIB (RFC 1213/1493) EFM OAM (IEEE 802.3af) Software upgradeable via web-browser/TFTP Front Panel Indicators Power, Alarm, Diagnostic, WAN Link (x4), Ethernet Link (x4), Ethernet 100M (x4) Power Supply AC: Universal Input (UI)—90–240 VAC (50~60Hz) -
Page 105: Port Pin-Outs
Appendix C Port pin-outs Chapter contents Introduction ...106 Console port...106 Ethernet ...107 Line (CopperLink) ...107... -
Page 106: C Port Pin-Outs
Model 2160 Series Getting Started Guide Introduction This section provides pin-out information for the ports of the Model 2160. Console port Configuration settings: 9600 bps, 8 bits, no parity, 1 stop bit, no flow control Note N/C means no internal electrical connection. Introduction 8–RTS (N/C) 7–CTS (N/C) -
Page 107: Ethernet
Model 2160 Series Getting Started Guide Ethernet Note Pins not listed are not used. Line (CopperLink) Ethernet Table 34. RJ45 socket 10/100Base-T Signal Table 35. RJ45 socket CopperLink Signal TRD0+ 2160 TRD0- TRD1+ TRD1- TRD2+ TRD2- TRD3+ TRD3- C • Port pin-outs 2161 2162...
