This is a Class A device and is intended for use in a
light industrial environment. It is not intended nor
approved for use in an industrial or residential
environment.
Part# 07M2172-UM
Doc# 03333U2-001
Rev. B
Revised 12/4/08
An ISO-9001Certified
Company
USER
MANUAL

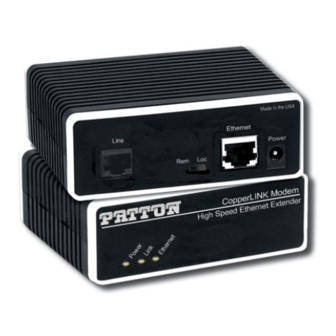

MODEL 2172
CopperLINK™ High Speed
Ethernet Extenders
SALES OFFICE
(301) 975-1000
TECHNICAL SUPPORT
(301) 975-1007
