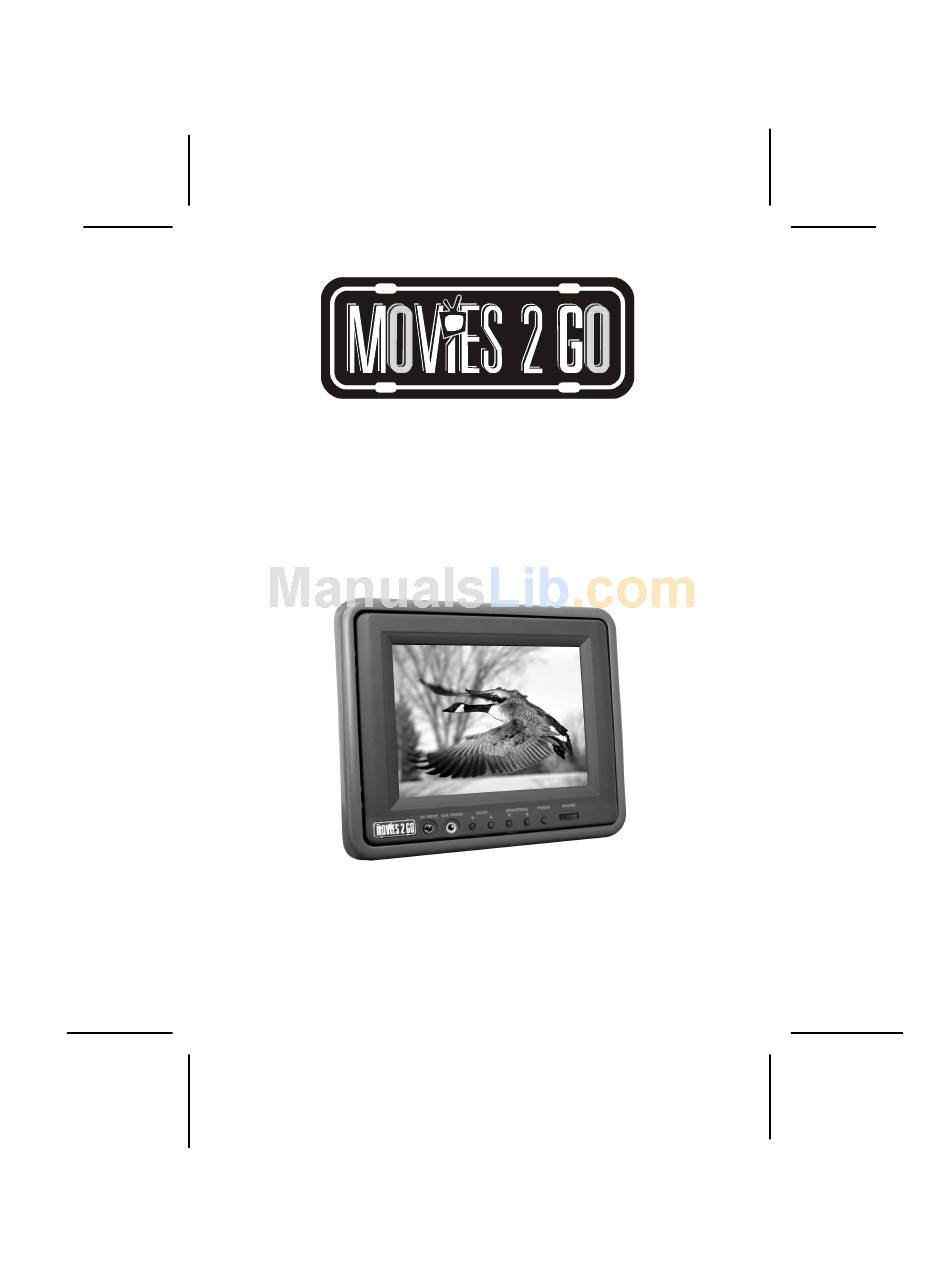

- Page 1 Color TFT LCD Monitor MM56A Owner’s Manual 128-6544 1 of 12 Released: 02-11-04...
-
Page 2: Explanation Of Graphic Symbols
EXPLANATION OF GRAPHIC SYMBOLS CAUTION CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSON- The lightning flash with the arrowhead within a triangle is intended to alert tell the user that parts inside the product The exclamation point within a triangle is intended to alert the user that important operating and servicing instructions WARNING:... - Page 3 IMPORTANT An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or naviga- tion. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function then the vehicle is in ‘park’...
-
Page 4: Installation
B. Installation: Front View Top View Clamshell Monitor 1. Installation will vary from vehicle to vehicle, as headrests in vehicles are not standard. 2. This unit is intended for installation by professional installers. 3. The kit consists of the screen assembly, a clam shell housing, a trim ring, 1 key to remove the screen from the housing, and a wiring harness. -
Page 5: Headrest Mounting
Headrest Mounting: Remove the headrest from the vehicle for easi- Monitor est installation. Lay headrest on a flat sur- face. Center trim collar on head- rest as shown. NOTE: Depending on the angle of the headrest, the Trim Ring and housing may be mounted upside down. - Page 6 Using the utility knife, cut the headrest material along the “X” lines. Do not cut the mate- rial along the other lines at this time. This will leave you with an “X” cut as shown. Pull the flaps up and cut the foam beneath the material to the proper depth.
- Page 7 10) Lay the flaps of the headrest ma- terial down into the recess and in- sert the Mounting Tray into the re- cess. Check for fit. If it does not fit properly, you may need to re- move some more foam. NOTE: The Mounting Tray will need to be secured to the headrest, either by using tie straps, screws, etc...
- Page 8 C. Controls/Indicators/Connectors: Front View 1. AUX. Input Jack 2. Earphone Jack 3. Color Adjust Up/Down Buttons 4. Brightness Adjust Up/Down Buttons 5. Power On/Off Button 6. Volume Increase/Decrease Thumbwheel Control 128-6544 8 of 12...
- Page 9 Exploded View HEADREST SHROUD COLOR MONITOR 6. DIN Connectors 7. Signal Cable 8. Black Wire (Ground) 9. Red Wire (+12 Vdc Input) 10. White RCA Jack (Audio Input L) 11. Red RCA Jack (Audio Input R) 12. Yellow RCA Jack (Video Input) HEADREST TRIM 128-6544...
-
Page 10: Operation
D. Operation: 1. Connect the red monitor power input wire (9) to a DC power source (Red = +12 VDC), and the Black wire (8) to ground. 2. Connect the external video source output signal (from VCP, DVD, TV etc.) to the VIDEO IN jack (12). 3. - Page 11 THIS PAGE LEFT BLANK INTENTIONALLY 128-6544 11 of 12...
-
Page 12: Specifications
E. Specifications: Display 5.6” Color TFT LCD Resolution 960 (W) x 234 (H) Lines Active Area 114.2 (W) x 83.5 (H) mm Backlight CCFL Input Signal NTSC/PAL(auto-switch) Composite video signal 1Vp-p/75ohm Lamp Life 10,000 Hours Audio Specifications: Input Impedance 10 K-Ohms Audio Output 0.3 W Maximum Earphone...
