Summary of Contents for Audiovox MMDV70CB

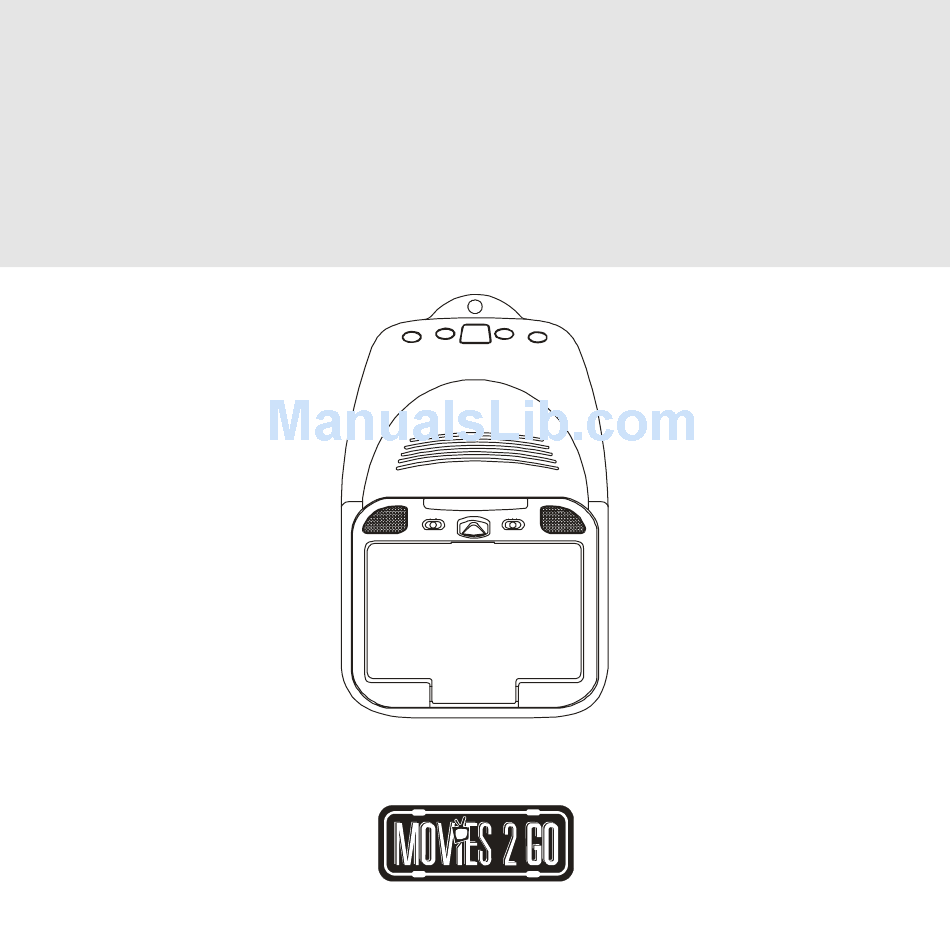

- Page 1 MMDV7OC / MMDV7OC B 7” LCD OVERHEAD MONITOR WITH DVD PLAYER P LAY S TO P P O W ER E JE C T O FF O N O F F A U TO P O W ER D O M E LI G HT OPERATION MANUAL...
-
Page 2: Safety Precaution
An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in ‘park’... -
Page 3: Dvd Player
Congratulations on your purchase of the Movies 2 Go MMDV7OC / MMDV7OC B drop-down Video Monitor with DVD player. The MMDV7OC / MMDV7OC B has been designed to give you and your family many years of video entertainment in the mobile environment. -
Page 4: Controls And Indicators Diagram
CONTROLS AND INDICATORS DIAGRAM PLAY STO P EJEC T PO W E R O FF O N O FF AUTO PO W ER DO M E LI G HT M EN U DO W N... -
Page 5: Main Function Descriptions
MAIN FUNCTION DESCRIPTIONS 1. DVD disc insertion slot. 2. Power Button – For internal DVD player 3. Play Button 4. Eject Button 5. Stop Button 6. MMDV7OC / MMDV7OC B Ventilation opening 7. Infrared Transmitter – Used to transmit audio to wireless headphones. 8. -
Page 6: Remote Control Operation
REMOTE CONTROL OPERATION BATTERY INSTALLATION Before attempting to operate your Remote Control, install the batteries as described below. 1) Turn the Remote Control face down. Using a fingernail, lift the battery cover off. 2) Install two “AAA” batteries as shown. Make sure that proper polarity (+ or –) is observed. -
Page 7: Dvd Function Descriptions
DVD FUNCTION DESCRIPTIONS 1. DISPLAY Button Press to display DVD Disc current information. Pr ess DI SPLAY but t on O nce Tw i ce 3 t i m es 4 t i m es 5 t i m es 6 t i m es 7 t i m es 2. -
Page 8: Scan Forward
6. UP ( ) Button Allows the user to scroll upwards in the menu options. 7. LEFT ( ) Button Allows the user to shift left in the menu options. 8. MENU Button Allows the user to access the main DVD menu. 9. - Page 9 19. REPEAT Button Allows the user to repeat various titles, chapters or tracks of a DVD,CD or MP3 and displays the repeat menu. 20. DOWN ( ) Button Allows the user to scroll downward in the menu options. 21. SETUP Button Allows the user to select the DVD options (Display, OSD Language, Default, Parental Control, Password, Exit Setup).
- Page 10 TURNING THE MMDV7OC / MMDV7OC B ON OR OFF (LCD DISPLAY UNIT & INTERNAL DVD PLAYER) 1. Sliding the screen release lock forward will unlock the LCD screen and drop down slightly. Move the screen downward and pivot it until a comfortable viewing angle is reached.
-
Page 11: Operation
OPERATION OVERHEAD DOME LIGHTS The Dome Lights integrated into the MMDV7OC / MMDV7OC B are controlled by a three position slide switch. Sliding the switch to the ON position will turn the lights ON. The OFF position will prevent the lights from turning ON with the vehicle’s interior lighting, and the auto position will allow the lights to turn ON and OFF with the vehicle’s interior lighting. -
Page 12: Remote Sensor
REMOTE SENSOR The MMDV7OC / MMDV7OC B incorporates an Infrared sensor which relays signals from the remote control to allow the source connected to AV2 to be controlled simply by pointing its remote control at the remote sensor eye. This provides control of auxiliary equipment such as a Video Cassette Player. -
Page 13: Picture Adjustment
PICTURE ADJUSTMENT When watching the program, the quality of the picture can be adjusted to suit your taste. Press the MENU button, the main menu will appear. Then press the DOWN/UP button to select the item you want to adjust. Press the MENU button again to select the item. -
Page 14: Source Select
SOURCE SELECT There are 2 inputs to select from the SOURCE Select Menu: AV1 and AV2. To select the source, highlight SOURCE and press MENU button to enter. Then, press UP / DOWN button to select AV1 or AV2. NOTE : The built in DVD player is source “AV1”. To play the internal DVD source, press the MENU button to select SOURCE SELECT. -
Page 15: Wireless Headphones
WIRELESS HEADPHONES The MMDV7OC / MMDV7OC B includes a built-in infrared transmitter and two pairs of Audiovox wireless headphones (Part Number MMIRHS). The volume can be adjusted with volume control on each headset. The wireless headphones must be used within line of sight from the transmitter, as infrared transmissions, like visible light travel only in a straight line. -
Page 16: Headphone Operation
Battery Installation (Figure 2) 1. Place two alkaline AAA batteries into the Headphone’s battery compartment making sure that the battery polarity is correct. 2. Replace the battery cover. Fi gur e 2 HEADPHONE OPERATION IMPORTANT: To prevent possible hearing damage, Read the following carefully! 1. -
Page 17: Optional Accessories
OPTIONAL ACCESSORIES AV 2 The second video input may be connected to a VCP player, video game system, or other audio / video input. To play the Video 2 source, turn the MMDV7OC / MMDV7OC B ON and press the Menu button on the MMDV7OC / MMDV7OC B to select INPUT SELECT and press the UP/DOWN button until “AV2”... -
Page 18: Dvd Basics
DVD Basics To get the optimum use out of the DVD section, make sure you read this section completely. Regional Coding Both the DVD player and disc are coded by region. These regional codes must match in order for the disc to play. If the codes don’t match, the disc won’t play. This unit’s code is region 1. -
Page 19: Settings And Adjustments
Settings and Adjustments This chapter describes how to set and how to adjust using the on-screen SETUP menu. Using the Setup Menu Using the setup display, you can do the initial setup and set the various outputs. You can also set a language for the on-screen display and the setup display and limit playback by children. - Page 20 Settings for Display Press the SETUP button and select Display. The DISPLAY SETUP allows you to adjust screen setting (aspect ratio) Press to select the appropriate settings. 4 : 3 / P S This displays the wide picture on the screen with a portion of the left & right side removed.
- Page 21 Setting the Language for On-Screen Display Press the SETUP button and using the ( OSD (On-Screen Display) Language Menu The OSD Language Menu allows the user to select the language for the on- screen display. Press language. The user can select either English, French or Spanish for the OSD language.
- Page 22 Settings for Parental (Parental Control) This section of the SETUP Menu allows user to control the content of movie playback from G to ADULT. The Parental Control function allows you to limit viewing to your preference. 1. Use the G (Children) PG 13 NC-17 ADULT (Adult)
- Page 23 Settings for Password (Parental Control Password) Press the SETUP button and select PASSWORD. The PASSWORD SETUP allows you to change the parental control password. Press Enter. NEW PASSWORD Input a new password (4 digits) using numeric buttons OLD PASSWORD Input the old password or the default password (4 digits) CONFIRM PWD Confirm the new password by entering the same new password again.
-
Page 24: Playing Audio Cds
Playing Audio CDs When playing an audio CD, the DISPLAY Banner appears automatically. It displays the current track and the amount of the time for that track playing. Press the DISPLAY button on the remote to change the DISPLAY Banner. The options below show you what happens when you press the DISPLAY button. -
Page 25: Playing Mp3 Discs
Playing MP3 Discs MP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space. CD- R discs that have been encoded in MP3 format can be played on your DVD player. Press the DISPLAY button on the remote to DISPLAY Banner. - Page 26 Selecting Folders and Songs When an MP3 disc is inserted in the player, the screen appears automatically. You can change folders and songs through the menu. The DVD player plays the songs in order they were burned on to the disc. 1.
-
Page 27: Troubleshooting
TROUBLESHOOTING PROBLEM Poor in vehicle radio reception (FM modulator installed) IR sensor inoperative Disc won’t play Play starts, but then stops immediately SOLUTION • Check the condition of the vehicle’s radio antenna. • Verify that the antenna is fully raised. •... - Page 28 TROUBLESHOOTING PROBLEM No sound or distorted sound Can’t advance through a movie The icon ( appears on screen No Picture SOLUTION • Make sure your DVD is connected properly. Make sure all cables are securely inserted into the appropriate jacks. •...
-
Page 29: Specifications
SPECIFICATIONS LCD Backlighting Resolution Pixels Operation Temperature Storage Temperature Expected Backlight life Video Display System Low Level Audio Output Video Output Power Source Edge Light Tube 800 X 480 800 X 480 X 3 0 - 50º C -20 - 70º C 10,000 Hours NTSC / PAL 620 mVp-p... -
Page 30: 12 Month Limited Warranty
AEC (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
