Audiovox Movies2Go MMD154 Owner's Manual

15.4" overhead lcd video monitor with dvd player
Hide thumbs
Table of Contents

Advertisement

Quick Links

MMD154
15.4" OVERHEAD LCD
VIDEO MONITOR
WITH DVD PLAYER
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Movies2Go MMD154 and is the answer not in the manual?

Questions and answers

Related Manuals for Audiovox Movies2Go MMD154

Summary of Contents for Audiovox Movies2Go MMD154

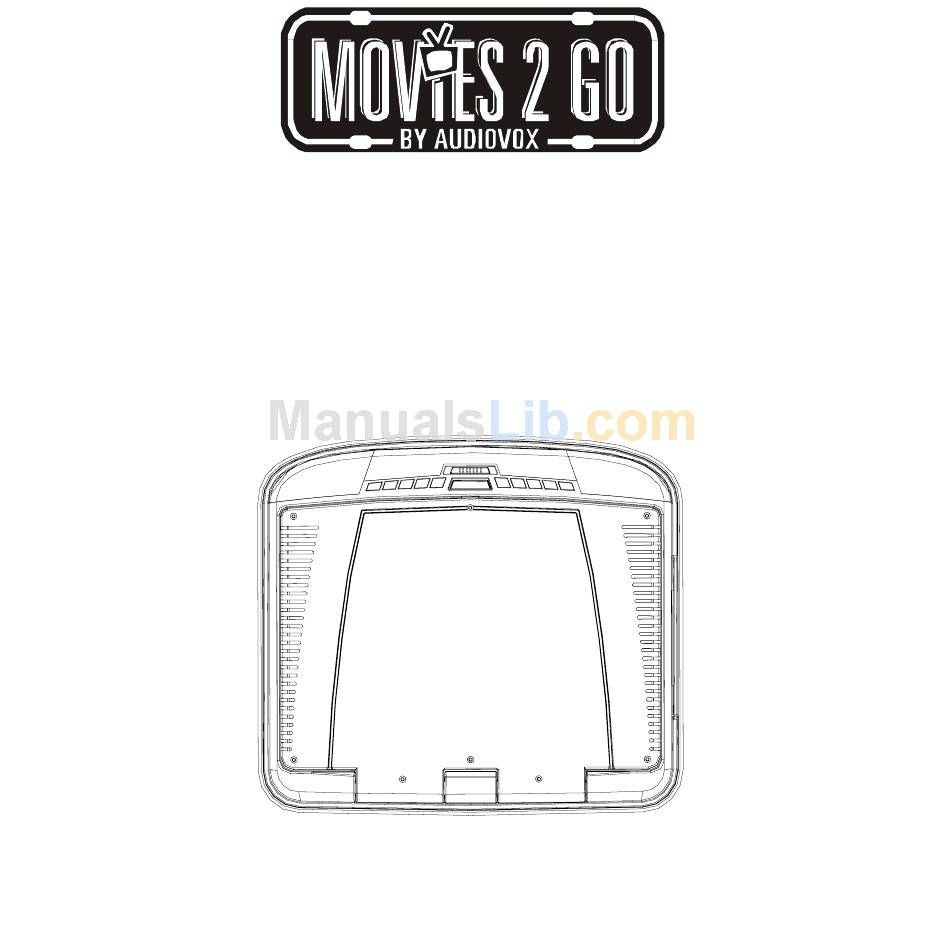

  • Page 1 MMD154 15.4" OVERHEAD LCD VIDEO MONITOR WITH DVD PLAYER Owner’s Manual...

  • Page 2: Important Notice

    An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in “park”...
  • Page 3 Congratulations on your purchase of the Movies 2 Go MMD154 drop-down Video Monitor with DVD Player. The MMD154 has been designed to give you and your family many years of video entertainment in the mobile environment. Please read the directions that follow to familiarize yourself with the product and to ensure that you obtain the best results from your equipment.
  • Page 4 CONTROLS INDICATORS DIAGRAM 2 3 4 5 6 7 8 9 10 1112 13 MMD154...

  • Page 5: Main Function Descriptions

    MAIN FUNCTION DESCRIPTIONS Dome Lights – Provide additional interior illumination. Power ON/OFF Button ( ) – Turn the MMD154 ON and OFF. Menu Button – Source select DVD, AV1 and AV2. AV Source Button – Source select DVD, AV1 and AV2. (-) Button –...

  • Page 6: Remote Control Operation

    Remote Control Operation Initial Use* *When purchased the remote control has a battery installed with a plastic insert to prevent battery discharge. Remove the plastic insert before attempting to use the remote. Battery Replacement 1. Remove the battery holder. Refer to the drawing.

  • Page 7: Operation With Remote Control

    Operation with Remote Control POWER - Press this button to turn the MMD154 “ON” or “OFF” . SETUP - Press to access the setup menu to modify the DVD player settings. MUTE - Press to turn sound on or off. Eject ( ) Button - This button is used to eject the disc.
  • Page 8 Operation with Remote Control (Cont) 16. Zoom - Press to set the zoom for movie viewing. 17. Repeat - Press to repeat the track or the entire disc. 18. Title - Press to view the DVD disc’s title menu. 19. Fast Forward ( 32x speeds.

  • Page 9: Using Your Dvd Player

    Using your DVD player Adjusting the DVD player To open the DVD player 1. Press Open Button to unlock the LCD panel. OPEN BUTTON 2. Swing the DVD player downward to the desired viewing angle. Caution The LCD display opens to a maximum angle of 150° degrees. Do not attempt to open it further.

  • Page 10: Basic Operation

    Basic operation Turning on the player Press the [ ] button on the remote control or on the front panel. The player turns on, and the input source and format are displayed on the screen: Notes: 1. The default is DVD-IN. 2.
  • Page 11 Playing a disc 1. If the input source isn't already set to DVD-IN, press A/V button to change the input source to DVD-IN 2. Insert a disc to DVD into the disc slot on the right of the player. After several seconds, the screen displays the message "loading".
  • Page 12 Changing the audio language during Playback (Multi Audio) 1. Press AUDIO button to change audio track during DVD playback. The current audio language number, the total number of available audio channels (languages) and current language are displayed. 2. If there are multiple languages are available, press AUDIO button again to cycle through the available languages.

  • Page 13: Playing Audio Cds

    Changing Viewing Angle during Playback (Multi-Angle) To change viewing angle: Press ANGLE button to cycle through available viewing Angles during DVD playback. The current angle number and the total number of angles available appear on the screen. 2. Press ANGLE button again to select a different angle, then press it again to exit and return to the normal viewing angle.

  • Page 14: Playing Mp3 Cds

    Playing MP3 CDs MP3 is a format for storing digital audio. An audio track is compressed into the MP3 format with little loss of audio quality, while taking up much less disc space. This player can play CD-R/RW discs that contain music MP3 files.

  • Page 15: System Setup

    4. Press the button to move to the next file. Or press the < 5. Press the button to go to the previous folder or to page up, or press the page down. To repeat a file or folder of an MP3 disc: During MP3 playback, press the REPEAT button to cycle through the available settings: Repeat single---Repeats the current file.
  • Page 16 Note: In Wide mode, normal images are stretched horizontally and are displayed over the entire screen. In Normal mode, normal images are not stretched, and displayed without distortion. LAC Enable: Low angle compensation, if it is on, the picture looks very smooth RESET: Reset menu to default value Using the OSD menu.
  • Page 17 Menu Speaker setup page Preference page MMD154 Description DOWNMIX: Applies to Dolby digital sound. You can select from following: ·LT/RT ·STEREO DUAL MONO: Selects the different channels of sound. You can select from following: ·STEREO ·L-MONO ·R-MONO ·MIX-MONO DYNAMIC: Selects the different rating level of dB. You can select from following: ·Off ·2/8 ·4/8 ·6/8 ·FULL TV TYPE: Selects the TV system .You can select from following: ·AUTO ·PAL(Europe and Asia) ·NTSC (United states)

  • Page 18: Troubleshooting

    Customizing DVD settings To set the general setup page: 1. Press SETUP button on the remote control. The DVD setup menu opens. < > 2. Press to select General setup page, then the list opens. ∧ ∧ ∧ ∧ ∧ ∨...
  • Page 19 Problem Player does not play disc The player suddenly stopped working or the screen went black Player doesn't turn on Picture Skips Occasionally MMD154 Cause Disc inserted incorrectly Disc format is not supported Disc is dirty or scratched Wrong region code Player error The car ignition (or ACC/ (Accessory) is off...
  • Page 20 Problem The picture on the screen is dark. No sound can be heard from the IR wireless headphones. Cause 1.The equipment is located at a low temperature area. 2. Brightness is set too low. 1.Headphones are not turned on. 1.Turn on the headphones. 2.The battery in the headphone is low.

  • Page 21: Specification

    Specification Design and specifications are subject to change without notice. Power Source Operating Voltage Display Angle Pixel Viewing angle (up/down/left/right) 35/15/45/45 Dome Light Operation Temperature Storage Temperature Maintaining Handling discs To keep a disc clean, do not touch the play side (non-label side) of the disc. Do not attach paper or tape to the disc.

  • Page 22: 12 Month Limited Warranty

    Applies to Movies To Go Mobile Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
  • Page 23 THIS PAGE LEFT BLANK INTENTIONALLY MMD154...
  • Page 24 © Copyright 2007 AEC 150 Marcus Blvd. Hauppauge, NY 11788 128-8152...
