Summary of Contents for Audiovox MMD85

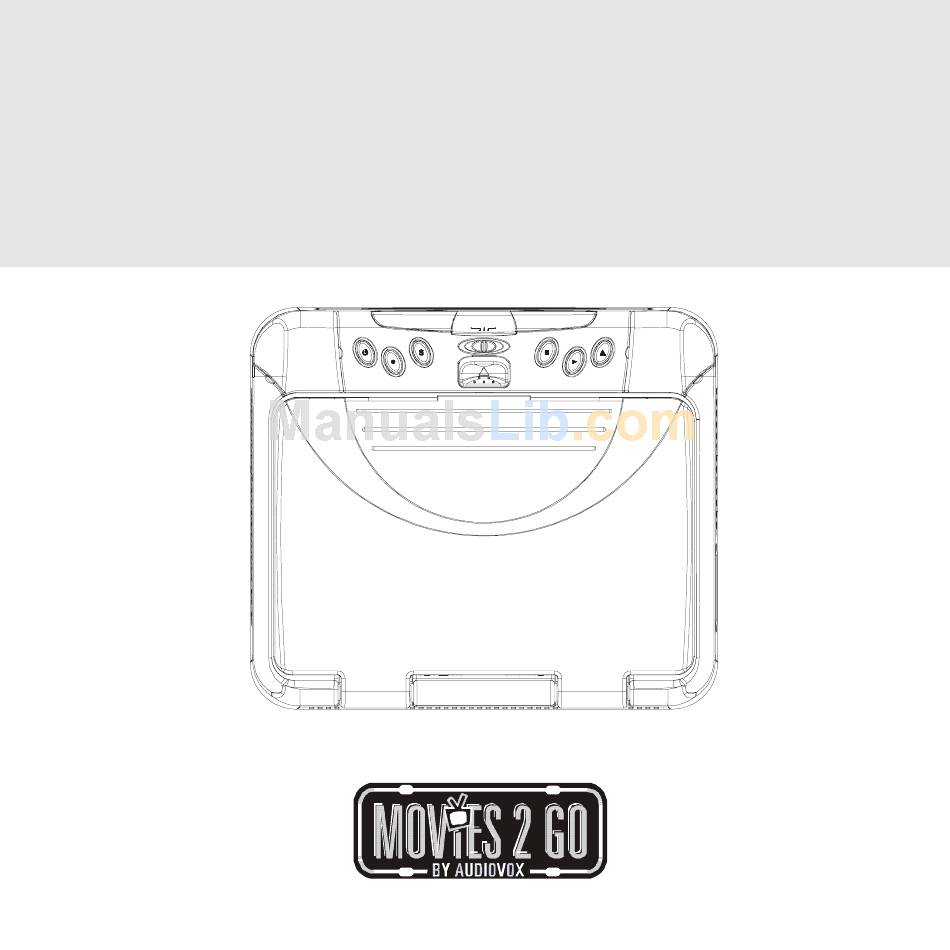

- Page 1 MMD85 8.5” OVERHEAD LCD MONITOR WITH DVD PLAYER AUTO POWER SOURCE STOP EJECT SCREEN PLAY MODE OPERATION MANUAL 1287250...
- Page 2 An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in “park”...
- Page 3 Congratulations on your purchase of the Movies 2 Go MMD85 drop-down Video Monitor with DVD Player. The MMD85 has been designed to give you and your family many years of video entertainment in the mobile environment. Please read the directions that follow to familiarize yourself with the product and to ensure that you obtain the best results from your equipment.
-
Page 4: Controls And Indicators Diagram
CONTROLS AND INDICATORS DIAGRAM POWER AUTO SOURCE STOP EJECT SCREEN PLAY MODE MMD85... -
Page 5: Main Function Descriptions
Dome Lights – Provide additional interior illumination. Infrared Transmitter and Sensor – Used to transmit audio to wireless headphones. Also allows the remote control to operate the MMD85 and to control other accessories in the system. Source Button – Source select DVD,AV1, AUX. -
Page 6: Remote Control Operation
Make sure that proper polarity (+ or -) is observed. Align the cover tabs with the remote control and press until the cover clicks. The remote control will operate the MMD85. It is not a universal remote control and will not control equipment from other manufacturers. ENTER... - Page 7 * Function control is available on the unit and the Remote Control. * POWER Press this button to turn “ON” and “OFF” the MMD85 unit. DISPLAY Press to display current disc information while the disc is playing. Press cursor (...
- Page 8 Picture is returned to original size On-Screen Display REPEAT A Mark beginning of the section to repeat (Set point A) REPEAT A-B Mark the end of the section to repeat (Set point B) AB Off Deactivate the A-B repeat function DVD player MMD85...
- Page 9 6 times 7 times 8 times 9 times MMD85 DVD Player Perform Play a disc in slow forward motion with the speed reduced to 1/2 of normal speed Play a disc in slow forward motion with the speed reduced to 1/4...
- Page 10 19. * SOURCE Video signals from video equipment connected to the audio / video input can be displayed on the monitor by pressing this button. Each time the button is pressed, the audio/video source will toggle between DVD, AV1 and AUX. MMD85...
- Page 11 Press to search in a backward direction. Press repeatedly to change the search speed from 2, 4, 8, 20 times the normal speed. 28. * PLAY Press to activate the play mode while a disc is loaded in the disc compartment. * Function is available on the remote and the front panel. MMD85...
-
Page 12: Settings And Adjustments
Exiting the Setup Menu Press the SETUP button again only. Language Setup Video Setup Rating Setup until the highlight moves back to the icon on the Language Video Rating English OSD Menu English French Spanish Italian German to the MMD85... -
Page 13: Language Setup
16:9 This displays a wide picture with black bands on the upper and lower portion of the screen. The bandwidth will vary, depending on the aspect ratio of the disc. MMD85 Language Video Rating English... -
Page 14: Rating Setup
To apply the changes just press the Enter button and lock the password by key in the password again. Language Video Rating TV Display 16:9 TV Type NTSC NTSC MULTI Language Video Rating Password **** Rating Adult Reset Language Video Rating Password Rating Adult Reset MMD85... -
Page 15: Load Factory
LOAD FACTORY The Load Factory — Reset allows you to reset all options to factory settings. * This function will not affect the Rating control settings. MMD85 Language Video Rating Password Rating Adult Reset... -
Page 16: Playing Dvds
As you toggle through the options, the repeat option changes at that time. The track, for example, repeats once that track has ended. The selected repeat option loops repeatedly until you turn it off. Repeat the chapter that is playing. Repeat the title that is playing. MMD85... -
Page 17: Playing Mp3 Discs
ENTER to display the songs in the folder. Press to move the highlight to the desired song and press ENTER to begin playback of the highlighted song. MMD85 Stop1 CD-R MENU ROOT 879069 Animal 879093... - Page 18 Plays the songs in a folder in random order (from within the selected folder). Plays the songs in a folder in random order. Plays a selected song. Repeat the song that is playing. Repeat the folder that is playing. MMD85...
-
Page 19: Turning The Mmd85 On Or Off
TURNING THE MMD85 ON OR OFF 1. Sliding the screen release lock forward will unlock the LCD screen and it will drop down slightly. Pivot the screen downward until a comfortable viewing angle is reached. The hinge friction will hold the screen in position while the system is in use. -
Page 20: Overhead Dome Lights
OVERHEAD DOME LIGHTS The Dome Lights integrated into the MMD85 are controlled by a three position slide switch. Sliding the switch to the ON position will turn the lights ON. The OFF position will prevent the lights from turning ON with the vehicle’s interior lighting, and the auto position will allow the lights to turn ON and OFF with the vehicle’s interior lighting. -
Page 21: Optional Accessories
Movies 2 Go wireless headphones for more detailed information. Wired Headphones There are two 1/8” headphone jacks on the MMD85 that can be used with any standard wired stereo headphones. These jacks are controlled by the volume up/down buttons on the MMD85 remote control. -
Page 22: Source Feature
The video input may be connected to a Video cassette Player (VCP), video game system, or other audio/video devices. To access the A/V inputs, turn the MMD85 on and press the source button on the MMD85 or the Source button on the remote control until “AV1 or AV2”... - Page 23 Laserdisc • CD-1, CD-ROM, DVD-ROM, Super Audio CD (SACD), DVD Audio To load and Play a Disc Press the Power button to turn the unit ON. Select DVD mode and insert the disc (Label Up) into the disc compartment. MMD85...
-
Page 24: Troubleshooting
Make sure all cables are securely inserted into the appropriate jacks. • If you are using the IR headphones, make sure you turn on the IR headphone power. • Make sure the Modulator is ON and the proper Frequency has been selected. MMD85... - Page 25 Picture is distorted No forward or reverse scan MMD85 SOLUTION • You can’t advance through the opening credits and warning information that appears at the beginning of movies because the disc is programmed to prohibit that action.
-
Page 26: Replacement Parts
Storage Temperature Backlight life Video Display System Headphone Audio Output Video Output Power Source Edge Light Tube 1440 x 234 336,960 32-140°F ( 0-60°C ) -4-176°F (-20-80°C) 10,000 Hours NTSC/PAL 0.03W@32 ohms 1.0Vp-p @ 75 ohms 12V DC MMD85 1287250... -
Page 27: 12 Month Limited Warranty
AEC (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
