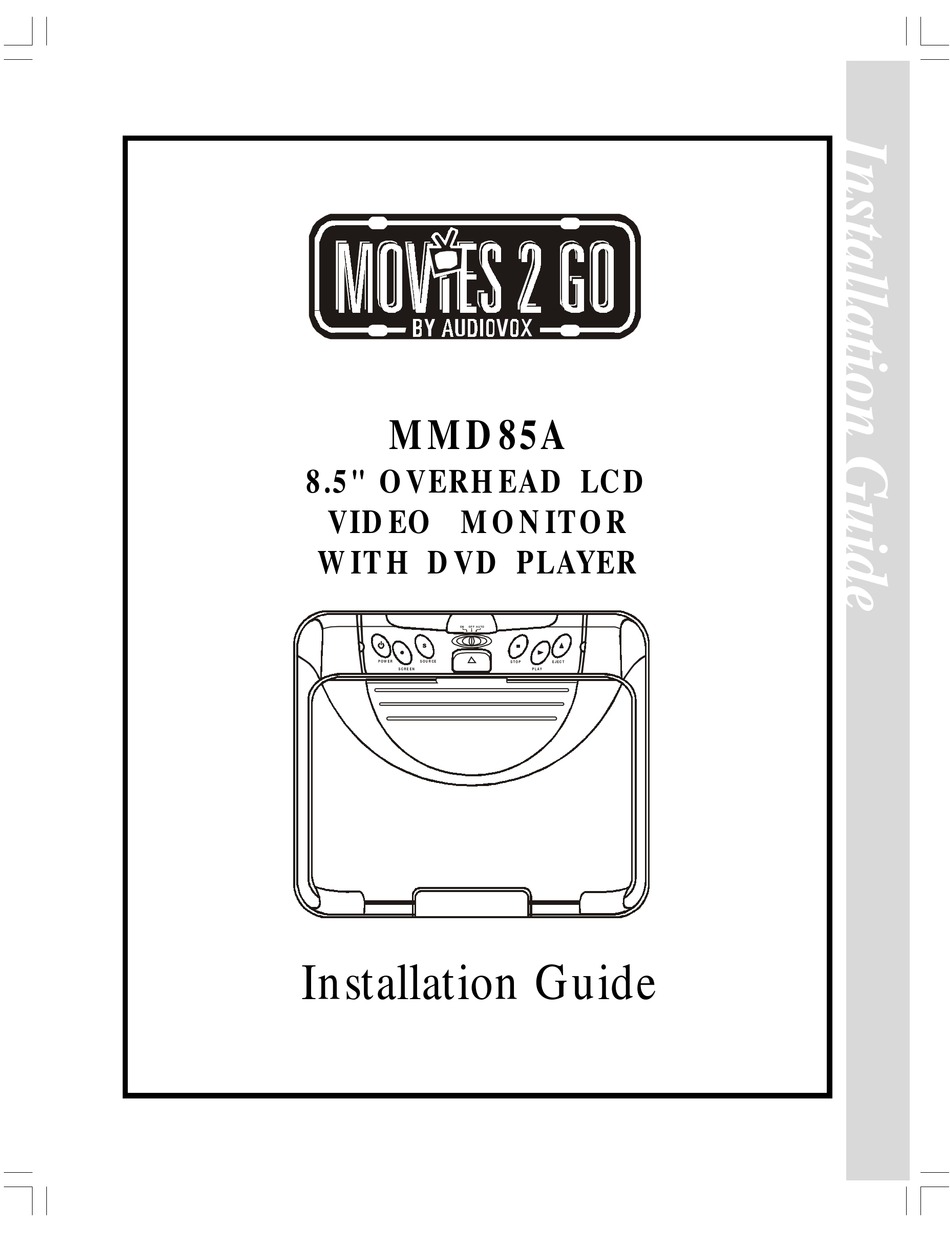

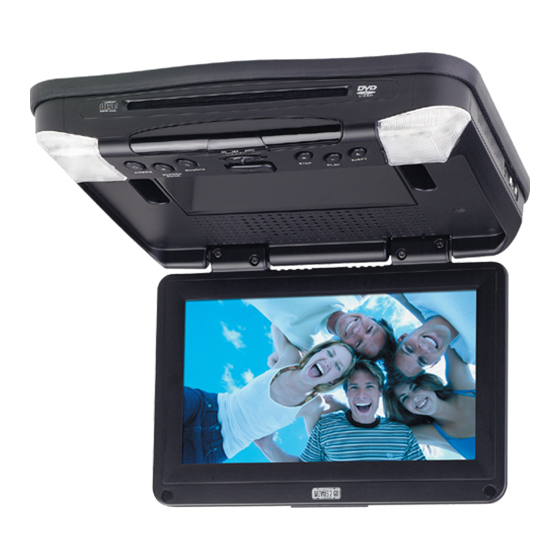

Page 1: Installation Guide
MMD85A 8.5" OVERHEAD LCD VIDEO MONITOR WITH DVD PLAYER OF F A U TO P O W E R S O U R CE S T O P E J E C T S C R E E N P L A Y... -
Page 2: Important Notice
Important Notice An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in “park”... -
Page 3: Materials Included In This Package
MATERIALS INCLUDED IN THIS PACKAGE: 1) MMD85A Video Monitor with DVD player (P/N 136-4052) (1 pc) 2) A/V Adapter Cable (P/N112B3227) (1 pc) 3) 2 Pin Power Wire Harness with choke (P/N112B3143) (1 pc) 4) Dome Light Harness (P/N 112B3110) (1pc) - Page 4 GENERAL INSTALLATION APPROACH: 1) Decide upon system configuration and options that will be installed (i.e.: what components, VCP, Tuner, RF Modulator/external amp, remote headphones, DVD, etc.). 2) Review all manuals to become familiar with electrical requirements and hook ups. 3) Decide upon mounting locations of all components and method of mounting. 4) Prep the vehicle by removing any interior trim necessary to gain access to vehicle's wiring as well as all areas where interconnecting wire harnesses will need to be located.
-
Page 5: Vehicle Preparation
VEHICLE PREPARATION: 1) Locate an accessory power source (+12v when key is in the ACC. and run positions, and 0v when key is off). Also find a location that will provide a good grounding point. Generally, this wire can be found at the ignition switch or fuse-box. -
Page 6: Trim Ring Installation
If the video monitor is to be installed with the trim ring, you may want to remove the rubber gasket first. (See the drawing below). 1) Lay the MMD85A down on a soft surface to avoid R ubber G asket scratching the unit. - Page 7 MOUNTING THE TRIM RING Roof Roof Support Headliner Mounting Bracket (4) Self-Tapping Screws (not supplied) Trim Ring Video Unit (5) #8 Flat Washers (5) #8x3/4” Self-Tapping Screws...
- Page 8 MMD85A * O P TIONAL RELAY BOX S IR S W B * ANTENNA FOR WIRELESS FM MODULATOR ** See Antenna Note Below Red/Black (Lamp On) D om e Lig h t Violet/Brown (Lamp Auto) P ow e r S ou rc e...
-
Page 9: Connecting The Dome Lights
CONNECTING THE DOME LIGHTS The dome lights in the video monitor require three connections to the vehicle's wiring. There are two common types of dome light circuits used, positive or negative switched. Positive systems supply volt- age to the interior lights to turn them on, negative switched systems apply ground to illuminate the bulbs. To determine which system you have you must locate the wires at the dome light. -
Page 10: Troubleshooting
Negative Switched Dome lighting Red / black - Lamp on To 3 pin Black / red - Lamp common connector Violet / brown - Lamp Auto constant Factory Dome light circuit constant Factory Door ajar switch or Body Troubleshooting: SYMPTOM: REMEDY: No power at Video Monitor -Verify +12 VDC on Red wire at 2 pin Power Harness behind video... - Page 11 128-7461 © Copyright 2005 AEC 150 Marcus Blvd. Hauppauge, NY 11788...
