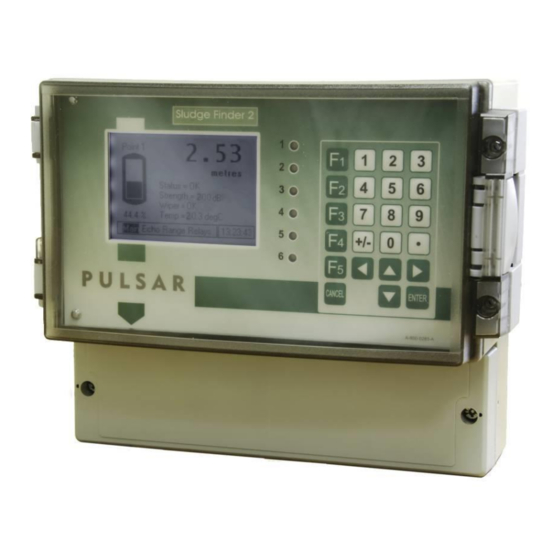

Pulsar SLUDGE FINDER 2 Instruction Manual

Hide thumbs Also See for SLUDGE FINDER 2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual
S
F
2
LUDGE
INDER
I
M
NSTRUCTION
ANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLUDGE FINDER 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pulsar SLUDGE FINDER 2

Summary of Contents for Pulsar SLUDGE FINDER 2

  • Page 1 LUDGE INDER NSTRUCTION ANUAL...
  • Page 3 ARRANTY AND IABILITY Pulsar Process Measurement Limited guarantee for a period of 2 years from the date of delivery that it will either exchange or repair any part of this product returned to Pulsar Process Measurement Limited if it is found to be defective in material or workmanship, subject to the defect not being due to unfair wear and tear, misuse, modification or alteration, accident, misapplication or negligence.

  • Page 5: Table Of Contents

    Transducer Installation Options........................23 Transceiver Mounting ........................... 28 Cabinet Mounting............................29 Pulsar Radio Telemetry System ........................... 31 Chapter 3 How to Use Your Sludge Finder 2 ....................49 Operating the Controls ..........................49 Display ..............................49 Run Mode .............................. 50 Program Mode ............................
  • Page 6 Application Menu ..........................75 Relays Menu ............................76 Floc Alarm Menu ..........................77 ................................77 Data Logs Menu ............................ 78 Display Menu ............................79 mA Output Menu ..........................80 Compensation Menu ..........................81 Stability Menu............................82 Echo Processing Menu .......................... 83 System Menu ............................

  • Page 7: Chapter 1 Start Here

    Chapter 1 Start Here… Congratulations on your purchase of a Pulsar Sludge Finder 2. This quality system has been developed over many years and represents the latest in high technology ultrasonic sludge monitoring. It has been designed to give you years of trouble free performance, and a few minutes spent reading this operating manual will ensure that your installation is as simple as possible.

  • Page 8: About The Sludge Finder 2

    Sludge Finder 2 About the The single Sludge Finder 2 unit provides dual point level sensing in liquids and/or air. Easily installed, conduit entry on unit via 5 x 20mm Knockouts and 1 x 16mm knockout. Outstanding stability, accuracy and repeatability.

  • Page 9: Applications

    Applications The Sludge Finder 2 is designed to monitor the levels of materials in various processes and to regulate the control loops, start and stop motors, and initiate events based on measured process conditions. Some applications for the units are listed below: ...

  • Page 10: Functional Description

    Sludge Finder 2. The time taken to receive the echo is measured and the distance from the transducer face to the sludge interface is calculated.

  • Page 11: Product Specification

    Product Specification Physical Wall Mount Outside dimensions 235 x 184 x 120 mm Weight Nominal 1 kg Enclosure material/description Polycarbonate, flame resistant to UL94-5V Cable entry detail 10 cable entry knock outs, 5 x M20 and 1 x M16 underside, 4 x PG11 at rear Transducer cable extensions 2 twisted pair 0.5mm...
  • Page 12 100-240V ac 50-60 Hz, dc 22 - 28V 20W maximum power (typically 11W) Fuse 2A slow blow Pulsar Process Measurement Limited operates a policy of constant development and improvement and reserve the right to amend technical details as necessary. Page...

  • Page 13: Ec Declaration Of Conformity

    EC Declaration of Conformity Page 7...
  • Page 14 This page left blank intentionally Page...

  • Page 15: Chapter 2 Installation

    Installation Power Supply Requirements Sludge Finder 2 can operate from AC supply or from a DC battery. The AC is supplied via a universal 100-200VAC transformer. The DC is 22-28V. In all cases the Sludge Finder 2 will typically consume 11W of power, with a maximum of 20W.

  • Page 16: Location

    There are two types of approval available for dB transducers, EEx m and EEx ia. The EEx m transducer can be connected directly to the Sludge Finder 2 terminals but the EEx ia transducer must be connected through a suitable zener barrier as shown below.

  • Page 17: Dimensions

    Wall mount The dimensions of the wall fixing holes are as shown below. Sludge Finder 2 should be mounted by drilling three holes suitable for size 8 screws (length to suit your application) and fixing the top screw in place. Hang the unit on this and fix the two remaining screws by removing the terminal access cover to access the pre drilled holes.
  • Page 18 The full dimensions of the enclosure are as shown below. Page...

  • Page 19: Transducer

    Cable Entry There are 6 cable gland knockouts on the base of the Sludge Finder 2 (5 x M20, 1 x M16) and 4 on the rear (4 x PG11). Select which ones you wish to take out, and remove them by using a circular cutter, such as a tank cutter. Take care not to damage the circuit board inside whilst undertaking this.

  • Page 20: Terminal Connection Details

    Terminal Connections Power Sludge Finder 2 can operate from mains AC and automatically from DC or battery backup in the event of power failure, or can be operated permanently from DC or batteries. Wire the transducer to the Sludge Finder 2’s transducer terminals as follows:...
  • Page 21 Transducer 2 VT Transducer Terminal Connection Details Orange White Black Green Unit Type Motor Power Signal 0 volts Screen Terminal no. dB Transducer Terminal Connection Details White Black Green Unit Type Power Signal 0 volts Screen Terminal no. Relay Outputs The six relays can be programmed for a variety of alarms or process control functions.
  • Page 22 Important Information Never operate the Sludge Finder 2 with terminal access exposed. An external switch or circuit breaker should be installed near to the Sludge Finder 2 to allow the supply to be removed during installation and maintenance. In installations where the relay contacts have mains power...

  • Page 23: Transducer (Sensor)

    Transducer (Sensor) Locating the Sludge Transducer  Position the transducer at an elevation in the tank such that it is fully submerged at all times that measurements are required, typically the face of the transducer should be 150mm below the normal water level. The temperature compensation will only function correctly if the transducer is submerged at this level or below.

  • Page 24: Wall Mount Unit

    Avoid locating the processor near variable frequency drives or other high voltage equipment or cables.  Ensure that the Sludge Finder 2 controller is installed in a “Safe”, non- hazardous, area.  For a clear view of the LCD display it is recommended that it is mounted at eye level.
  • Page 25 Page 19...

  • Page 26: Preparation For Operation

    The correct PPE should be worn to ensure you do not come into direct contact with the wetted parts of the Sludge Finder 2 system, if in doubt contact your site Health and Safety Officer.
  • Page 27 The transducer can then be safely inspected for damage or material fouling and can be carefully cleaned with a damp cloth to remove any foreign debris. Care should be taken not to move the wiper by hand as any movement not under the power of the motor may damage the unit.
  • Page 28 The wiper arm will move twice every 20 mins as a default setting, if the face of the transducer is dirty and you are unsure as to whether or not the wiper is cleaning then place the transducer such that the wiper movement will not foul on anything and use the appropriate function key ( ) to force a wipe (see note below).

  • Page 29: Transducer Installation Options

    Transducer Installation Options. Stainless steel mounting plate. Fig. 1 Page 23...
  • Page 30 The mounting system shown above including the conduit is made from stainless steel. The mounting plate is attached to the (normally galvanised) handrail via two hot dipped galvanised u-bolts, the u-bolts are then separated from the mounting plate via robust cast plastic spacers. This system ensures that there are no problems with dissimilar metal reactions, and, the entire mounting system should not suffer from oxidisation/corrosion issues which can cause problems when performing maintenance.
  • Page 31 Mounting Bracket (exploded view) Note: the two arms holding the hinged conduit retainers are welded to the mounting plate. Part Numbers Stainless transducer mounting bracket assembly complete with security chain and 2.5m ¾" stainless conduit. Part Number 9200A0007 Stainless transducer mounting bracket assembly without chain or conduit. Part Number 9200A0008 Flexible Arm Assembly Part Number 9200A0001...
  • Page 32 Budget Mounting Option. This mounting system has galvanised parts and is designed to be a budget option for transducer mounting. In the picture shown above the security chain and flexible arm assembly are optional. Page...
  • Page 33 Mounting option 2, assembly. Part Numbers Budget galvanised transducer mounting bracket complete with security chain and 2.5m ¾" galvanised conduit. Part Number 9200A0009 Budget galvanised transducer mounting bracket. Part Number 9200A0010 Flexible Arm Assembly Part Number 9200A0001 Page 27...

  • Page 34: Transceiver Mounting

    Transceiver Mounting The Sludge Finder 2 transceiver is mounted in an IP65 rated enclosure. These enclosures are often situated out in the open on the walkways or bridges of settlement tanks and are therefore very exposed to the elements. With this in mind we offer a metal enclosure similar to the one below to ensure that, if required, the unit is not mounted in direct sunlight and is sheltered from any potential exposure to water ingress via precipitation or the application itself.

  • Page 35: Cabinet Mounting

    Cabinet Mounting. If the Sludge Finder 2 transceiver is mounted into the steel cabinet, Pulsar can offer the necessary metalwork to affix the cabinet to a bridge or walkway as seen below. This includes 2 x slotted galvanised steel rails and 4 x U-bolt fittings (customer specified diameter).
  • Page 36 Part Number 9200A0005 Handrail installation kit for Sludge Finder 2 enclosure. Includes 2 x 2m mounting rails and 4 x U-bolts (diameter to be customer specified) Part Number 9200A0006...

  • Page 37: Pulsar Radio Telemetry System

    Pulsar Radio Telemetry System Some Pulsar units may be fitted with an optional Radio Telemetry System. This system cannot be retro fitted and must be purchased at the time of ordering. The system consist of a small transmitter board or ‘Node’ that is integrated into the SF2 housing and a receiver or ‘Gateway’...
  • Page 38 RECEIVER (gateway) DX80 The Receiver unit is shown below. The Receiver unit needs to be supplied with 10-30vdc. Page...
  • Page 39 The Power Supply and output terminals are shown below. The Power can be connected to either of the PWR and GND terminals. 10-30VDC The Digital Output for Relay 4 (Hi or Lo level) is connected to DO1 The Digital Output for Relays 5 & 6 (Wiper Fail and LOE) is connected to DO2 The Analogue Output for Channel 1 is connected to AO1 The Analogue Output for Channel 2 is connected to AO2 Page 33...
  • Page 40 The systems supplied by Pulsar are ‘paired’ and care should be taken to ensure the right Receiver is installed with the appropriate Transmitter if more than one system is in operation on the same site. The left dial represents the units of the device.
  • Page 41 Veryfying Communications. After powering up, verify the device is communicating properly. When testing the Gateway and Node, ensure all radios and antenna are at least two metres apart or communications may fail. Page 35...
  • Page 42 Enclosure Dimensions Page...
  • Page 43 Radio Telemetry Features. Up to 48 repeaters can be used by upgrading to a ‘MULTIHOP’ receiver vastly increasing the distance between transmitter and receiver. Transmissions are always secure due to ‘Frequency Hopping’ technology. Unlimited pairs can be used in the same location. Light, strong, compact and easily fitted enclosure.
  • Page 44 Pulsar Non Integrated Point – Point Radio Telemetry. Pulsar also offer a non-integrated Radio Telemetry System that is available to be retro fitted. The unit offers 2 x 4-20 Analogue Output and 4 x Digital Output re-transmission over 3km line of sight.
  • Page 45 Receiver and Transmitter Dimensional Details. Page 39...
  • Page 46 Gateway and Node wiring details Applying power to the DX70 Radio Devices. Connect power to the Gateway and Node by connecting 10-30VDC directly to the terminal block as shown below. 1 = 10-30VDC 2 = Ground Page...
  • Page 47 Digital Input 4 Digital Output 4 The Pulsar units will be supplied already ‘bound’ and correctly addressed this means they will only talk to each other and cannot be externally interogated When power is applied the units will show a solid green led and a flashing yellow led that will indicate they are communicating and all is normal, as shown below the speed of the flashing yellow led indicates the strength of the signal between the devices.
  • Page 48 Verify Communications Until comms is established the signal LED’s are solid red, when comms is established the signal LED flashes yellow the frequency of the flash indicates signal strength. When testing the Gateway and Node, ensure all radios and antenna are at least two metres apart or communications may fail.
  • Page 49 Installation Tips. It is important to create a clear communication path. Wireless comms can be hindered by radio interference and obstructions in the path between the radio and receiver. To achieve the best performance carefully consider the installation locations for the Gateways and Nodes, select locations without obstructions in the pathway between them.
  • Page 50 Be Aware of Seasonal Changes. Seasonal changes may affect signal strength, leaves on trees that were absent during a site survey can become a problem later in the year. Page...
  • Page 51 Pulsar only supply External Antenna, these Antenna are weather proof if installed correctly. Pulsar also supply 4m extensions for both the receiver and transmitter end to ensure there is sufficient flexibility for Antenna positioning. The Antenna need a CLEAR LINE OF SIGHT to each other at all times to maintain reliable communication, care should be taken if either the transmitter or receiver end is installed on moving machinery.
  • Page 52 Please contact Pulsar for details. Page...

  • Page 53: Specifications

    Specifications. Radio Range. 2.4GHz up to 3km. Radio Transmit Power. 18dn conducted, less than or equal to 20dbm EIRP. Radio Compliance. FCC ID UE300DX80-2400 This device complies with FCC Part 15 Subpart C 15.247 ETSI/EN In accordance with EN 300 328: V1.7.1 (2006-05) IC 7044A-DX8024 Spread Spectrum Technology.
  • Page 54 Inputs. Discrete I/P OFF condition, PNP Less than 5V, NPN Greater than 2V or Open. Analogue I/P Rating 24ma, Impedance 100 ohms, Sample Rate 1 second or 1%, Resolution 12bit Outputs. OFF State Leakage Less than 10 micro amps, Max End to End Latency 300 milliseconds.

  • Page 55: Chapter 3 How To Use Your Sludge Finder 2

    (auto/manual hard/soft) will also be shown at the bottom of the screen. There are two main operating modes for your Sludge Finder 2, Run Mode and Program Mode. There is also a Test Mode, used for checking the set-up. All modes are now described.

  • Page 56: Run Mode

    Run Mode This mode is used once the Sludge Finder 2 has been set up in program mode. It is also the default mode that the unit reverts to when it resumes operation after a power failure. When Sludge Finder 2 is switched on for the first time, it will display, in metres, a level measurement relating to the default tank dimensions.
  • Page 57 Transducer Status Wiper Status Range This screen gives details of the current interface level and the range settings held in the Sludge Finder 2. P107 = Near Blanking Distance P106 = Span P105 = Empty Distance Page 51...
  • Page 58 Relays The relays screen indicates the current state of all relay outputs and gives a visual representation of the current interface level and the on and off setpoints of the individual relays. The level icons, e.g. “ ” (point 1), represent the level reading of the transducer that the corresponding relay is assigned to (see table below).

  • Page 59: Program Mode

    Program Mode This mode is used to set up the Sludge Finder 2 or change information already set. You must use the built-in keypad to access program mode. Alternatively the unit can be set up with a PC via the RS 232 Serial Interface.

  • Page 60: Information Screen

    To access the information screen, press the button when the Sludge Finder 2 is in run mode. There are 4 pages within the information screen, preceded by the pulsar logo, showing the current page number at the bottom centre of the information screen. The screens will automatically scroll but...

  • Page 61: Hot Keys

    Run Mode. Pressing the hot key once will initiate or toggle the function assigned to that key, then the Sludge Finder 2 reverts to the Run Mode display, if applicable. In program mode, they have different functions.

  • Page 62: Menu Keys

    Menu Keys The menu keys have the following functions: Menu Key Function 1) Arrow keys for moving left and right through the menu system and used as ‘backspace’ when editing the value of a parameter. 2) Used for changing display mode in run mode. 3) Used in test mode to simulate the level moving up and down (right=up, Left=down).

  • Page 63: Numeric Keys

    Numeric Keys These keys are used for entering numerical information during programming or to enter the passcode from run mode. Page 57...

  • Page 64: Using The Menu System

    There are two means of editing parameters, directly or using the menu system. Each is now described. Using the Menu System The menu system has been designed to make the changing of parameters very simple. There are two levels of menu: Main Menu and Sub Menu. At the top of the display there is a line of text that displays the main menu items.
  • Page 65 Once you have reached the relevant section, scroll down the parameter list to highlight the parameter you wish to edit and press ENTER to access the parameter options. When you are at parameter level, the options for that parameter will be displayed on the screen.

  • Page 66: Test Mode

    Test Mode Test mode is used to simulate the application and confirm that all parameters and relay setpoints have been entered as expected. During simulation, there is a choice of whether the relays will change state (hard simulation) or not (soft simulation), but the LED’s will always change colour as programmed, and the mA outputs will change in accordance with the chosen mode of operation.

  • Page 67: Using The Rs232 Serial Interface

    To use the device remotely, you need to log on to start, and log off when finished. When logged on, Sludge Finder 2 will show “Remote” on the display in place of the clock. When logged off, the display will return to normal (clock will be displayed).
  • Page 68 To read a parameter value, send the command /Pxxx where xxx is the parameter you wish to read, and the Sludge Finder 2 will respond with the parameter value. To set a parameter, send the command /Pxxx:yy where xxx is the parameter number, and yy is the value you wish to set it to.

  • Page 69: Parameter Defaults

    OFF. The date (P931) and time (P932) in Sludge Finder 2 were set at the factory, but may need checking, and amending if, for example the application is in a time zone other than GMT, see relevant unit Parameter listing for full details.
  • Page 70 This page left blank intentionally Page...

  • Page 71: Chapter 4 Programming Guide

    Chapter 4 Programming Guide Example 1: Primary Settlement Sludge Interface monitoring Tank Depth (P115) 2.8m Transducer Depth (P116) 0.2m Near Blanking (P107) 0.3m Span (P106) 2.3m High Alarm on (P213) 1.95m High alarm off (P214) 1.85m Interface level Empty level In this example, when the sludge interface level rises to 1.95 m, relay 1 will come on until the level drops to 1.85 m when it will turn off.
  • Page 72 Example 1b Level Monitoring with Alarms on Point 2 otherwise, programming is now complete and the unit can be returned to the run mode, press CANCEL until Run Mode? Is displayed on the LCD press ENTER, and the Sludge Finder 2 will return to the Run Mode. Page...

  • Page 73: Setting Up Point 2 With As An Ultrasonic Point Of Measurement

    Setting Up Point 2 with as an Ultrasonic Point of Measurement If it is required that point two is to be set up as an ultrasonic transducer to measure level in air follow the procedure as per the example below. Example 2: Level Monitoring with High and Low Alarms on Point 2 A vessel, containing a liquid that has a variation in level that is to be monitored, with a high level alarm set on Relay 1, and low level alarm set on Relay 2.
  • Page 74 All other parameters should remain at default values. Programming is now complete and the unit can be returned to the run mode, press CANCEL until Run Mode? Is displayed on the LCD press ENTER, and the Sludge Finder 2 will return to the Run Mode. Page...
  • Page 75 Example Echo Screen for Ultrasonic Transducer Empty Distance Status Indicator Indicator Page 69...

  • Page 76: Example 3: Using A Single Viper Transducer To Measure 2 Different Interface Levels

    Example 3: Using a Single Viper Transducer to Measure 2 Different Interface Levels. The Pulsar SF2 Integrator can be used to monitor both the Rag or FLOC levels and the Settled Sludge or RAS levels simultaneously using only one Viper Transducer.

  • Page 77: Example 4: Setting The Unit To Alarm On Hi-Floc Levels

    Example 4: Setting the Unit to Alarm on Hi-Floc Levels High Floc Alarm The unit is now able to pick up on high level of floc readings, to do this it reacts to the raw echo trace rather than the processed echo. You are then able to set an alarm that is only reacting to the raw floc levels which will activate if the % of intrusion (P163) is reached between the distances set (in measurement units) in P160 Start distance and P161 End Distance.
  • Page 78 Enter program mode by keying in 1997 and pressing ENTER. Once in program mode you will need to program both a High Floc alarm relay and set up the parameters in the new Floc alarm menu option. Assigning an alarm relay to this new feature to alert you of a high floc presence, also allows you to view on the units trace screen the area box monitored by the Floc alarm parameters.
  • Page 79 The ‘Intrusion Window’ appears in the top let hand side of the echo profile display when the ‘Gate’ hot key is pressed. The ‘Raw Echo’ hotkey (F3) should also be pressed to see if the Raw Echo Profile in the display is intruding into the window. Page 73...

  • Page 80: Chapter 5 Menu System And Parameter Guide

    Chapter 5 Menu System and Parameter Guide This section outlines all parameters available in the Sludge Finder 2, as they appear in the menu system. Shown below is a set of charts to show you how all the various parts can be found using the menu system.

  • Page 81: Application Menu

    Application Menu Point 1 Point 2 Global Point 1 Point 2 P100 Mode P1100 Mode P101 Transducer P1101 Transducer P102 Material P1102 Material P115* Tank Depth P1115* Tank Depth P116* Transducer Depth P1116* Transducer Depth P105 Empty Level P1105 Empty Level P106 Span P1106 Span P107 Near Blanking...

  • Page 82: Relays Menu

    Relays Menu Relay 1 Relay 2 Relay 3 Relay 4 Relay 5 Relay 6 Relay * P2*0 Relay Type P2*1 Relay Function P2*2 Relay Ident. P2*3 Relay Setpoint 1 P2*4 Relay Setpoint 2 P2*6 Relay Allocation P2*7 Relay Closures P2*8 Failsafe Mode * is the number of the relay from 1 to 6 Page...

  • Page 83: Floc Alarm Menu

    Floc Alarm Menu Point 1 Point 2 Point 1 Point 2 P160 Start Distance P1160 Start Distance P161 End Distance P1161 End Distance P162 Level P1162 Level P163 % of Intrusion P1163 % of Intrusion P164 On Delay P1164 On Delay P165 Off Delay P1165 Off Delay Page 77...

  • Page 84: Data Logs Menu

    Data Logs Menu Point 1 Point 2 Point 1 Point 2 P580 Min. Temperature P1580 Min. Temperature P581 Min. Temp. Date P1581 Min. Temp. Date P582 Min. Temp. Time P1582 Min. Temp. Time P583 Max. Temperature P1583 Max. Temperature P584 Max. Temp. Date P1584 Max.

  • Page 85: Display Menu

    Display Menu Point 1 Point 2 Point 1 Point 2 P800 Display Units P1800 Display Units P801 Decimal Places P1801 Decimal Places P802 Display Offset P1802 Display Offset P804 Display Conversion P1804 Display Conv. P808 Failsafe Mode P1808 Failsafe Mode P809 Failsafe Time P1809 Failsafe Time Page 79...

  • Page 86: Ma Output Menu

    mA Output Menu mA Out 1 mA Out 2 mA Out 1 mA Out 2 P830 mA Range P890 mA Range P831 mA Mode P891 mA Mode P834 mA Low Level P892 mA Low Level P835 mA High Level P893 mA High Level P836 mA Low Limit P894 mA Low Limit P837 mA High Limit...

  • Page 87: Compensation Menu

    Compensation Menu Point 1 Point 2 Point 1 Point 2 P851 Measnt. Offset P1851 Measnt. Offset P852 Temp. Source P1852 Temp. Source P1854 Fixed Temp. P854 Fixed Temp. P860 Sound Velocity P1860 Sound Velocity Page 81...

  • Page 88: Stability Menu

    Stability Menu Point 1 Point 2 Point 1 Point 2 P870 Fill Damping P1870 Fill Damping P871 Empty Damping P1871 Empty Damping P881 Fixed Distance P1881 Fixed Distance P882* Process Filter P1882* Process Filter P883 Gate Expand P1883 Gate Expand * dB transducers only Page...

  • Page 89: Echo Processing Menu

    Echo Processing Menu Point 1 Point 2 Point 1 Point 2 P900 Transducer Status P910 Transducer Status P901 Echo Confidence P911 Echo Confidence P902 Echo Strength P912 Echo Strength P903 Average Noise P913 Average Noise P904 Peak Noise P914 Peak Noise P905* Sensitivity P915* Sensitivity P906* Side Clearance...

  • Page 90: System Menu

    System Menu Passcode Backup System Info Date & Time LED Colour Watchdog Daylight Save Passcode Date & Time P921 Enable Code P931 Date P922 Passcode P932 Time P933 Date Format Backup P925 Parameter Backup System Info LED Colour P926 Software Revision P935 Off Colour P927 Hardware Revision P936 Alarm Colour...
  • Page 91 Watchdog Daylight Save P940 Number of Starts P970 DST Enable P941 Start Date P971 Difference P942 Start Time P972 Start Time P943 Start Date 1 P973 Start Day P944 Start Time 1 P974 Start Week P945 Start Date 2 P975 Start Month P946 Start Time 2 P976 End Time P947 Start Date 3...

  • Page 92: Device Comm Menu

    Device Comm Menu Comm. option dependant RS232 Setup Modbus Profibus RS232 Setup P061 Comms Baudrate Optional Optional Modbus Profibus P130 Device Mode P132 Device Address P131 Protocol P143 Address Locked P132 Device Address P133 Device Baudrate P134 Parity P135 Stop Bits P136 Data Format P137 Delay in ms Page...

  • Page 93: Test Menu

    Test Menu Simulate Pt 1 Simulate Pt 2 Setup Hardware Simulate Pt 1 Hardware P980 Simulate P990 Self Test P991 Hardware Test Simulate Pt 2 P992 mA Output Test P1980 Simulate P994 Transducer Test P995 Keypad Test Setup P996 Relay Test P981 Increment P982 Rate P983 Start Level...
  • Page 94 This page left blank intentionally Page...

  • Page 95: Chapter 6 Parameter Listing And Descriptions

    Chapter 6 Parameter Listing and Descriptions Application Parameters Point 1 / Point 2 P1-P100, P2-P1100 Mode of Operation This parameter sets the mode of operation, when in run mode, and can be set to one of the following: Option Description Display shows the distance from the 1 = Distance (Default) transducer face to the surface/interface.
  • Page 96 P1-P102, P2-P1102 Material This parameter should be set to the type of site being monitored for Sludge or the material being monitored with air transducers. The options are: VT transducers Option Description 1 = Industrial Use for the majority of non-sludge sites Use for primary settlement tanks 2 = Primary (Default) 3 = Secondary...
  • Page 97 P1-P106, P2-P1106 Span This parameter should be set to the maximum distance from the Tank Depth (P115/P1115) or Empty Level (P105/P1105) to the maximum material level. It is automatically set to be equal to the Tank Depth (P115/P1115) or Empty Level (P105/P1105) less the Near Blanking distance (P107/P1107), when you set the tank depth or empty level.
  • Page 98 P1-P107, P2-P1107 Near Blanking Distance This parameter is the distance from the face of the transducer that is not measurable (also known as the ‘dead zone’), and is pre-set to the minimum value dependant on the Xducer (P101) selected. It should not be set to less than this figure, but can be increased, typically to ignore close in obstructions.

  • Page 99: Global

    Global P104 Measurement Units This parameter sets the units you want to use for programming and display Option Description All units of measure are 1 = metres (Default) METRES 2 = cm All units of measure are CENTIMETRES 3 = mm All units of measure are MILLIMETRES 4 = feet...

  • Page 100: Relay Parameters

    Relay Parameters All relay related parameters are prefixed with a 2**. The second digit of the three figure parameter number denotes the relay number as follows: 21* parameters for Relay 1 22* parameters for Relay 2 23* parameters for Relay 3 24* parameters for Relay 4 25* parameters for Relay 5 26* parameters for Relay 6...
  • Page 101 P210, P220, P230, P240, P250, P260 - Relay Type This parameter defines what type each relay should be, see the table below for available options. Option Description Relay not in use or programmed and LED will 0= Not In Use (Default) always be off.

  • Page 102: Alarms

    Alarms P210, 220, 230, 240, 250, 260 =1 (Alarm) The second parameter for each relay determines the function of the alarm. P211, P221, P231. P241, P251, P261 - Relay Function This parameter defines what function the alarm will respond to as follows. Option Description Relay will not operate.
  • Page 103 The third parameter for each relay determines the alarm ID for the relay you wish to set. P212, P222, P232, P242, P252, P262 - Relay Alarm ID When P211, 221, 231, 241, 251, 261 = 3 (Loss of Echo), 4 (Loss of Clock), 5 (Wiper Fault), 6 (Hi –...
  • Page 104 Alarm ID Description Setpoints 5= LoLo Same as 4=Lo, but different identifier. Relay goes “ON” if 6= In bounds Relay Setpoints, value is inside the zone P213, 223, 233, between the two 243, 253, 263 and P214, 224, 234, setpoints. 244, 254, 264 can be set in any order as the unit ‘knows’...

  • Page 105: Control

    Important Information Setpoints are entered in values according to the function selected. Level - entered in Display Units or % of span as referenced to Empty Level. Temperature - entered in ºC. See the appropriate alarm function, table (P211, 221, 231, 241, 251, 261) for further information.
  • Page 106 The third parameter has no function when control relays are chosen and will not be displayed. The fourth parameter and fifth parameter are set to determine the switch points, “ON” and “OFF” for the relay. See control function, table (P211, 221, 231, 241, 251, 261) for further information.

  • Page 107: Miscellaneous

    Miscellaneous P210, 220, 230, 240, 250, 260 = 3 (Miscellaneous) When a relay is set to be a miscellaneous relay, the second parameter determines its function. P211, P221, P231, P241, P251, P261 - Relay Function, This function allows the relay to work in relation to a clock or a specific event and will be set to activate in relation to Real Time.

  • Page 108: Common Parameters

    P217, P227, P 237, P247, P257, P267 - Relay Closures The Sludge Finder 2 will record how many times each relay is closed, this parameter displays the number of times the relay has activated since the relay has been in use.

  • Page 109: Floc Alarm Parameters

    Floc Alarm parameters P1-160, P2-1160 Start Distance This parameter determines in measurement units (P104) the distance from the transducer at which the Floc Density monitoring starts. Minimum = 0, Maximum = 10 Default = 0m P1-161, P2-1161 End Distance This parameter determines in measurement units (P104) the distance from the transducer at which the Floc Density monitoring ends.

  • Page 110: Service Interval Alarm Parameters

    Service Interval Alarm Parameters See Service Manual for details. Data Log Parameters The data log parameters contains the following information. Point 1 / Point 2 The following parameters give information on temperature conditions seen by the Temperature source (P852/P1852) in ºC. All of these parameters are read only and cannot be changed, though if P852/P1852 is changed they will be reset.

  • Page 111: Display Parameters

    Display Parameters Point 1 / Point 2 P1-P800, P2-P1800 Display Units This parameter determines whether the reading displayed is in Measurement Units (P104), or as a percentage of span. Option Description Display is in selected units dependant on 1 = Measured (Default) Mode (P100/P1100) Display is in percentage of span dependant 2 = Percentage...

  • Page 112: Failsafe

    Failsafe P1-P808, P2-P1808 Fail-safe Mode By default, if a fail-safe condition occurs, then the display, relays and the mA output are held at their last known values until a valid reading is obtained. If required, then you can change this so that the unit goes to high (100% of span), or low (empty) as follows: Option Description...

  • Page 113: Ma Output Parameters

    mA Output Parameters mA Out 1 / mA Out 2 P1-P830, P2-P890 mA Range This parameter determines the range of the mA output, from the following. Option Description 0= Off mA output disabled. 1= 0 to 20 mA mA output directly proportional to the mA mode (P831/P891), so if the reading is 0% the output is 0 mA.

  • Page 114: Setpoints

    Setpoints By default the mA Output will represent the empty (0 or 4mA dependant on (P830/P890) mA Range) and 100% of the operational span (20mA), but you may wish to have the output represent a section of the operational span. For example, the application has an operational span of 6 metres but output is to represent empty (0 or 4mA dependant on (P830/P890) mA Range) to a level of 5 metres (20mA).
  • Page 115 P1-P839, P2-P897 mA High Trim If the device you are connected to is not calibrated, and not showing the correct high value (reading), then you can trim it using this parameter. You can either type in the offset directly, or use the up/down arrow keys to move the output up and down until you get the expected result (reading) on the device that is connected.

  • Page 116: Compensation Parameters

    Compensation Parameters Offset P1-P851, P2-P1851 Measurement Offset The value of this parameter is added to the measured distance, in Measurement Units (P104). This Offset will be added to the level, as derived from the transducer, and will affect everything including the reading on the display, the relay setpoints and the mA output.

  • Page 117: Stability Parameters

    P1-P860, P2-P1860 Sound Velocity This parameter allows for the velocity of sound to be changed according to the atmosphere the transducer is operating in. By default the velocity is set for sound travelling in air/water at an ambient temperature of 20 degrees centigrade. Default = 342.72m/s (velocity in air for dB transducer) Default = 1482.32m/s (velocity in water for VT transducer) Stability Parameters...
  • Page 118 P1-P882, P2-P1882 Process Filter (db transducers only) This parameter determines the number of ‘cycles’ that will be taken before a change in level is processed and the display updated. Option Description 1 = Fast level will be updated every cycle 2 = Medium level will be updated every 8 cycles level will be updated every 16 cycles...

  • Page 119: Echo Processing Parameters

    Echo Processing Parameters Point 1 / Point 2 P1-P900, P2-P910 Transducer 1 Status This parameter shows the current state of the transducer. The value means the following. Option Description 0= OK Transducer working correctly. 1= Disabled Transducer is not being used (mA input is being used instead, so P101=1) 2= Stuck High Indicates that the power and signal lines on the...

  • Page 120: System Parameters

    P1-P905, P2-P915 Sensitivity ( db transducers only) This parameter sets the minimum DATEM level and can be increased to cover a high noise floor in noisy applications. It is recommended that this parameter not be changed unless necessary as any echo below the DATEM will be ignored. Default 5dB (50mV).

  • Page 121: System Information

    System Information The following three parameters do not affect how the unit performs, but details, contained in them, may be required, by Pulsar, when making technical enquiries. P926 Software Revision This parameter will display the current software revision. It is read only, and cannot be changed.

  • Page 122: Date & Time

    Date & Time The date and time is used, to control specific relay functions and date stamp certain events that are contained in the Data Logs. It is also used in conjunction with the system watchdog that keeps an eye on the times the unit has started. P931 Date This parameter display the current date, in the format as set by P933 (Date Format), and can be reset if required.

  • Page 123: Watchdog

    This can be useful if there have been power failures or if for any reason the Sludge Finder 2 restarts due to a fault condition. The Sludge Finder 2 can be backed up from a battery which automatically cuts in during power failure.

  • Page 124: Daylight Saving Time

    Daylight Saving Time Important Information In order to ensure the correct operation of Daylight Saving Time P932 Time should be checked, and adjusted if necessary, to ensure that it is set for the current valid time. P970 DST Enable When Enabled (set to 1) the internal clock will be automatically adjusted to compensate for the difference between standard time and Daylight Saving Time.
  • Page 125 P974 Start Week This parameter will determine the week of the month (P975) in which Daylight Saving Time is to start. Option Description 1= Week 1 DST will start on day (P973) in the first week (P974) of the month (P975). 2= Week 2 DST will start on day (P973) in the second week (P974) of the month (P975).
  • Page 126 P977 End Day Use this parameter to enter the day of the week (P974) that Daylight Saving Time is to end. Option Description 2= Monday DST will end on a Monday 3= Tuesday DST will end on a Tuesday 4= Wednesday DST will end on a Wednesday 5= Thursday DST will end on a Thursday...

  • Page 127: Device Comm

    P979 End Month This parameter is used to select the month, in which Daylight Saving Time will end. Option Description 1= January DST will end during the month of January 2= February DST will end during the month of February 3= March DST will end during the month of March 4= April...

  • Page 128: Test Parameters

    Test Parameters Simulation P980 Simulate Test mode is used to simulate the application and confirm that all parameters and relay setpoints have been entered as expected. During simulation, there is a choice of whether the relays will change state (hard simulation) or not (soft simulation), but the LED’s will always change colour as programmed, and the current output will change.

  • Page 129: Hardware

    P983 Start Level When using automatic simulation this parameter can be used to pre-determine the point at which the simulated level will start at and return to. This can be used to simulate the lowest point to which the level would normally operate. Hardware P990 Self Test If you enter 1 for this parameter, then the unit will perform a self-test.
  • Page 130 P997 Keys Test You should press each key, to confirm it works, with a counter showing how many more keys you have to press. Press the CANCEL key last, as this will confirm if all keys were pressed or not. If they were not, then an error message is displayed. P998 Relays Test Press a numeric key corresponding to the number of the relay you wish to test, and the relay will change state each time the key is pressed.

  • Page 131: Chapter 7 Troubleshooting

    Remove the transducer from the application, remove any fouling and attempt a manual sweep once more. If there is still a fault, consult Pulsar. Page 125...
  • Page 132 This page is left blank intentionally Page...

  • Page 133: Parameter Record

    Parameter Record For parameters common to both transducers, the parameter number should be added to by 1000 to give point 2 (P1 and P2 columns are provided in relevant tables below, P* represents a universal parameter). PPLICATION Distances Parameter Details Entered Values Description Default...
  • Page 134 ELAYS Relay 1 Parameter Details Entered Values Description Default Date Date P210 R1 Type 0 = Off P211 R1 Function 0 = Off P212 R1 Alarm ID 1 = Off P213 R1 Set 1 0.000 metres P214 R1 Set 2 0.000 metres P216 R1 Allocation...
  • Page 135 Relay 4 Parameter Details Entered Values Description Default Date Date P240 R4 Type 0 = Off P241 R4 Function 0 = Off P242 R4 Alarm ID 1 = Off P243 R4 Set 1 0.000 metres P244 R4 Set 2 0.000 metres P246 R4 Allocation P247...
  • Page 136 LARM Parameter Details Entered Values Description Default Date Date P160 Start Distance P161 End Distance P581 P162 Level 50dB P163 % of Intrusion 100% P164 On Delay 0mins P165 Off Delay 0mins Temperature Parameter Details Entered Values Description Default Date Date P580 Minimum Temperature...
  • Page 137 mA O UTPUT mA Output 1 Parameter Details Entered Values Description Default Date Date P830 mA Out Range 2 = 4 - 20 P831 mA Out Mode 0 = Default P581 P834 Low Level 0.000 metres P581 P835 High Level 6.000 metres P836 Low Limit...
  • Page 138 TABILITY Parameter Details Entered Values Description Default Date Date P870 Fill Damping 10.000 P871 Empty Damping 10.000 P881 Fixed Distance 0.20 metres P882 Process Filter 3 = Slow P883 Gate Expand 0.1m ROCESS Xducer Status 1 Parameter Details Entered Values Description Default Date...
  • Page 139 YSTEM Passcode Parameter Details Entered Values Description Default Date Date P921 Enable Code 1 = Yes P922 Passcode 1997 Backup Parameter Details Entered Values Description Default Date Date P925 Parameter Backup 0 = No System Information Parameter Details Entered Values Description Default Date...
  • Page 140 Daylight Save Parameter Details Entered Values Description Default Date Date P970 DST Enable P971 Difference 01:00 P972 Start Time 02:00 02:00 P973 Start Day P974 Start Week P975 Start Month P976 End Time 02:00 P977 End Day P978 End Week P979 End Month RS232...
