Davey Silensor Servicing Instructions page 7

17.

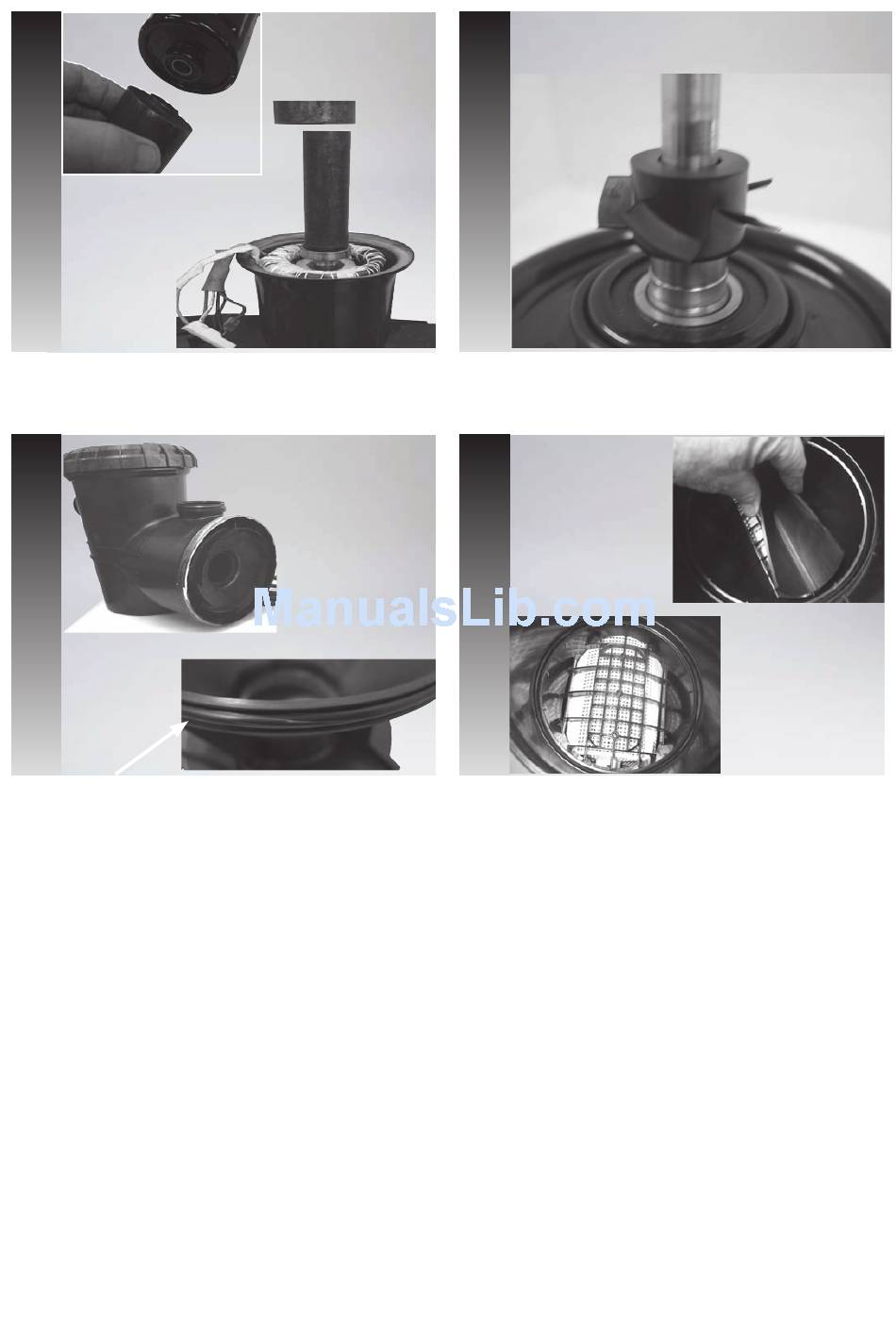

Remove the stator and shell and turn upside down on the
small bearing tool then place back under the press. Insert
the rotor being careful of the windings and then press it
into the bearing with the press.
19.
The diffuser should be inside the front casing simply pull it
out and check for distortion and also check the O-ring that
is on the inside.
18.
Replace the front sealing ring, O-ring, and slinger. The
motor is now ready for reassembly.
20.
Note: The SLS front casing has a removable rubber flap
valve, the SLL has not.
7
