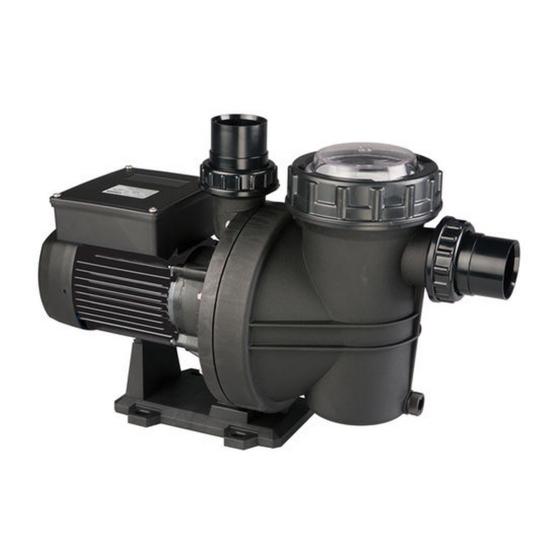

Whisper
TYPHOON C & T-Series
Swimming Pool Pumps
Installation and Operating
WARNING: Failure to follow these instructions and comply with all applicable
codes may cause serious bodily injury and/or property damage.
The installation of this product should be carried out by a person knowledgable
in swimming pool plumbing requirements following the installation instructions
provided in this manual.
Please pass these instructions on to the operator of this equipment.
®
WHISPER Series,
Instructions
Typhoon
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WHISPER Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Davey WHISPER Series

  • Page 1 Whisper Typhoon ® ® WHISPER Series, TYPHOON C & T-Series Swimming Pool Pumps Installation and Operating Instructions WARNING: Failure to follow these instructions and comply with all applicable codes may cause serious bodily injury and/or property damage. The installation of this product should be carried out by a person knowledgable in swimming pool plumbing requirements following the installation instructions provided in this manual.
  • Page 2 Congratulations on the purchase of a quality product from the Davey Water Products range of Pool and Spa Equipment. You are assured of many years of reliable and super efficient performance from your Davey Whisper/ Typhoon swimming pool pump. Read these instructions in their entirety before switching on this pump. If...
  • Page 3 General The purpose of these instructions is to ensure the correct installation and best performance of our pumps. These are single cell centrifugal pumps with built-in filter elements, especially designed for prefiltering and recirculation of water in swimming pools. They are designed to operate with clean water at a maximum temperature of 35°C.
  • Page 4 The suction lines should be structured with a slight slant to prevent the formation of siphons. Electrical connection IMPORTANT INFORMATION: Your Davey pump is Double Insulated to Water Circuit. If equipotential bonding structure is required, then a Equipotential Bonding Point is provided. (Please refer to your local statutes and regulations for AS/NZ 3000 Wiring standards).
  • Page 5 Verifications prior to initial start-up After making the connections defined in the preceding section, unscrew the filter cover and fill the pump prefilter with water to the bottom level of the suction line. Verify that the pump shaft turns freely. Verify that the mains voltage and frequency match those specified on the nameplate of the pump.
  • Page 6 but must contact an authorised technical service. When the time comes to dispose of the pump, it contains no toxic or contaminating materials. The principal components are duly identified for selective breaking. If the supply cord is damaged, it must be replaced by the manufacturer or it’s service agent or a similarly qualified person in order to avoid a hazard.
  • Page 7 DIMENSIONS A 1 ~ C – Q max. Eff. Model max. (kW) 230V µF ± 1 (l/min) (mm) (mm) (mm) (mm) (mm) (mm) (mm PVC) (mm PVC) Whisper 500W 12.2 0.45 <70 Whisper 750W 13.5 0.65 <70 Whisper 1000W 0.85 <70 Typhoon C75M <70...
  • Page 8 If the claim is found to be valid Davey will, at its option, repair or replace the product free of charge. The Davey warranty is in addition to rights provided by local consumer law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
