SPA POOL PUMP
Operating Instructions
WARNING: Failure to follow these instructions and comply with all applicable
codes may cause serious bodily injury and/or property damage.
The installation of this product should be carried out by a person knowledgable in
spa pool plumbing requirements following the Installation Instructions provided in
this manual.
Please pass these instructions on to the operator of this equipment.

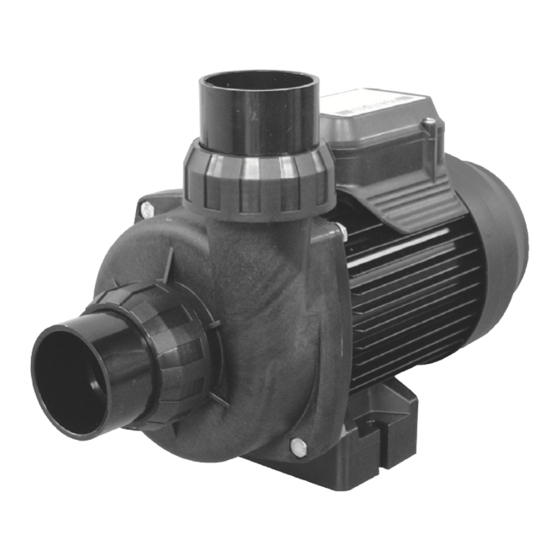

MaxiFlow
Installation and
Advertisement
Table of Contents
Related Manuals for Davey MaxiFlow
Summary of Contents for Davey MaxiFlow
-
Page 1: Operating Instructions
MaxiFlow SPA POOL PUMP Installation and Operating Instructions WARNING: Failure to follow these instructions and comply with all applicable codes may cause serious bodily injury and/or property damage. The installation of this product should be carried out by a person knowledgable in spa pool plumbing requirements following the Installation Instructions provided in this manual. - Page 3 Your Davey MaxiFlow Congratulations on your purchase of a quality product from the Davey range of Pool and Spa Equipment. You are assured of many years of reliable and efficient performance from your Davey MaxiFlow backed by Davey’s two year guarantee. Davey MaxiFlow™ have been designed to circulate swimming pool and spa water in conditions set out in the Australian Standard for swimming pool water quality (AS 3633) or equivalent. They should not be used for any other purpose without first...
-
Page 4: Water Quality
4. Move the pipework with the barrel unions attached until the pump can be pulled clear. NOTE: When making any enquiries about your Davey MaxiFlow be certain to quote the model number from the nameplate located on motor. Water Quality Maintaining balanced water chemistry is important to the life of your spa pool pump. -
Page 5: Installation Diagram
Installation It is preferable to fit stop valves before and after the pump, this will enable the pump to be removed for maintenance without having to drain the spa. Most installations will have a filter of some description. If so it may be fitted on the inlet side of the pump; however it is recommended that it be fitted on the outlet side of the pump (pressure filter). If the filter is fitted on the inlet side it there is a distinct possibility that the water lock will be lost and that the pump may fail to prime on restart if an attempt is made to fit a cartridge type filter (on the inlet) it may result in restricted water flow, premature cartridge failure and / or other problems. A cartridge filter should be regarded as a pressure filter only. Poor design of the spa (inlet/s too high), allowing air to enter on low water levels, may also lead to this problem. Air in the system may lead to pump damage and / or heater damage Finally when installing any pool, spa or bath it is important to ensure that the pool, spa or bath is clean and free of any particles. Leaves, pine needles, grit, scoria, sand and other similar matter, if allowed to enter the pump, can cause considerable... -
Page 6: Starting The Pump
Starting the Pump To operate efficiently and prevent pump damage there must be a free flow of water to and from the pump. Before starting ensure that: - all pipework is correctly sealed. - the pool/spa water level is at the correct height. - that all appropriate valves are open and there is nothing preventing the flow of water through the system. 1. First prime the pump by ensuring that the pump is below the water level of the spa pool. -
Page 7: Weather Protection
Warning! Ensure that an electrical isolation switch is located with easy access so that the pump can be switched off in an emergency. Pipe Connection The MaxiFlow pumps are non-self priming; this means that the pump must be mounted below the minimum water line. This MaxiFlow pump is designed to be operated with 50mm diameter pipe-work. To get best performance ensure that there are a minimum number of bends in the pipe-work. It is preferable to use flexible piping in order to get the best performance. The plumbing should have no restrictions that will impede or restrict the water flow. - Page 8 POWER CONNECTIONS AND WIRING MUST BE CARRIED OUT BY AN AUTHORISED ELECTRICIAN. DANGER - Hazardous suction. Do not block water entry into filtration system with any part of your body as the pressure can trap hair or body parts, causing severe injury or death. Do not block suction.
-
Page 9: Troubleshooting
4. Motor is burnt out - burning smell is evident. Replacement is required. If you are unable to resolve any installation or operation difficulties with your MaxiFlow pump, contact the supplier from whom it was purchased or your nearest Authorised Davey Pool Equipment Service Centre. If any further assistance is required, contact the Davey Customer Service Centre at the... - Page 10 Notes & Service History .......................................................................................................................................................................................................................................................................................................................................................................................
- Page 12 Customer Service line on 1300 367 866 in Australia, or 0800 654 333 in New Zealand, or send a written letter to Davey at the address listed below. On receipt of your claim, Davey will seek to resolve your difficulties or, if the product is faulty or defective, advise you on how to have your Davey product repaired, obtain a replacement or a refund.
