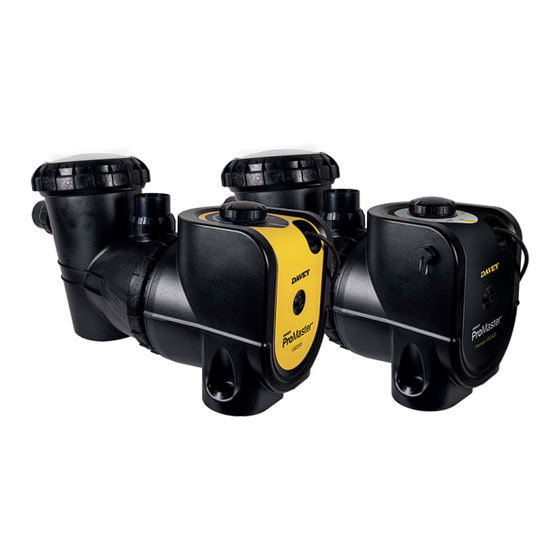

Variable Speed Pool Pumps with Bluetooth
Installation and Operating Instructions
Models: PM200BT & PM400BT
WARNING: Failure to follow these instructions and comply with all
applicable codes may cause serious bodily injury and/or property damage.
This pump requires professional expertise for installation and
maintenance. The installation of this product should be carried out by a
person knowledgeable in swimming pool plumbing requirements and
who follows the installation instructions provided in this manual.
Please pass these instructions on to the operator of this equipment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProMaster PM400BT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Davey ProMaster PM400BT

Summary of Contents for Davey ProMaster PM400BT

  • Page 1 Variable Speed Pool Pumps with Bluetooth Installation and Operating Instructions Models: PM200BT & PM400BT WARNING: Failure to follow these instructions and comply with all applicable codes may cause serious bodily injury and/or property damage. This pump requires professional expertise for installation and maintenance.
  • Page 2 Read these instructions in their entirety before switching on this pump. If you are uncertain as to any of these installation and operating instructions please contact your Davey dealer or the appropriate Davey office as listed on the back of this document.
  • Page 3 If you are using low flow settings on the ProMaster pump (e.g. Speed 1 - 4), Davey recommends that you check the compatibility of the speed or minimum flow rate required to run specific pool equipment such as: •...

  • Page 4: Power Connection

    Power Connection Davey ProMaster is suitable for connection to a nominal 240 volt / 50Hz power supply, and is equipped with a cable and 3 pin plug. If a power outlet is not available within 3 metres of the pump, a 3 pin power point in a safe, dry place may need to be provided by an electrician.

  • Page 5: Guidelines For Recommended Pump Operating Hours

    In accordance with AS/NZS 60335.1 we are obliged to inform you that this appliance appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

  • Page 6: Technical Specifications

    Technical Specifications Model PM200BT PM400BT Head (m) Speed 1 to 10 (1500 - 3600) Speed 1 – 10 (1050 – 3100) Backwash Speed – Variable Backwash Speed – Variable Enclosure Class (IP) Insulation Class 220/240 AC 220/240 AC Voltage (V) 50/60 50/60 Frequency (Hz)
  • Page 7 Installation of the Davey ProMaster VSD Pool pump with Bluetooth Location The pump should be located as close to the water as practicable and mounted on a firm base in a well-drained position, high enough to prevent any flooding. It is the installer’s/owner’s responsibility to locate the pump such that the nameplate can be...

  • Page 8: Weather Protection

    Weather Protection It is recommended that the pump is protected from the weather. Enclosures should be ventilated to prevent condensation build-up. Wiring Connection Please refer to the below schematic for information on how to correctly install your pump. Pipe Connection Barrel unions are provided for connecting to the piping from the pool.
  • Page 9 Prior to using this pump you must ensure that: Checklist • Speed (including priming and backwash) setting chosen is a compatible setting with other pool equipment • The pump is installed in a safe and dry environment • The pump enclosure has adequate drainage in the event of leakage •...

  • Page 10: Low Energy Operation

    Using your ProMaster VSD pump with a Davey Salt Water Chlorinator Davey salt water chlorinators require a minimum flow rate of 80 litres per minute (lpm) through the chlorinator cell for best efficiency and cell life. Please refer to the performance graph below as a reference for the flow in your pool and refer to the pressure indicated by the gauge on the media or cartridge filter.
  • Page 11 PM200BT - Performance Input Output Speed Duty Flow Setting Point (lpm) Dial 1 0.17 0.12 Dial 2 0.28 0.19 Dial 3 0.39 0.28 Dial 4 0.53 0.37 Dial 5 0.70 0.49 Dial 6 0.88 0.61 Dial 7 1.08 0.76 Dial 8 1.26 0.88 Dial 9...
  • Page 12 PM400BT - Performance Dial position No. 10 Dial position No. 9 Dial position No. 8 Dial position No. 7 Dial position No. 6 Dial position No. 5 Dial position No. 4 Dial position No. 3 Dial position No. 2 Dial position No. 1 Flow ( lpm ) Input Output...

  • Page 13: Features & Functionality

    Features & Functionality Your Davey ProMaster VSD Pool Pump has several operational features: • Multi-Coloured LED indicator light Used for identifying required settings for programming time for full speed (Boost) cycling and warnings: > Solid Green = Normal Dial Operation >...

  • Page 14: Bluetooth App Setup

    - 1. Open the “App Store” app that is available on your device. - 2. Search “Davey Pool Pump” - 3. Install the app on your device The app can be installed on to as many devices as desired, however, only one device can control the pump at any given time.
  • Page 15 • External Timer / Chlorinator A pop-up will appear asking if you are using an external timer or chlorinator to control your pump. Please Select “YES” or “NO” This pop-up will appear ** This is a safety function and will not allow the chlorinator to run without the pump working.

  • Page 16: Setting A Schedule

    The “Weekly cycle” option can be set for the entire week, giving you the ability to alter daily pump cycles depending on weather, bather load etc. Select if you would like the daily cycle or the weekly cycle. Setting a Schedule - Select the box which relates to the time that you require the pump to operate.

  • Page 17: Priming Speed / Max Speed

    Priming Speed / Max Speed Each time your pump starts it will go through 2 minutes of priming to ensure there is water in the system. You can adjust the speed in which it does this between 5 & 10. The speed you set will limit the maximum speed the pump will run in manual or schedule mode.

  • Page 18: Pump Fault Finding

    Pump Fault Finding In the instance that there is a fault, the following screen will appear, with text description below the fault indicating how to remedy.

  • Page 19: Advanced Setup

    Advanced Setup External AUX Connection Overview (PM400BT model only) Your ProMaster PM400BT has an RJ45 style waterproof socket to allow for external control of motor speed and other functionality. A standard RJ45 network cable (without boot) can be used. Simply remove the connector from one end and feed the cable back through the waterproof housing.

  • Page 20: Digital Control Inputs

    WARNING: A qualified electrician is required to carry out the work shown below. The ProMaster PM400BT pump with Bluetooth can be controlled by other equipment to turn it on to high speed (or any other preset speeds, contact Davey for details). This is to achieve maximum efficiency, for example, when using a gas heater, or a heat pump.

  • Page 22: Operating Your Suction Pool Cleaner

    RS485 RS485 inputs are reserved for Davey service connection and software updates. Operating your Suction Pool Cleaner Before installing or purchasing a pool cleaner for use with your ProMaster pool pump, it is important to know the minimum flow rates required for it to...

  • Page 23: Troubleshooting

    Maintenance: Emptying the Strainer Basket The strainer basket should be inspected frequently through the transparent lid and emptied when a build-up of rubbish is evident. The directions below should be followed. 1. Switch off pump. 2. Unscrew the strainer basket lid anti-clockwise and remove. 3.
  • Page 24 If the pump does not operate, the following conditions may apply: 1. The power is not connected. For 240 volt only, check the power point by plugging in a portable appliance to ensure power is available. Also check fuses and the main power supply switch 2.

  • Page 25: Water Quality

    Water Quality Maintaining balanced water chemistry is important to the life of your pool pump. This pump is designed to be used with Pool & Spa water, balanced in accordance with Langelier Saturation Index, with a pH level of between 7.2 and 7.6 and is regularly treated with a chlorine sanitising agent with the level not exceeding 3.0 ppm.
  • Page 26 NOTES...
  • Page 27 Alternatively you can phone our Customer Service line on 1300 367 866 in Australia, or 0800 654 333 in New Zealand, or send a written letter to Davey at the address listed below. On receipt of your claim, Davey will seek to resolve your difficulties or, if the product is faulty or defective, advise you on how to have your Davey product repaired, obtain a replacement or a refund.
  • Page 28 Website: davey.com.au Website: daveyeurope.eu Website: daveyuae.com ® Davey is a trademark of Davey Water Products Pty Ltd. © Davey Water Products Pty Ltd 2018. P/N 403301 * Installation and operating instructions are included with the product when purchased new. They may also be found on our website.
