Zaxcom QRX200

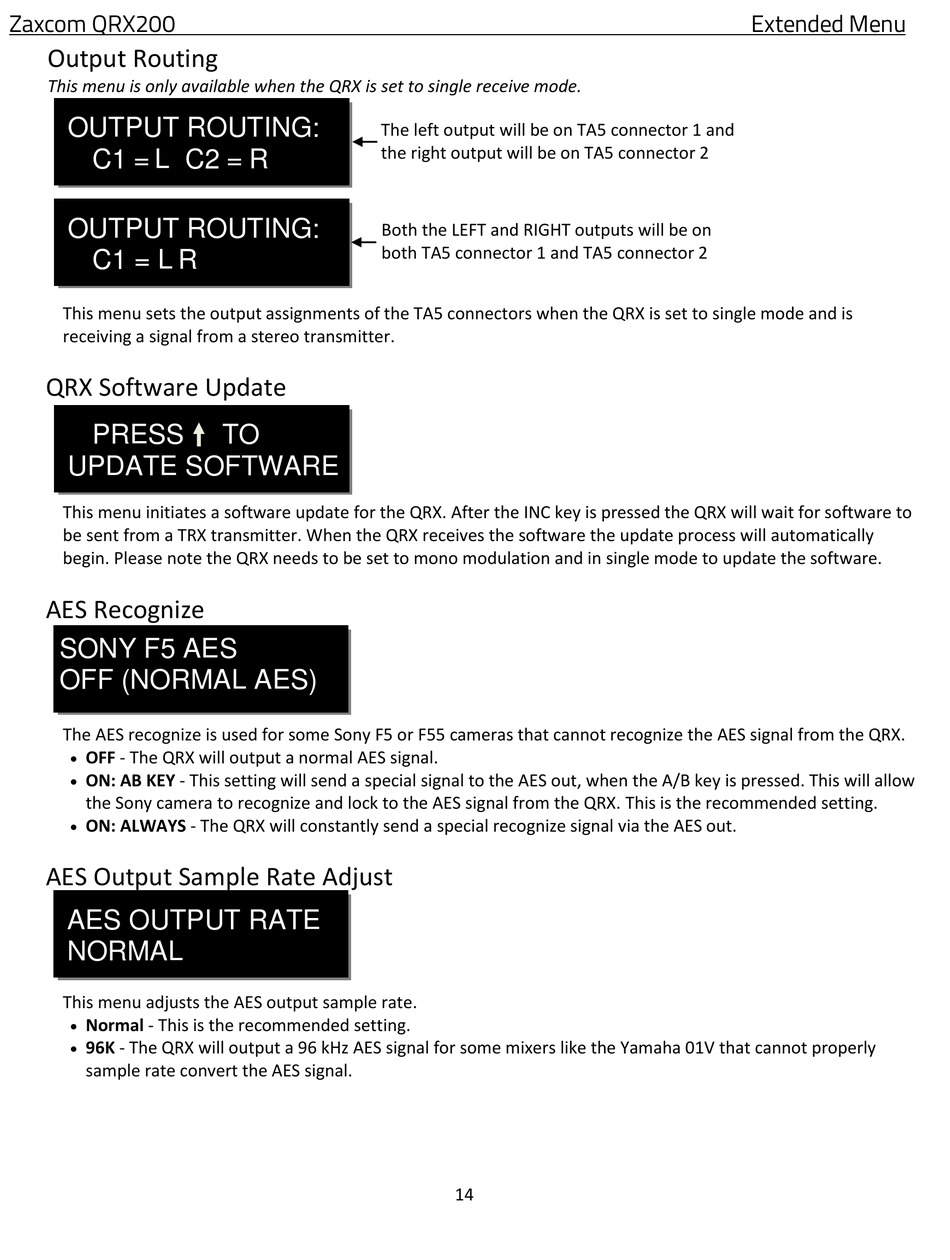

Output Routing

This menu is only available when the QRX is set to single receive mode.
OUTPUT ROUTING:
C1 = L C2 = R
OUTPUT ROUTING:
C1 = L R
This menu sets the output assignments of the TA5 connectors when the QRX is set to single mode and is
receiving a signal from a stereo transmitter.

QRX Software Update

PRESS
UPDATE SOFTWARE
This menu initiates a software update for the QRX. After the INC key is pressed the QRX will wait for software to
be sent from a TRX transmitter. When the QRX receives the software the update process will automatically
begin. Please note the QRX needs to be set to mono modulation and in single mode to update the software.

AES Recognize

SONY F5 AES
OFF (NORMAL AES)
The AES recognize is used for some Sony F5 or F55 cameras that cannot recognize the AES signal from the QRX.

OFF - The QRX will output a normal AES signal.

ON: AB KEY - This setting will send a special signal to the AES out, when the A/B key is pressed. This will allow
the Sony camera to recognize and lock to the AES signal from the QRX. This is the recommended setting.

ON: ALWAYS - The QRX will constantly send a special recognize signal via the AES out.

AES Output Sample Rate Adjust

AES OUTPUT RATE
NORMAL
This menu adjusts the AES output sample rate.

Normal - This is the recommended setting.

96K - The QRX will output a 96 kHz AES signal for some mixers like the Yamaha 01V that cannot properly
sample rate convert the AES signal.
The left output will be on TA5 connector 1 and
the right output will be on TA5 connector 2
Both the LEFT and RIGHT outputs will be on
both TA5 connector 1 and TA5 connector 2
TO
14
Extended Menu
