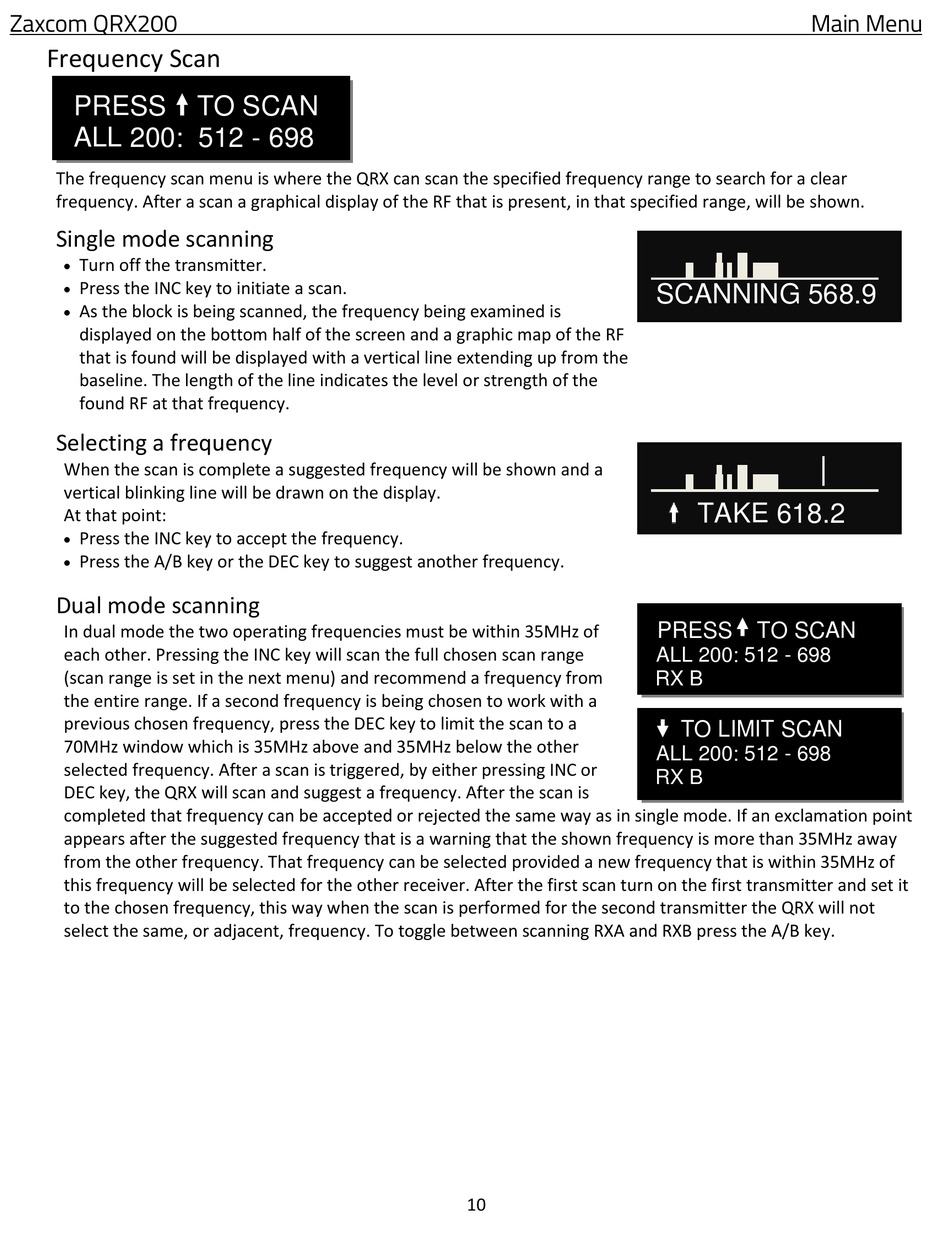

Frequency Scan

PRESS
ALL 200: 512 - 698
The frequency scan menu is where the QRX can scan the specified frequency range to search for a clear
frequency. After a scan a graphical display of the RF that is present, in that specified range, will be shown.

Single mode scanning


Turn off the transmitter.

Press the INC key to initiate a scan.

As the block is being scanned, the frequency being examined is
displayed on the bottom half of the screen and a graphic map of the RF
that is found will be displayed with a vertical line extending up from the
baseline. The length of the line indicates the level or strength of the
found RF at that frequency.

Selecting a frequency

When the scan is complete a suggested frequency will be shown and a
vertical blinking line will be drawn on the display.
At that point:

Press the INC key to accept the frequency.

Press the A/B key or the DEC key to suggest another frequency.

Dual mode scanning

In dual mode the two operating frequencies must be within 35MHz of
each other. Pressing the INC key will scan the full chosen scan range
(scan range is set in the next menu) and recommend a frequency from
the entire range. If a second frequency is being chosen to work with a
previous chosen frequency, press the DEC key to limit the scan to a
70MHz window which is 35MHz above and 35MHz below the other
selected frequency. After a scan is triggered, by either pressing INC or
DEC key, the QRX will scan and suggest a frequency. After the scan is
completed that frequency can be accepted or rejected the same way as in single mode. If an exclamation point
appears after the suggested frequency that is a warning that the shown frequency is more than 35MHz away
from the other frequency. That frequency can be selected provided a new frequency that is within 35MHz of
this frequency will be selected for the other receiver. After the first scan turn on the first transmitter and set it
to the chosen frequency, this way when the scan is performed for the second transmitter the QRX will not
select the same, or adjacent, frequency. To toggle between scanning RXA and RXB press the A/B key.
