CHAPTER 2: Local Operation

Front Panel

1RU and 2RU versions are shown below. 1RU front panels have the two displays on
the right for metering, while the 2RU form factor has all meters on the right hand
display.
Left
Speakers
We use audio mixer terminology of "solo" when referring to muting all but a specific
audio channel or subgroup. Since the terms "group" and "subgroup" have different
meanings in SDI vs. pro audio, we use the term "cluster" to define a group of audio
channels forming an audio program—such as Mono (1.0), Stereo (2.0) or Surround
(5.1 or 7.1).
The numbers for a meter position only indicate its relative position on the display,
and not any particular channel number. Meter numbers only serve as references for
monitor configurations at the Web GUI level. Different presets typically have
different input channels assigned to various meters.
Operations and controls for the 2RU version are identical to the 1RU, except for
sizes of certain items like displays and speakers.
Left Speaker

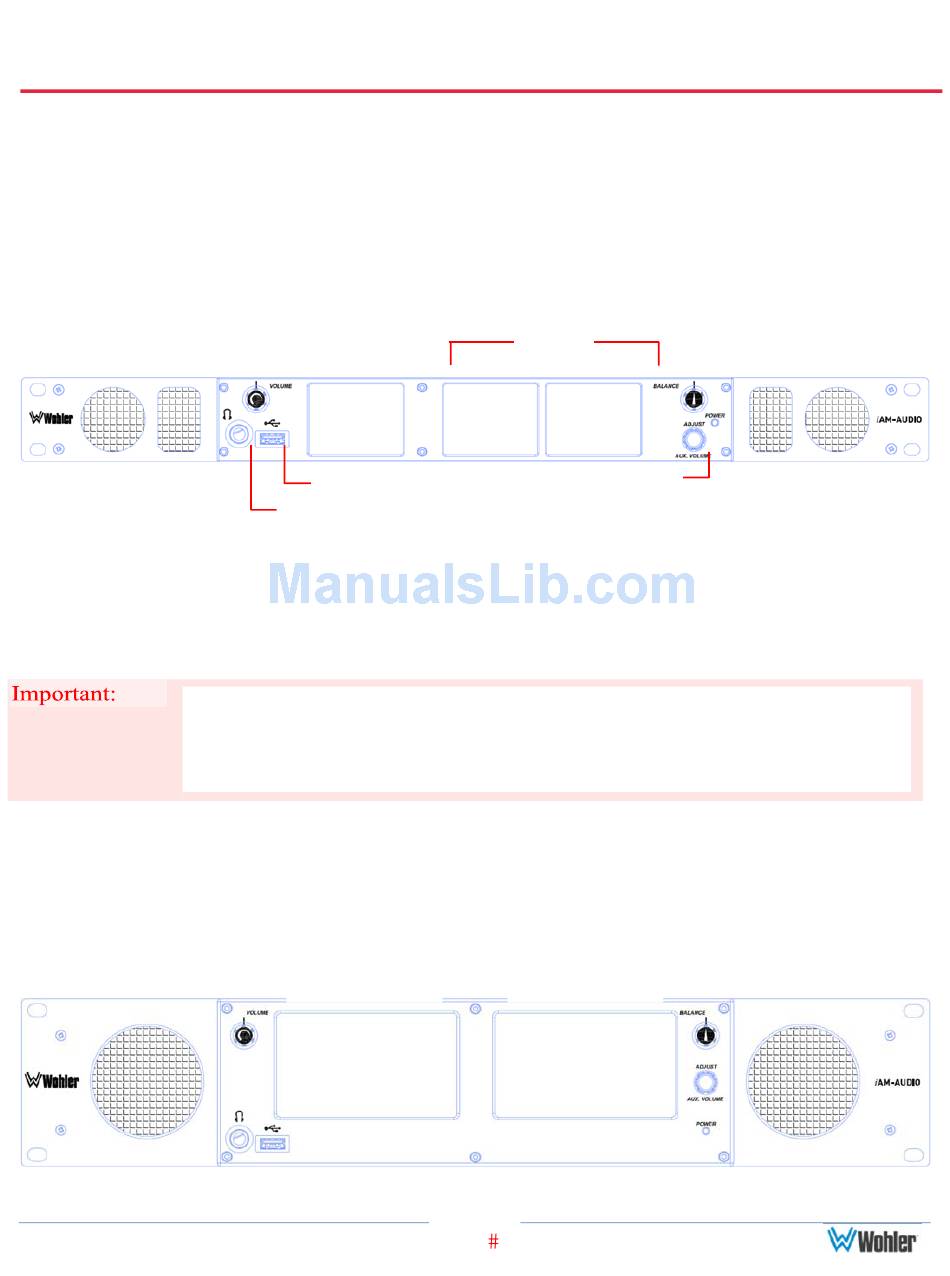

Figure 2–1: 1RU Front Panel Layout
Menu/Option
Volume
Display
Control
USB Port
Headphone
Figure 2–2: 2RU Front Panel Layout
Menu /Option
Display
Level
Meters
Adjust / Aux Volume
Level Meters
Display
Page
10
Balance
Control
Right
Speakers
Right Speaker
