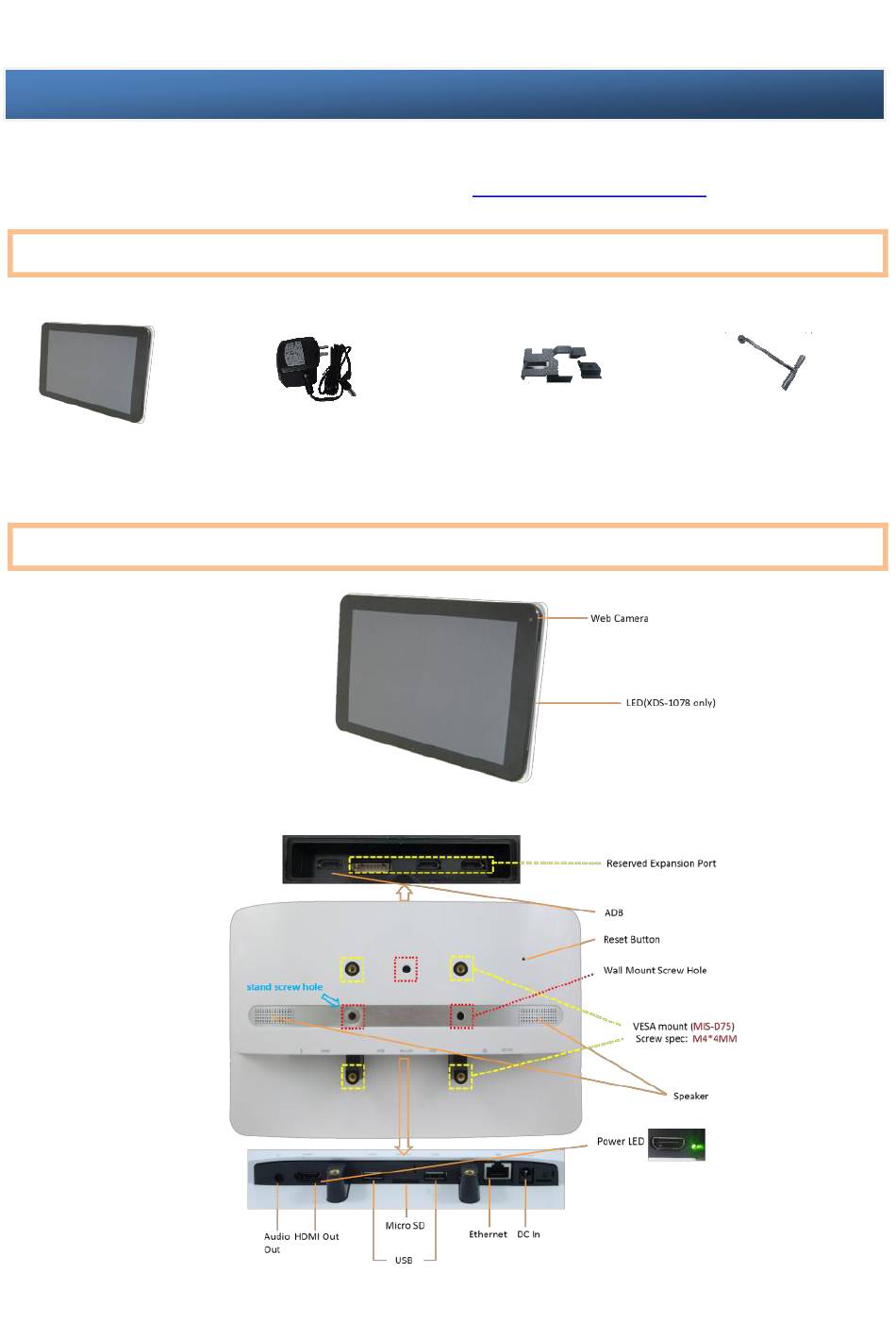

XDS-1070/1078 Quick Start Guide This printed quick guide provides a quick walkthrough of the set up process. For complete documentation, please visit www.digisignage.com Box Contents AC Adapter Power and micro SD Table Stand Main Unit (with select power plug) card brackets...
Mounting and Installation Mounting options Mounting Option 1: [VESA mount] Supporting VESA standard: VESA MIS-D75 (75*75mm) Supporting screw: M4*4mm (exclude the mounting plate thickness) Mounting Option 2: [Using back cover] (power / SD card brackets MUST NOT be installed while mount on back cover) Release the back Install back cover : Route power and network cable from...
Page 3
System setup INSTALL the AC power adapter → You should see the player boot up screen as shown in right. WAIT while player boots up → Once you see “Basic settings” on screen, the unit is ready for content update or menu configuration.
Content Management Please consult the software documentation for information specific to your management solution. Image Retention Disclaimer When an image is displayed on-screen for prolonged periods of time, you may see a faint image after it is replaced. This is expected normal behavior for displays.
Page 5
3. Wait until the power LED flashes, release reset button and wait for system to initialize to factory default state.
