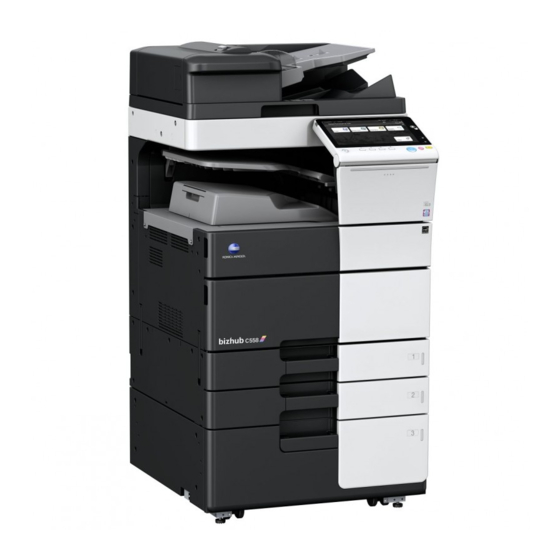

Konica Minolta bizhub C658 Installation Manual

Konica Minolta bizhub C658/C558/C458
Specification & Installation Guide
bizhub C658/C558/C458 Specifications
Type Full Color Printer/Copier/Scanner
Document holder Stationary (mirror scanning)
Photoconductor OPC
Luminous source LED light-source illumination
Copying system Laser electrostatic copy method
Developing system Dry-2 component developing method
Fusing system Belt Fusing
Resolution Scanning: 600 x 600 dpi
Printing: 1200 x 1200 dpi
Document holder Types: sheets, books (2-page spreads),
three-dimensional objects
Size: Maximum 11" x 17"
Weight: 4.5 lb.
Paper Thin Paper (14 lb. to 15.5 lb.)*
Plain Paper (16 lb. to 24 lb.)
Thick Paper 1 (24.25 lb. to 32 lb.)
Thick Paper 1+ (32.25 lb. to 41.75 lb.)
Thick Paper 2 (42 lb. to 55.5 lb.)
Thick Paper 3 (55.75 lb. to 68 lb.)
Thick Paper 4 (68.25 lb. to 79.75 lb.)**
Recycled Paper (16 lb. to 24 lb.)
Special Paper (16 lb. to 24 lb.)
Letterhead (16 lb. to 24 lb.)
Color Paper (16 lb. to 24 lb.)
1-Sided Special Paper (16 lb. to 24 lb.)
Banner Paper** (34 lb. to 55.5 lb.)
OHP Transparencies**, envelopes**,
label sheets**, tabs**, postcards**
*Cannot be fed through the bypass tray.
**Can only be fed through the bypass tray; Monochrome
copying/printing on transparencies is supported. Color
copying/printing on transparencies is NOT supported.
1st Tray:
Copy sizes
11" x 17" to 8.5" x 11", 5.5" x 8.5", 8" x 13"*
2nd Tray:
12.25" x 18" to 8.5" x 11", 5.5" x 8.5", 8" x 13"*
Bypass Tray:
12" x 18" to 5.5" x 8.5", 12.25" x 18", 4" x 6",
8" x 13"*, Banner Paper
* There are six Foolscap sizes: 220 x 330mm (L), 8.5" x 13.5",
8.5" x 13" (L), 8.25" x 13 (L), 8.12" x 13.25" (L) and 8" x 13"
(L). Any one of these sizes can be selected. For details,
please consult with your authorized Konica Minolta Service
representative.
Paper tray 1st Tray and 2nd Tray:
capacity Thin Paper/Plain Paper/Recycled Paper/
Special Paper/Letterhead/Color Paper/
1-Sided Special Paper: 500 sheets;
Thick Paper 1/1+/2/3: 150 sheets
Paper tray Bypass Tray:
capacity (cont.) Plain Paper/Recycled Paper/Special
Paper/Letterhead/Color Paper/1-Sided
Special Paper: 150 sheets; Thick Paper
1/1+/2/3/4/OHP Transparencies/
Postcards/Tabs: 20 sheets; Envelopes: 10;
Banner Paper/Label sheets: 10 sheets
Copy exit tray Thin Paper: 100 sheets
capacity Plain Paper: 250 sheets
Thick Paper: 10 sheets
Overhead Projection
Transparencies*: 1 sheet
*Can only be fed through the bypass tray; Monochrome
copying/printing on transparencies is supported. Color
copying printing on transparencies is NOT supported.
Warm-up time Color and BW less than 25 seconds
(at room temperature/73.4° F)
Image loss width Leading edge: 0.1875"
Trailing edge: 0.125"
Rear edge: 0.125"
Front edge: 0.125"
C658: Color: 4.0 sec. or less
First copy
B/W: 3.0 sec. or less
C558: Color: 4.4 sec. or less
B/W: 3.5 sec. or less
C458: Color: 5.1 sec. or less
B/W: 4.0 sec or less
Print speed*: bizhub C658:
(Full Color/B&W) Thin paper: 45 sheets/min.
(Simplex/Duplex) Plain paper: 65 sheets/min.
Thick 1/Thick 1+/Thick 2: 32 sheets/min.
Thick 3: 28/32 sheets/min.
Thick 4: 27/30 sheets/min. (from Bypass)
bizhub C558:
Thin paper: 38 sheets/min.
Plain paper: 55 sheets/min.
Thick 1/Thick1+/Thick 2/Thick 3:
28 sheets/min.
Thick 4: 27 sheets/min.
bizhub C458:
Thin paper: 31 sheets/min.
Plain paper: 45 sheets/min.
Thick 1/Thick 1+: 28 sheets/min.
Thick 2/Thick 3/Thick 4: 23 sheets/min.
Print speed (ppm)*: Color/B&W (single sided/plain paper):
Size
11" x 17"
8.5" x 14"
8.5" x 11"P
8.5" x 11"L
5.5" x 8.5"L
8" x 13"L
Color/B&W (double sided/plain paper):
Size
11" x 17"
8.5" x 14"
8.5" x 11"P
8.5" x 11"L
5.5" x 8.5"L
8" x 13"L
*Using 1st Tray
07/13/2016
C658 C558 C458
33 27 22
37 31 25
65 55 45
47 40 33
65 55 45
37 31 25
C658 C558 C458
33 27 22
37 31 25
65 55 45
65 37 31
65 55 45
37 31 25
continued
1
