A. Connectors and Pin Assignments
ALARM Connector
A-6
The alarm relay reports major alarms through the ALARM connector.

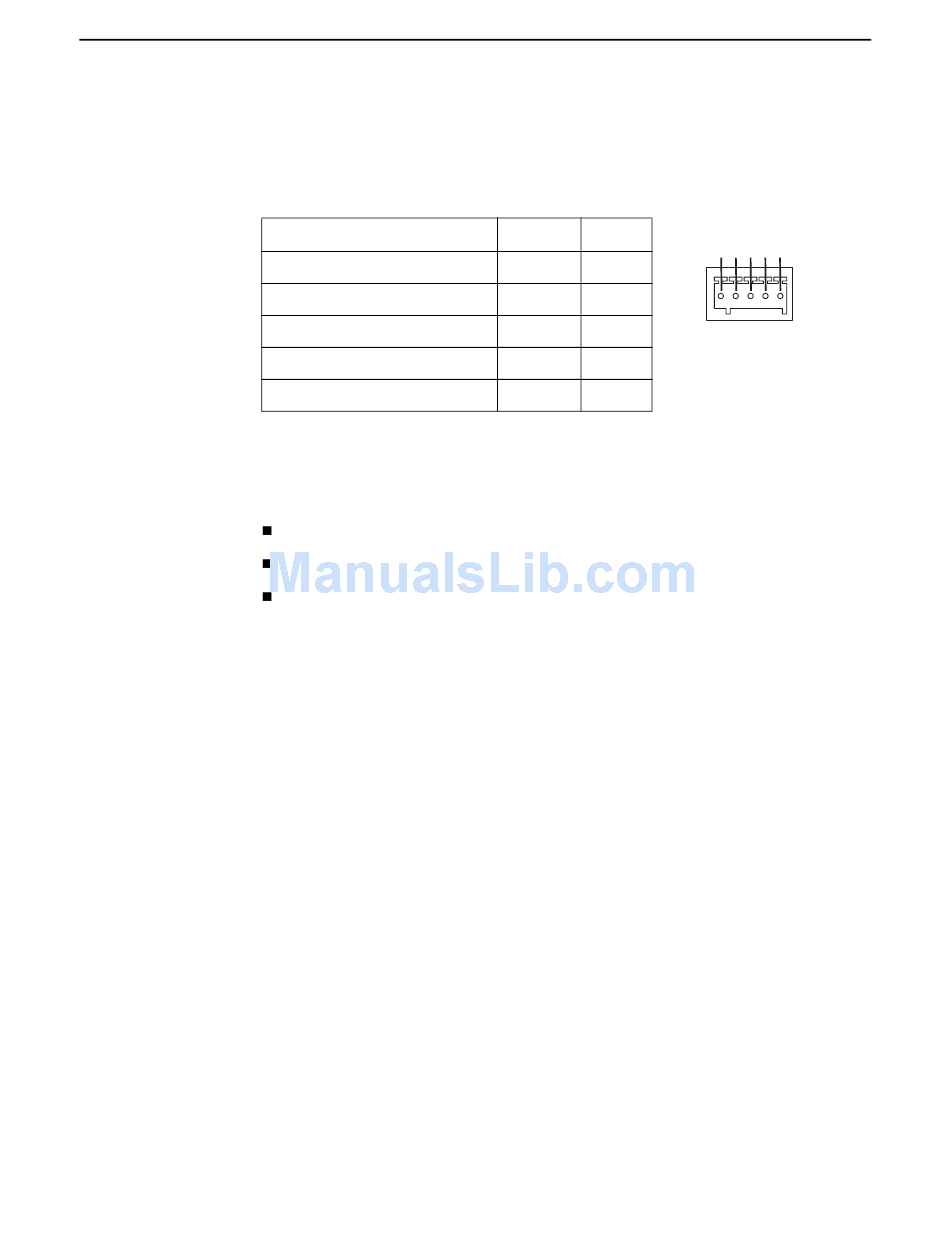

Table A-7. ALARM Connections
Signal
Major Alarm
Common
Minor Alarm
Alarm Sense +
Alarm Sense –
The alarm contacts are closed during normal operation. They open in response to
loss of power, hardware failure, or other alarm conditions. The maximum rated
load for the alarm relays is:
30 VDC: 1.0 Amp
60 VDC: 0.6 Amp
60 VAC: 0.6 Amp
March 2005
Direction Contact
Out
1
Out
2
Out
3
In
4
In
5
5 4 3 2 1
ALARM
03-17453
2600-A2-GN20-40
