Figure 2-10: Bitstorm 1900 Data Connection Via Miu - Paradyne BitStorm IP DSLAM 1900 Installation And Maintenance Manual

BitStorm ™ Server
Layer 2/3 Switch
1900-A2-GN20-00
Step Procedure
Figure 2-10 shows a typical EtherLoop data network connection
with the BitStorm 1900 using an MIU.

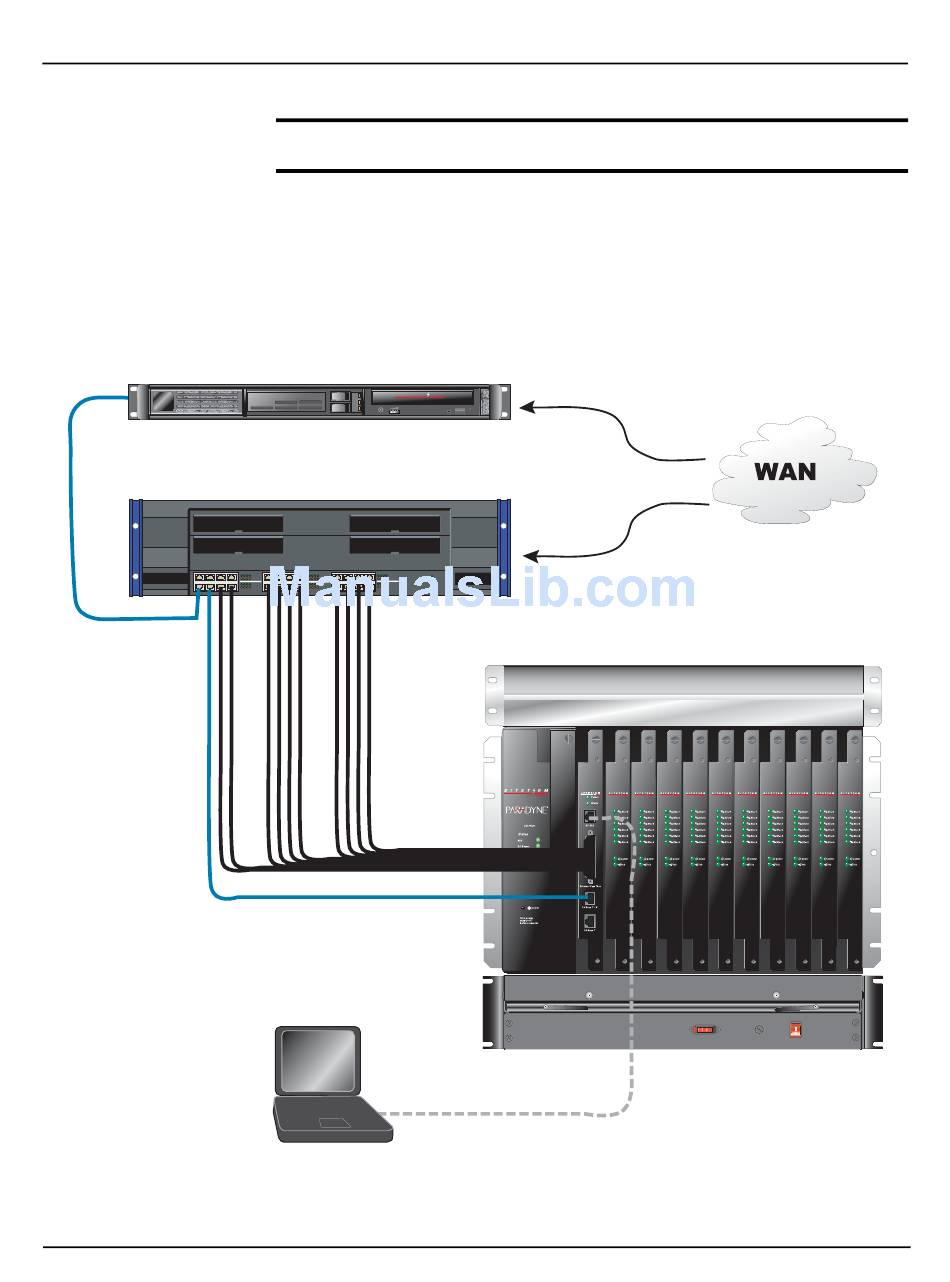

Figure 2-10: BitStorm 1900 Data Connection via MIU
