Task 013: Configuring Remote Management

TELNET Connection
Router
Ethernet Switch
1900-A2-GN20-00
The MIU can be remotely managed via the management 10Base T-X
Ethernet port as shown in Figure 2-20, "Telnet Connection for the
BitStorm 1900."

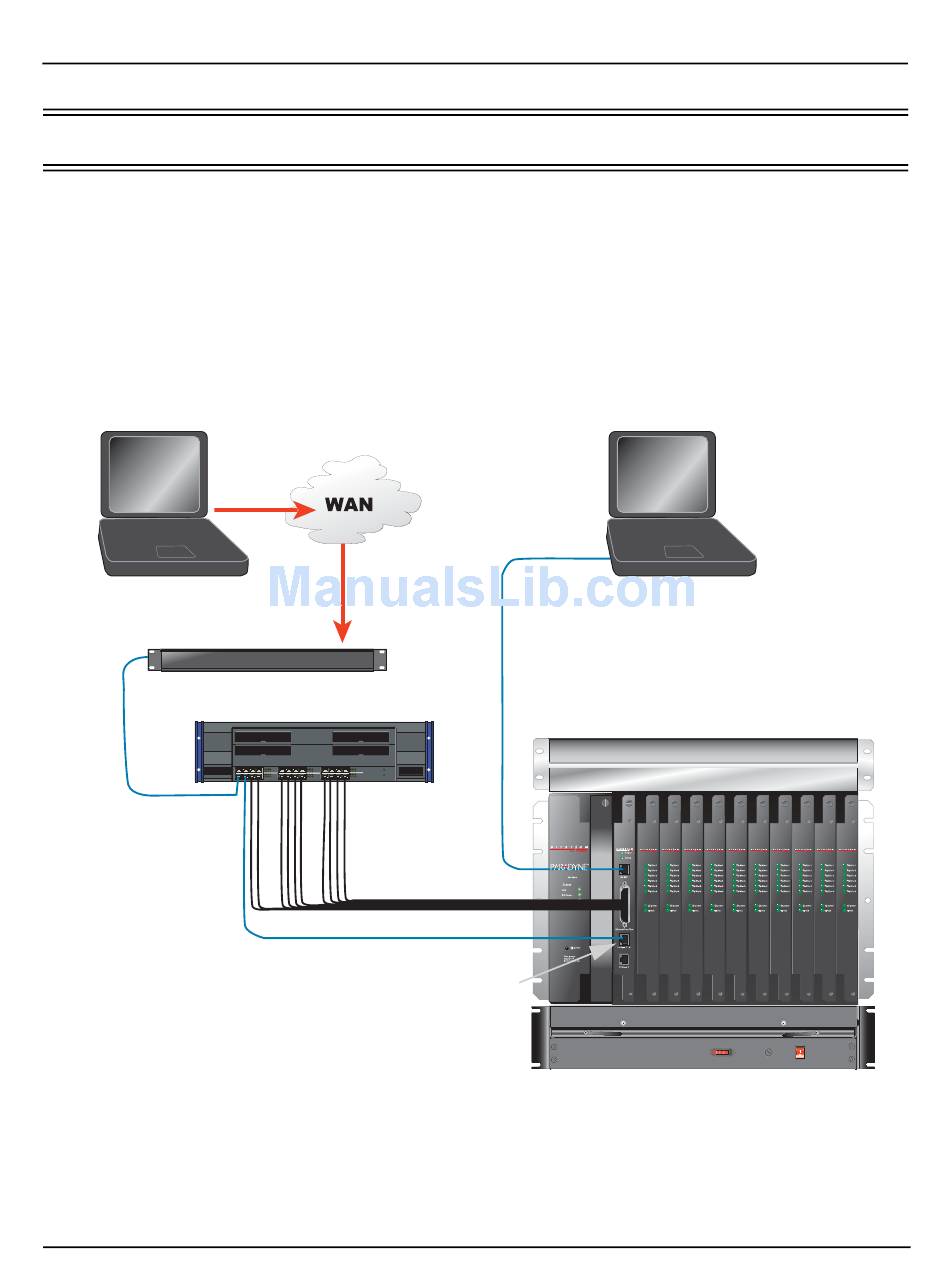

Figure 2-20: Telnet Connection for the BitStorm 1900

1 2 3 4 17 18 19 20
LINK/ACT LINK/ACT LINK/ACT
POWER
100Mb/s 100Mb/s 100Mb/s
LINK/ACT
LINK/ACT LINK/ACT READY
100Mb/s
100Mb/s 100Mb/s
5 6 7 8 21 22 34 24
Decapus Cable
10Base T-X
Ethernet Port
To access and configure the MIU SNMP function, clients will either
use an SNMP Network Management Software solution (i.e., EMS 2.x,
HP OpenView, CastleRock's SNMPc, etc.) or Telenet into the MIU and
use the CLI (Command Line Interface).
BitStorm 1900 Installation and Maintenance Guide
2. BitStorm 1900 Installation and Testing
CRAFT Connection
RJ-11
to
RS-232
BitStorm™ 1900
RJ-45
RJ-45
02-17191
2-87
