Intermediate Cable Specifications
1900-A2-GN20-00
BitStorm 1900 intermediate (loop extension) cables can be obtained
"off-the-shelf" from a variety of vendors, as long as cables chosen meet
the following specifications:
•
Category 5 bundled 25-pair cable made of 24-AWG wires
•
Unshielded, 25-pair female connector (Amp-Champ or equivalent)
on the end connecting to the BitStorm 1900 cable harness
Figure B-10 (shown below) illustrates an example of intermediate
cabling suitable for use with the BitStorm 1900.

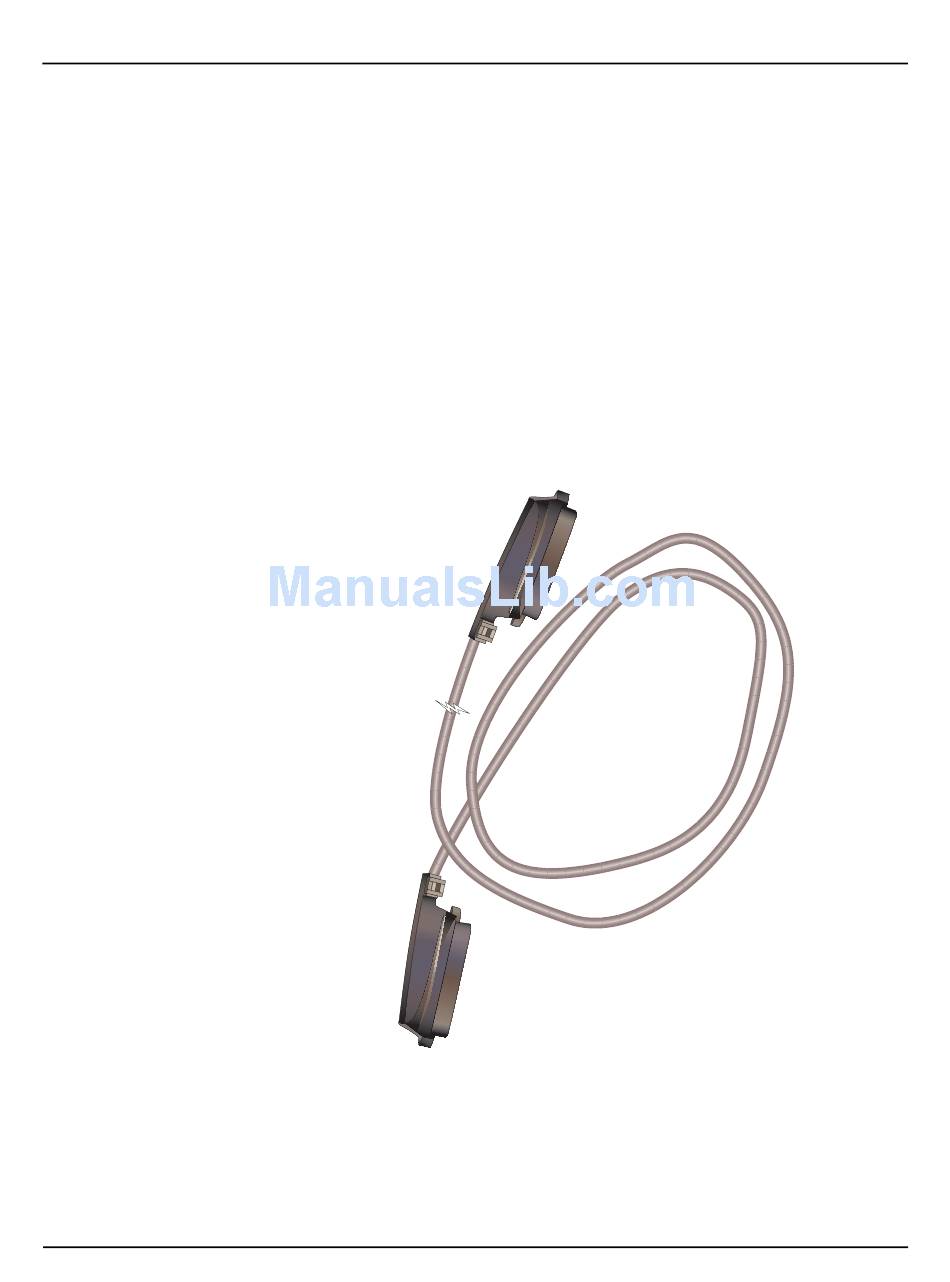

Figure B-10: Intermediate Cable
BitStorm 1900 Installation and Maintenance Guide
Appendix B. Cabling Specifications
02-17204
B-129
