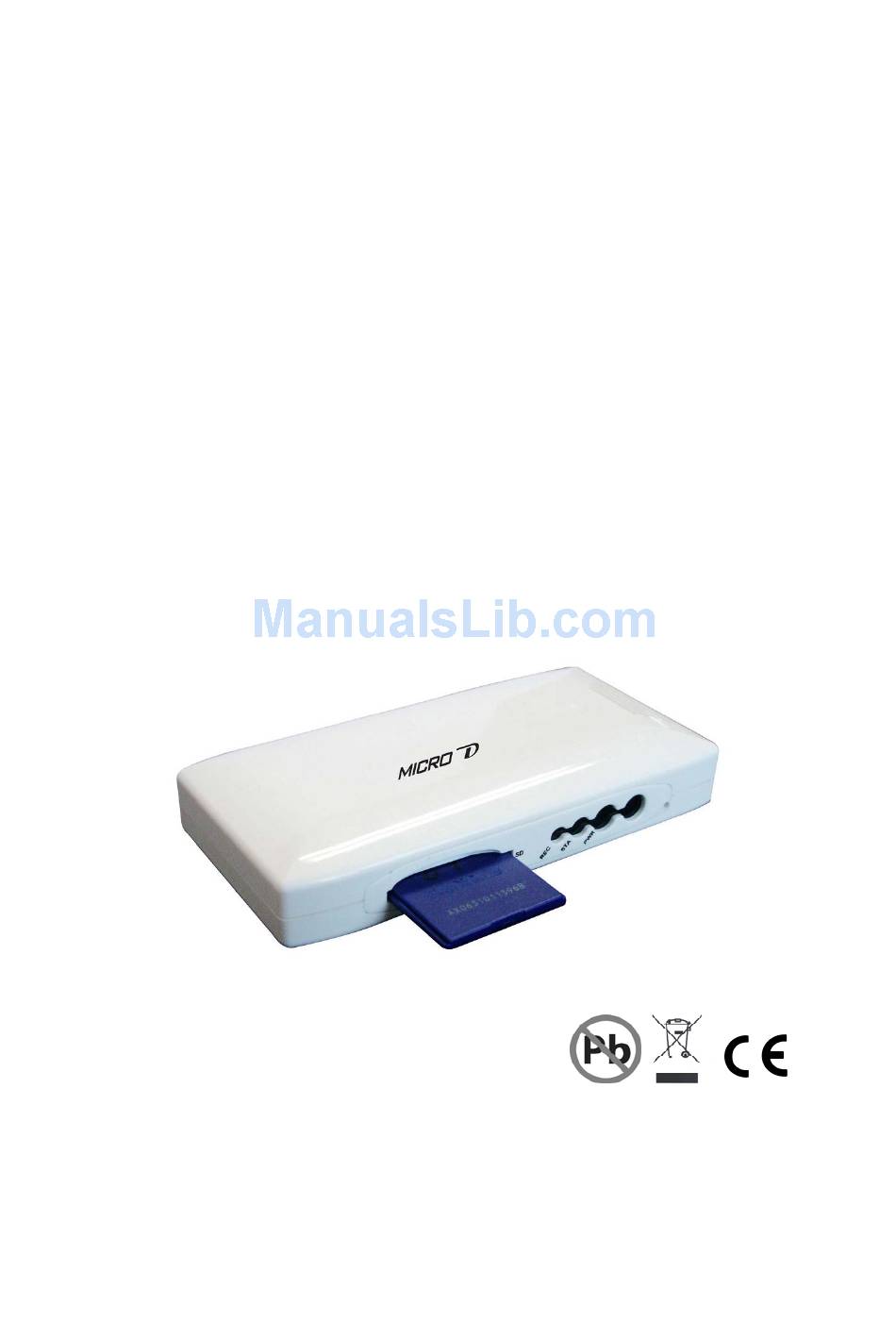

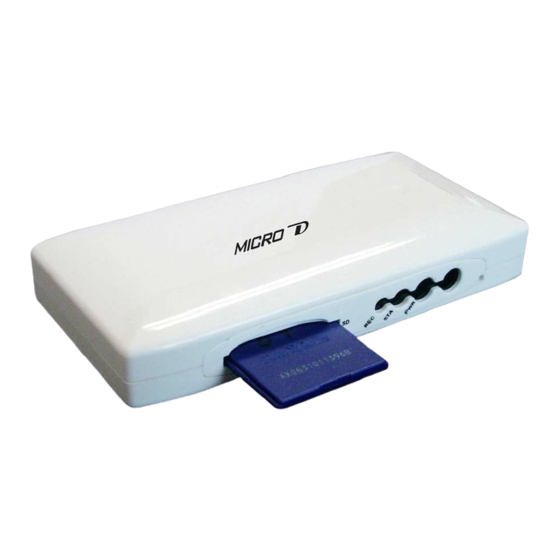

- Page 1 MICRO-D Full Manual V.1.2 H.264 DVR MICRO- Installation & User’s Manual ※ The contents of the manual can be modified without prior notice to customers...
- Page 2 The MICRO-D is manufactured to meet international safety standards. Read the following safety precautions to avoid injury and prevent damage to the MICRO-D or any products connected to it. 1. Use a correct power source. Do not connect this product to a power source that supplies more than the specified voltage (DC12V), as this will cause damage to the unit.
-
Page 3: Table Of Contents
MICRO-D Full Manual V.1.2 TABLE OF CONTENTS Chapter 1: Packing Contents CONTENTS IN THE PACKAGE Chapter 2: Getting To Know Your MICRO-D MICRO-D Chapter 3: Remote control REMOTE CONTROL PANEL Chapter 4: Getting Started OVERVIEW OF SET UP PROCEDURES Chapter 5: Hardware Installation... - Page 4 MICRO-D Full Manual V.1.2 5. EVENT SETUP 5.1 ALARM SETUP 5.1.1 ALARM INPUT 5.1.2 INPUT TYPE 5.1.3 ALARM OUTPUT 5.1.4 ALARM CONTINUE 5.2 MOTION DETECTION 5.2.1 SENSITIVITY 5.3 SCHEDULE SETUP 5.3.1 TIME 5.3.2 TIME AND EVENT 6. SUB MENU 6.1 PASSWORD CHANGE 6.2 FILE INDEX RENEW...
-
Page 5: Contents In The Package
MICRO-D Full Manual V.1.2 Chapter 1: Packing Contents ▶ Contents in the package MICRO-D Main Unit Remote Controller AV-IN / AV-OUT Connector Terminal Block 12V Power Supply Installation CD Quick Guide Max. 32GB SD card SD Reader (Option) Can be used(Option) -
Page 6: Micro-D
⑧ ① This chapter briefly describes the functions of each button on MICRO-D. The buttons are used to operate the basic functions of MICRO-D, such as recording, playback, fast-forward, reverse play and etc. For more details on the set-up and operation of MICRO-D, refer to Chapter 6, MICRO-D MENU. - Page 7 MICRO-D Full Manual V.1.2 Sensor-in / Alarm-out The sensor terminal block is used to connect a sensor such as PIR to the MICRO-D. If you add motion sensor devices to your MICRO-D, the video recording can be triggered by event.
- Page 8 MICRO-D Full Manual V.1.2 Chapter 3: Remote control Start MICRO-D recording or stops recording. Turn the SD power off when pressing the REC button for 3 seconds. (Recording can resume after 20 seconds) Enter OSD menu. MENU On OSD menu, go to the upper menu.
- Page 9 MICRO-D Full Manual V.1.2 On playback mode, playback at X1. On OSD menu, enter values. Enter Search menu. SEARCH On search menu, move to upper search menu. Switch between playback mode and live view mode. MODE Remote Controller Functions of LIVE MODE and PLAY Remote PLABACK MODE...
-
Page 10: Sd Memory Installation
MICRO-D does not record nor play the recorded stream. It just shows the current images from camera connected to MICRO-D. ● The default values of MICRO-D for recording are set up at 30 frames per second with High video quality. If you use 1GB SD Memory, MICRO-D can record approximately for 2 hours in a row. -
Page 11: Connecting Micro-D To Your Tv Set Or Monitor
① Video Input/Output Connection (For TV / monitor screen display) To display images from the MICRO-D, connect the video output signal to your MONITOR or TELEVISION. Any Television with a VIDEO INPUT terminal is suitable for displaying the images. The diagram above shows the video signal connections. - Page 12 Attention Do not take out the SD card or turn off MICRO-D while it is in record mode. It may damage SD card. When in record mode, turn off SD power by first pressing recording button for 3 seconds and then take...
-
Page 13: Alarm Installation
MICRO-D Full Manual V.1.2 ALARM INSTALLATION The MICRO-D has an internal switch for sounding an alarm. When a sensor is triggered, the alarm is activated as well. There are two steps to install an alarm. 1. Connect the alarm power lines to the alarm switch terminal. -
Page 14: Main Menu
MICRO-D * * * * Press ‘MENU’ button on remote control to access to MICRO-D OSD menu. Please refer to ‘Chapter 3: Remote control’ about how to use remote control buttons. Password is ‘0000’ as default. The password can be changed on ‘[SUB MENU] [PASSWORD CHANGE]’. -
Page 15: System Setup
MICRO-D Full Manual V.1.2 3. SYSTEM SETUP Configure current time and ‘DAY LIGHT SAVING’ option. On setting the current time, the field order should be as follows; 2004/02/17 = year/month/day 19:44:32 = hour/minute/second 3.1 TIME & DATE OVERLAY: This is the option to display time and date on the screen 3.2 TIME SET >... -
Page 16: Video Setup
MICRO-D Full Manual V.1.2 4. VIDEO SETUP 4.1 RESOLUTION Select video resolution (4CIF / 2CIF / CIF) VIDEO INPUT (LIVE VIEW) Resolution - PAL HIGH NORMAL 4CIF 704x576 / 25fps 704x576 / 25fps 704x576 / 25fps 2CIF 704x288 / 25fps... -
Page 17: Video Quality
4.7 AUTO RECORDING: When power is up, recording automatically starts 4.8 DISK OVERWRITE If overwrite is set to ON, the MICRO-D will continue recording while automatically overwriting the oldest recorded files when SD memory storage capacity is full. Set to OFF, the recording will stop when the SD Memory is full. -
Page 18: Alarm Setup
OFF when events occur. Note: In NORMAL-CLOSE mode, if an intruder cuts the cable line that connects the sensor to the MICRO-D, sensor recording starts automatically. In NORMAL-OPEN mode, if an intruder cuts the cable line that connects... -
Page 19: Alarm Continue
The index file is automatically generated and stored in the SD card when inserted into MICRO-D. If the index file does not match the files actually stored in the SD card, users can synchronize the index file list and the actual file list. -
Page 20: Live Screen Mode
1.1. SCREEN MESSAGE Message Description INITIALIZING… Displays when the MICRO-D is first booted. Displays when playback and live modes are switched or when the screen WAIT… mode and OSD menu are switched. Displays when there is no recorded files in the SD or no search result on FILE NOT FOUND search mode. -
Page 21: Search Mode
MICRO-D Full Manual V.1.2 1.2. SCREEN ICON Displays when in emergency record mode. EMERGENCY Displays when in motion-triggered record mode. MOTION Displays when in sensor-triggered record mode. ALARM Displays when in schedule record mode. TIME Displays when empty space remains less than 5% of the total SD Card storage. -
Page 22: Search List
MICRO-D Full Manual V.1.2 2. SEARCH MODE When pressing ‘SEARCH’ button, LOGIN window appears. To Enter ‘Search Mode’, enter 4-digit password. 2.1 SEARCH LIST After pressing ‘SEARCH’ button on TIME remote control, click ‘LIST’. The search results will be listed. -
Page 23: Search Factor – Both
MICRO-D Full Manual V.1.2 2.2.3 SEARCH FACTOR – BOTH:‘ When you select BOTH, search factors are combined in multiple conditions such as TIME and ALARM / TIME and MOTION /TIME and MOTION and EMERGENCY etc. 2.2.4 SEARCH FACTOR – NONE: To search all the recorded files stored in the SD card. - Page 24 MICRO-D Full Manual V.1.2 APPENDIX TECHNICAL SPECIFICATION ITEM DESCRIPTION VIDEO Encoding H.264 Input Channel 1 Ch. Input impedance 75 ohm Unbalanced Input Format PAL/NTSC (Auto Detection), Composite, Auto detection function Maximum Input 1.0Vp-p @ 75 Ohm Unbalanced Output Channel 1 Ch.
- Page 25 MICRO-D Full Manual V.1.2 Input 1 Ch. TTL(Internal full-up) Output 1 Ch. TTL(Open collector) OPERATING MODE Searching Method Time/Event Operating Mode Live/Playback/Menu VIEWER SOFTWARE Monitoring Environment Client S/W Connection Supporting 1 Client A/Video Input 1Port, Female Stereo Phone Jack(include Jack Conversion Cable)
- Page 26 MICRO-D Full Manual V.1.2 Approximate Recording Time Table 4CIF (704x480 / D1) Recoding Time (NTSC/PAL): SANDISK – SD/SDHC MEMORY Memory Usable Memory HIGH / 4CIF / 25fps NORMAL / 4CIF /25fps LOW / 4CIF / 25fps 512 MB 480 MB...
