Summary of Contents for Paradox Digiplex DGP2-640

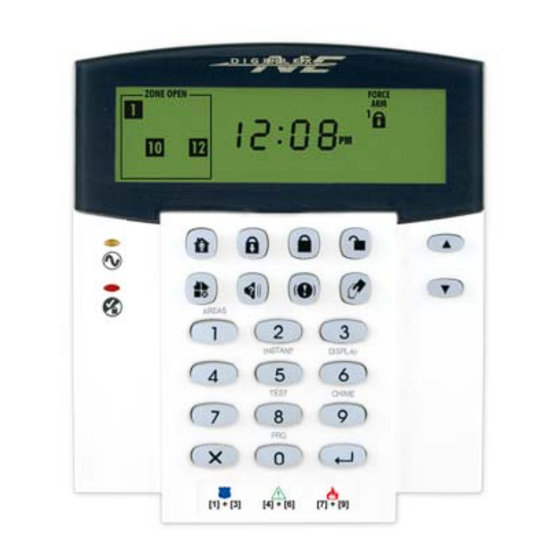

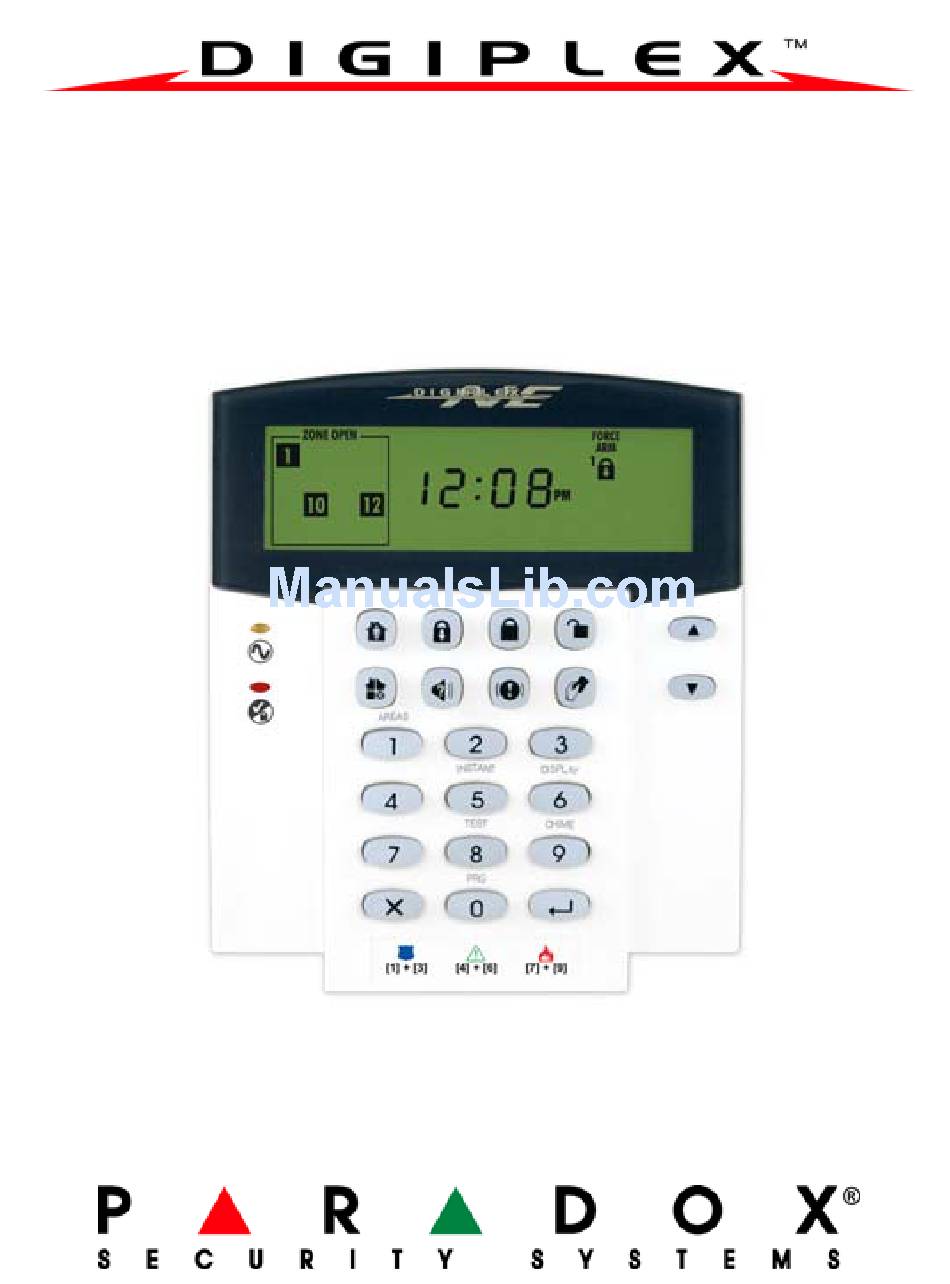

- Page 1 Icon LCD Keypad V1.0 Reference & Installation Manual DGP2-640...
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Specifications ................ 1 Installation ..............2 Connecting the Keypad............2 Connecting the Keypad Zone..........2 Programmable Output............3 Programming ..............4 Entering Module Programming Mode ........4 Programming Methods............5 Module Broadcast ..............5 System Options ............7 Partition Display) .............. - Page 4 PGM Activation ..............12 PGM Deactivation ............... 13 PGM Test................13 List of Sections ............14...
-
Page 5: Introduction
Thank you for choosing Paradox Security Systems. Our advanced technology security systems provide you with reliable security protection and powerful features which are easy to use. The DGP2-640 Icon LCD keypad provides easy access to the security system’s functions and status at a glance. 1.1 Specifications... -
Page 6: Installation
2.0 Installation 2.1 Connecting the Keypad The DGP2-640 is connected to the control panel’s combus in a star and/or daisy chain configuration. The four-wire combus provides power and two-way communication between the control panel and all modules connected to it. Connect the four terminals labeled +, -, GRN and YEL on the keypad to the corresponding terminals on the control panel as shown in Figure 1 on page 3. -
Page 7: Programmable Output
*The keypad zone follows the control panel’s EOL definition. The zone speed is set at 600mS and cannot be changed. Note: The keypad’s anti-tamper switch will communicate its status to the control panel via the combus. DGP2-640 Icon LCD Keypad 3... -
Page 8: Programming
3.0 Programming To program the DGP2-640 keypad, enter Module Programming Mode and then enter the desired section followed by the required data. When programming the keypad, use the keypad’s programming sheets (found in the Digiplex Modules’ Programming Guide; also, refer to List of Sections on page 14) to keep track of which sections were programmed and how. -
Page 9: Programming Methods
[ ] and [ ] keys to scroll through the serial number. 5. Enter the [ #] of the destination keypad(s). The SERIAL DGP2-640 Icon LCD Keypad 5... - Page 10 destination is the keypad(s) you want to program with the source’s data. If you want to program more than one keypad with the source’s data, enter the serial numbers of the keypads one at a time. 6. Once you have entered the serial numbers of the keypad(s) you want to program, press the key.
-
Page 11: System Options
LCD display as shown in Figure 2. 4.1 Partition Display Figure 2: Partition Display Sections [001] to [008] You can program the DGP2-640 to display up to four partitions. Sections [001] to [004] correspond to partitions 1 to 4 (see Figure 2. -
Page 12: Confidential Mode
4.2 Confidential Mode Section [009]: Option [1] The keypad will switch to Confidential Mode after a period of inactivity (default is 120s) if option [1] is enabled. In Confidential Mode all LEDs will turn off until either a button is pressed or an access code is entered (see Exit Confidential Mode on page 8). -
Page 13: Beep On Exit Delay
During the Chime Zone time period that the user sets, the keypad can emit an intermittent beep whenever a zone with the Chime feature enabled closes (see the DGP2-640 User Guide for details on Chime Zones). If the user does not set the Chime Zone time period and this option is enabled, the Chime Zones will always beep upon closure. -
Page 14: Keypad Anti-Tamper Enable
condition from the Trouble Groups occurs in the system. The intermittent beep will remain activated until the user enters the Trouble Display or if the trouble is resolved (see your control panel’s Reference & Installation Manual for details concerning Trouble Display). -
Page 15: Confidential Mode Timer
PGM Timer (see PGM Timer on page 12) instead of the PGM Deactivation Event. Option [2] OFF = Deactivation follows PGM Deactivation Event (default) Option [2] ON = PGM will deactivate according to the PGM Timer DGP2-640 Icon LCD Keypad 11... -
Page 16: Pgm Base Time
5.3 PGM Base Time Section [011]: Option [3] This option determines whether the value programmed in section [013] is in minutes or seconds. Option [3] OFF = PGM Base Time is in seconds (default) Option [3] ON = PGM Base Time is in minutes 5.4 PGM Timer Section [013]: Default = 005 If the PGM Deactivation Mode is set to follow the PGM timer, the value... -
Page 17: Pgm Deactivation
End # PGM [018] __/__/__ [019]__/__/__ [020]__/__/__ [021]__/__/__ 5.7 PGM Test Section [030] Use this section to initiate a PGM test, which will activate the PGM for 8 seconds. Enter section [030] to activate this test. DGP2-640 Icon LCD Keypad 13... -
Page 18: List Of Sections
6.0 List of Sections Section Description Data Default [001] Partition 1 Display __/__/__ (000 to 004)* 001 [002] Partition 2 Display __/__/__ (000 to 004)* 002 [003] Partition 3 Display __/__/__ (000 to 004)* 003 [004] Partition 4 Display __/__/__ (000 to 004)* 004 [005] Partition 5 Display __/__/__ (000 to 004)* 000... - Page 19 Description Beep on System Disabled Enabled Troubles / Clock Loss Beep on Communicator Disabled Enabled Troubles Beep on Module / Disabled Enabled Combus Troubles Beep on Zone Troubles Disabled Enabled [5] to [8] Future Use DGP2-640 Icon LCD Keypad 15...
- Page 20 = Default Section [011]: PGM & Keypad Tamper Options Option Description PGM State N.C. N.O. PGM Deactivation PGM Timer Deactivation Mode Event PGM Base Time Minutes Seconds Keypad Anti-Tamper Enabled Disabled Data Section Description Default [012] __/__/__ (005-255) Confidential Mode Timer 120s Data Section...
- Page 21 Warranty Paradox Security Systems Ltd. (“Seller”) warrants its products to be free from defects in materials and workmanship under normal use for a period of one year. Except as specifically stated herein, all express or implied warranties whatsoever, statutory or otherwise, including without limitation, any implied warranty of merchantability and fitness for a particular purpose, are expressly excluded.
- Page 24 8:00 a.m. to 8:00 p.m. EST. For technical support outside Canada and the U.S., call 00-1-450-491-7444, Monday to Friday from 8:00 a.m. to 8:00 p.m. EST. Please feel free to visit our website at www.paradox.ca. 780 Industriel Blvd., Saint-Eustache (Quebec) J7R 5V3 CANADA Tel.: (450) 491-7444 Fax: (450) 491-2313 www.paradox.ca...
