Paradox Digiplex DGP2-640 User Manual

Icon lcd keypad
Hide thumbs Also See for Digiplex DGP2-640:
Table of Contents

Advertisement

Quick Links

See also: Reference and Installation Manual

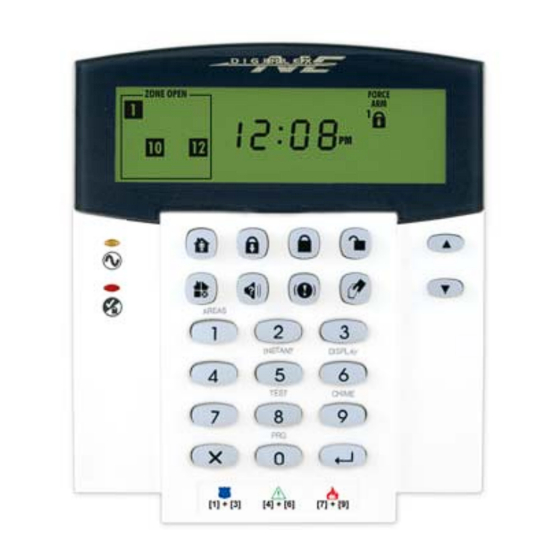

Icon LCD Keypad
DGP2-640

User Guide

DGP2-640

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Digiplex DGP2-640 and is the answer not in the manual?

Questions and answers

Related Manuals for Paradox Digiplex DGP2-640

Summary of Contents for Paradox Digiplex DGP2-640

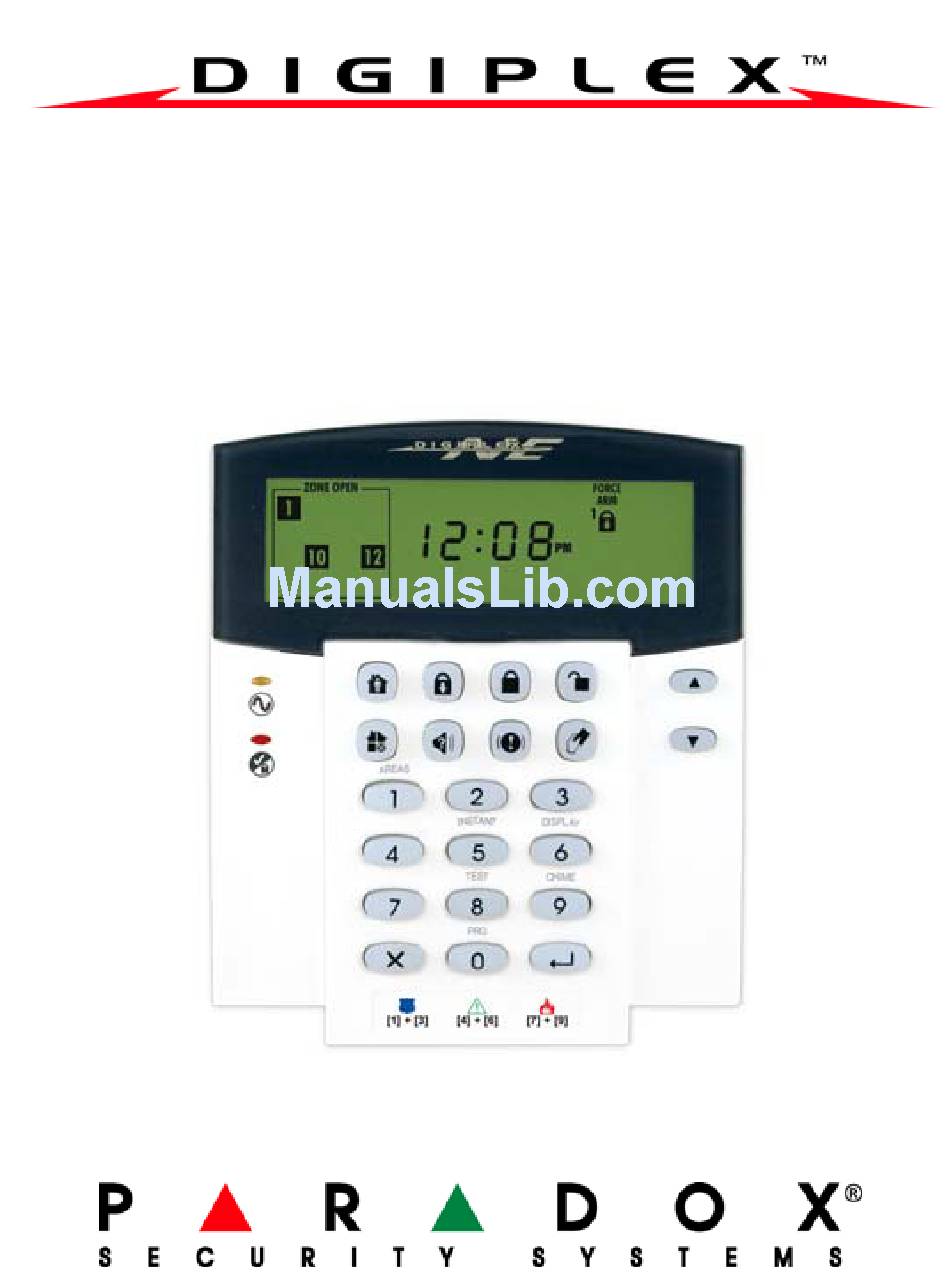

  • Page 1: User Guide

    Icon LCD Keypad DGP2-640 User Guide DGP2-640...

  • Page 3: Table Of Contents

    Table of Contents Introduction.............. 1 Basic Operation ............2 Action Keys ................. 2 Keypad Indicator Lights............3 Visual Feedback..............4 Auditory Feedback .............. 5 Modes and Settings ............5 Partitioned System ..........7 Area Status Display............. 7 Zones ................ 8 Zone Status Display ............
  • Page 4 Alarm Memory Display............17 Access Codes ............18 System Master Code ............18 User Access Codes ............20 Keypad Lock-Out .............. 24 Trouble Display............25 Additional Features ..........28 Programmable Outputs (PGMs) ........28 Panic Alarms..............28 Programming Chime Zones..........28 Programming the Time ............. 30 Quick Function Keys ..........31 Fire and Burglar Alarms........32 Standard Fire Zone............

  • Page 5: Introduction

    1.0 Introduction The 640 Icon LCD Keypad allows you to easily access your security system's functions and provide you with an easy-to-understand display of your security system's alarm and operational status. All the of actions performed in your security system will be executed and displayed through the keypad.

  • Page 6: Basic Operation

    2.0 Basic Operation This section provides an overview of the keypad’s functionalities. This includes the use of action keys and visual feedback. Many of the features in your system must be enabled by your installer. If the feature is not programmed, the keypad will emit a rejection beep and the action will be cancelled.

  • Page 7: Keypad Indicator Lights

    Action Key Description Events in Displays a record of recently triggered alarms. Refer to Alarm Memory Memory Display on page 17. System Trouble Displays a list of any system troubles that occurred. Refer to Trouble Display on page 25. Set User Codes Change user access codes.

  • Page 8: Visual Feedback

    2.3 Visual Feedback The icons on the keypad’s screen communicate your system’s status as outlined in Table 3. Table 3: Icon Display and Functionalities Icon(s) Display and Functionality Indicates numbers corresponding to zones and option numbers. If a zone or zones are open, their corresponding number(s) will appear.

  • Page 9: Auditory Feedback

    Icon(s) Display and Functionality Indicates a fire zone situation in the system. Refer to Fire and Burglar Alarms on page 32. Indicates system troubles. Refer to Trouble Display on page 25. Indicates bypassed zones. Refer to Bypass Programming on page 14. Indicates alarms stored in memory.

  • Page 10: Display Settings

    of time as defined by your installer. In Confidential Mode all of the indicator lights will turn off and the keypad will not display any zones or status icons. Depending on how your keypad was programmed by your installer, you must either press a key or enter your user access code to activate Normal Mode.

  • Page 11: Partitioned System

    3.0 Partitioned System Your system is equipped with a partitioning feature that can divide your alarm system into sections identified as areas. Partitioning can be used in installations where shared security systems are more practical, such as a home office or warehouse building. When partitioned, each zone, each user code and many of your system's features can be assigned to one or more areas.

  • Page 12: Zones

    4.0 Zones Zones are designated spaces within an area, which are monitored by the alarm system. Zones can be protected by devices such as magnetic door contacts and motion detectors. 4.1 Zone Status Display The Icon keypad displays the status of individual zones within a partitioned system.

  • Page 13: Arming

    5.0 Arming When the system is armed, it will respond to any breach in the zones according to the way each zone is programmed. For example, if someone opens a window that is armed, the system can trigger an alarm and alert your monitoring station. 5.1 Exit Delay Timer Arming the system will start the Exit Delay Timer.

  • Page 14: Stay Arming

    5.3 Stay Arming Stay arming will partially arm your system allowing you to remain in the protected area. For example, you can arm your doors and windows at home without arming the motion detectors so that you will be protected while you sleep. Only user access codes with the Stay and Instant arm options enabled can Stay arm the system.

  • Page 15: Force Arming

    How do I Instant arm? 1. Enter your [ ACCESS CODE 2. Press the [5] key. 3. If you have access to more than one area, press the number key representing the area you want to arm or press the [0] key for all assigned areas.

  • Page 16: One-Touch Keys

    How do I Force arm? 1. Enter your [ ACCESS CODE 2. Press the [ ] key. 3. If you have access to more than one area, press the number key representing the area you want to arm or press the [0] key for all assigned areas.

  • Page 17: Keyswitch Arming

    If you have access to more than one area, press the number key representing the area you want to arm or press the [0] key for all assigned areas. 5.7 Keyswitch Arming Your installer can add a keyswitch to arm and disarm your system. Your installer can program the keyswitch to arm in Regular, Stay, Force or Instant mode.

  • Page 18: Bypass Programming

    5.8.1 Timed Auto-Arming You can set the time that an area will arm itself automatically. An Exit Delay will beep for one minute prior to the area(s) arming. Auto-arming must be enabled in the control panel’s System Options. How do I set the Auto-arming Timer? 1.
  • Page 19 To Bypass a Zone: • Your installer must enable the Bypass feature for the selected zone(s). • Program your user access code to include the Bypass option. • Ensure that your user access code can access the zone’s area assignment. Fire Zones cannot be bypassed.

  • Page 20: Disarming

    5.9.1 Bypass Recall The Bypass Recall feature allows you to bypass the same zones that were bypassed during the last armed period at the touch of a key. How do I activate Bypass Recall? 1. Enter your [ ACCESS CODE 2.

  • Page 21: Disarming An Armed System

    6.2 Disarming an Armed System You will only be able to disarm the area to which your user access code is assigned. User access codes with the Arm Only option will not be able to disarm the system. How do I disarm the system? 1.

  • Page 22: Access Codes

    How do I view a list of alarms that occurred? When the Memory icon is illuminated: 1. Press the [ ] key. The Memory icon will flash. 2. Zone icons on the left side of the screen will illuminate to display zones that caused an alarm as outlined in Zone Status Display on page 8.
  • Page 23 How do I change the System Master Code? 1. Enter your [ ]. The functionality icons will illuminate. ACCESS CODE 2. Press the [0] key. 3. Press the [ ] key. “ ” will illuminate SECTION 4. Enter either numbers [0] and [1] (DGP-848) or [0], [0], [1] (DGP-NE96).

  • Page 24: User Access Codes

    7.2 User Access Codes Your keypad is compatible with both DGP-848 and DGP-NE96 systems. With a DGP-848 system, this keypad can support up to 96 user access codes using 2-digit code values (02 to 96). With a DGP-NE96 system, this keypad can support up to 999 user codes using 3-digit code values (002 to 999).

  • Page 25: Erasing Access Codes

    8. Program the Access Level (Table 6 on page 23). 9. Program the Schedule Assignment (Table 7 on page 23). 10. Program the Access Control User Options (Table 8 on page 24). When finished, press the [ ] key or the [ ] key. 11.
  • Page 26 Press option ON/OFF Option Description Duress Feature OFF (default) Disabled Duress feature enabled Sends a silent alarm to the monitoring station when you enter your code Used when someone forces you to disarm areas Bypass Feature Disabled ON (default) Bypass feature enabled Can deactivate zones using the bypass programming feature Arm only...
  • Page 27 Table 5: Area Assignment Press Key ON/OFF Area Assignment [ 1 ] ON † Access to Area 1 [ 2 ] ON † Access to Area 2 [ 3 ] ON † Access to Area 3 [ 4 ] ON † Access to Area 4 [ 5 ] ON †...

  • Page 28: Keypad Lock-Out

    Table 8: Access Control User Options Press Key User Options ON/OFF Access Card is activated Can disarm with Access Card Access Card with Extended Unlocked Period Feature OFF Can Regular arm with Access Card OFF Can Stay arm with Access Card OFF Can Instant arm with Access Card Can Force arm with Access Card Can open armed Access Control Doors...

  • Page 29: Trouble Display

    8.0 Trouble Display When your system experiences problems or is tampered with, the trouble icon will illuminate. Most of the trouble conditions will be programmed by your installer to be reported directly to your monitoring station (if connected). Your keypad will only display troubles that occur in the area(s) to which the keypad has been assigned.
  • Page 30 8.0.1 Group [1]: System Trouble [1]: AC Failure Indicates that your system is running on the backup battery. The AC light on your keypad will be turned off during a power failure. If this trouble occurs when your establishment is not experiencing a power failure, call your monitoring station for repairs.
  • Page 31 Trouble [6]: Fail to Communicate PC The control panel is unable to communicate with the WinLoad software. If a trouble occurs from either Group [3] or [4], call your installer. 8.0.3 Group [5]: Zone Tamper Indicates that one or more zones have been in tamper. The numerical LEDs for the zone or zones that have been tampered with will be illuminated.

  • Page 32: Additional Features

    9.0 Additional Features 9.1 Programmable Outputs (PGMs) Your system includes Programmable Outputs (PGMs) that can be programmed by your installer. A PGM triggers when a predetermined event or series of events occur in your system. The PGMs can be programmed to reset smoke alarms, turn on light switches, open or close garage doors and much more.
  • Page 33 9.3.1 Activating a Chime Zone How do I program my keypad to beep every time a zone opens? 1. Enter your [ ACCESS CODE 2. Press the [9] key to enter the Chiming Menu. Your keypad will emit a confirmation beep. The chime icon will illuminate and the Chime Options will scroll.

  • Page 34: Programming The Time

    4. Enter the time you want all Chimed Zones to start beeping when they open (according to the keypad’s time format as outlined in Programming the Time on page 30). After entering the time, your keypad will emit a confirmation beep. 5.

  • Page 35: Quick Function Keys

    For the U.S. format (a.m./p.m.): 1. Enter your [ ]. Your keypad will emit a confirmation ACCESS CODE beep. The functionality icons will illuminate. 2. Press the [ ] key. 3. Press the [8] key. 4. Enter the hour and minutes. If you enter the time in the International format, the keypad will switch from U.S.

  • Page 36: Fire And Burglar Alarms

    11.0 Fire and Burglar Alarms 11.1 Standard Fire Zone During a fire alarm, the bell/siren will emit an intermittent sound ) until silenced or reset. If the zone is a standard Fire BEEP BEEP BEEP Zone, the system can immediately send an alert to your monitoring station.
  • Page 37 Figure 2: Delayed Fire Zone Delayed Fire Zone triggered Bell/siren activated. Transmission of the report delayed for 30 seconds. The fire alarm icon will appear on the LCD screen. Has the problem been corrected within the 30 second delay? Bell/siren continues and Fire Has a second Delayed Fire Alert report sent to...

  • Page 38: Fire Safety Tips

    What do I do if the fire alarm is set off accidentally? 1. Press the [ ] key within 30 seconds of the alarm. 2. Clear the problem from the area. 3. If problem remains, the alarm will sound again. Press the [ ] key again.

  • Page 39: Minimizing Home Fire Hazards

    11.4 Minimizing Home Fire Hazards How can you avoid the four most common causes of fires at home? 1. Never leave cooking food unattended. Cooking fires are often a result of unattended cooking and human error, rather than mechanical failure. 2.

  • Page 40: Testing And Maintenance

    12.0 Testing and Maintenance 12.1 Burglar Alarm Testing This test requires two people. One person will watch the keypad while the other person walks around and opens the zones (i.e. open the doors and windows that are protected). The LCD screen will display the opened zones as shown in Figure 1 on page 8.
  • Page 41 How do I conduct the System Test? 1. Call the monitoring station to advise them that you are testing the system. 2. Enter your [ ACCESS CODE 3. Press the [8] key. The system will test all its connections and can send a report to your monitoring station.
  • Page 42 Warranty Paradox Security Systems Ltd. (“Seller”) warrants its products to be free from defects in materials and workmanship under normal use for a period of one year. Except as specifically stated herein, all express or implied warranties whatsoever, statutory or otherwise, including without limitation, any implied warranty of merchantability and fitness for a particular purpose, are expressly excluded.
  • Page 44 780 Industriel Blvd., Saint-Eustache (Quebec) J7R 5V3 CANADA Tel.: (450) 491-7444 Fax: (450)491-2313 www.paradox.ca PRINTED IN CANADA - 04/2005 DGP2640-EU00...
