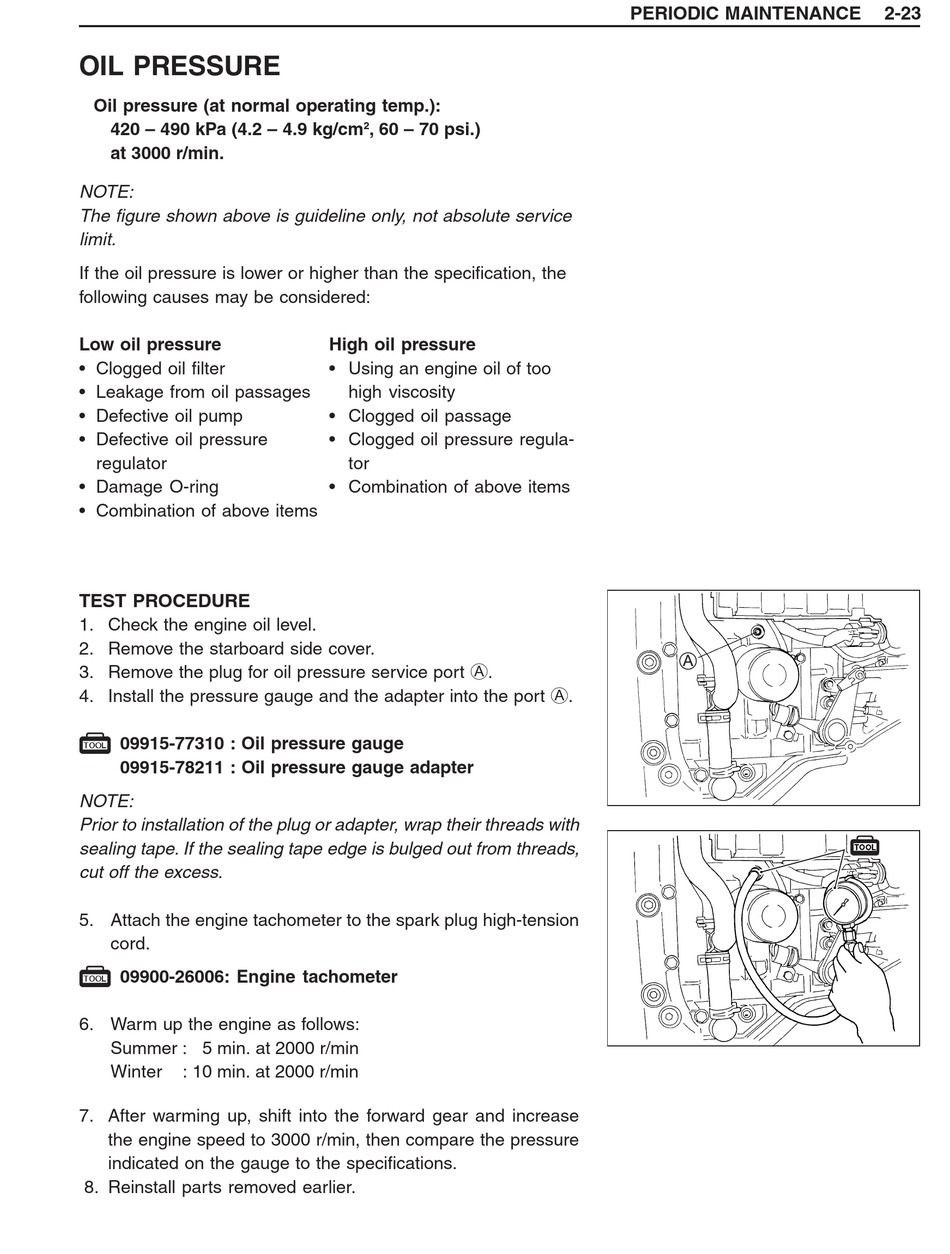

OIL PRESSURE

Oil pressure (at normal operating temp.):
420 – 490 kPa (4.2 – 4.9 kg/cm
at 3000 r/min.
NOTE:
The figure shown above is guideline only, not absolute service
limit.
If the oil pressure is lower or higher than the specification, the
following causes may be considered:
Low oil pressure
• Clogged oil filter
• Leakage from oil passages
• Defective oil pump
• Defective oil pressure
regulator
• Damage O-ring
• Combination of above items
TEST PROCEDURE
1. Check the engine oil level.
2. Remove the starboard side cover.
3. Remove the plug for oil pressure service port A.
4. Install the pressure gauge and the adapter into the port A.
!
09915-77310 : Oil pressure gauge
09915-78211 : Oil pressure gauge adapter
NOTE:
Prior to installation of the plug or adapter, wrap their threads with
sealing tape. If the sealing tape edge is bulged out from threads,
cut off the excess.
5. Attach the engine tachometer to the spark plug high-tension
cord.
!
09900-26006: Engine tachometer
6. Warm up the engine as follows:
Summer : 5 min. at 2000 r/min
Winter : 10 min. at 2000 r/min
7. After warming up, shift into the forward gear and increase
the engine speed to 3000 r/min, then compare the pressure
indicated on the gauge to the specifications.
8. Reinstall parts removed earlier.
2
, 60 – 70 psi.)
High oil pressure
• Using an engine oil of too
high viscosity
• Clogged oil passage
• Clogged oil pressure regula-
tor
• Combination of above items
PERIODIC MAINTENANCE 2-23
