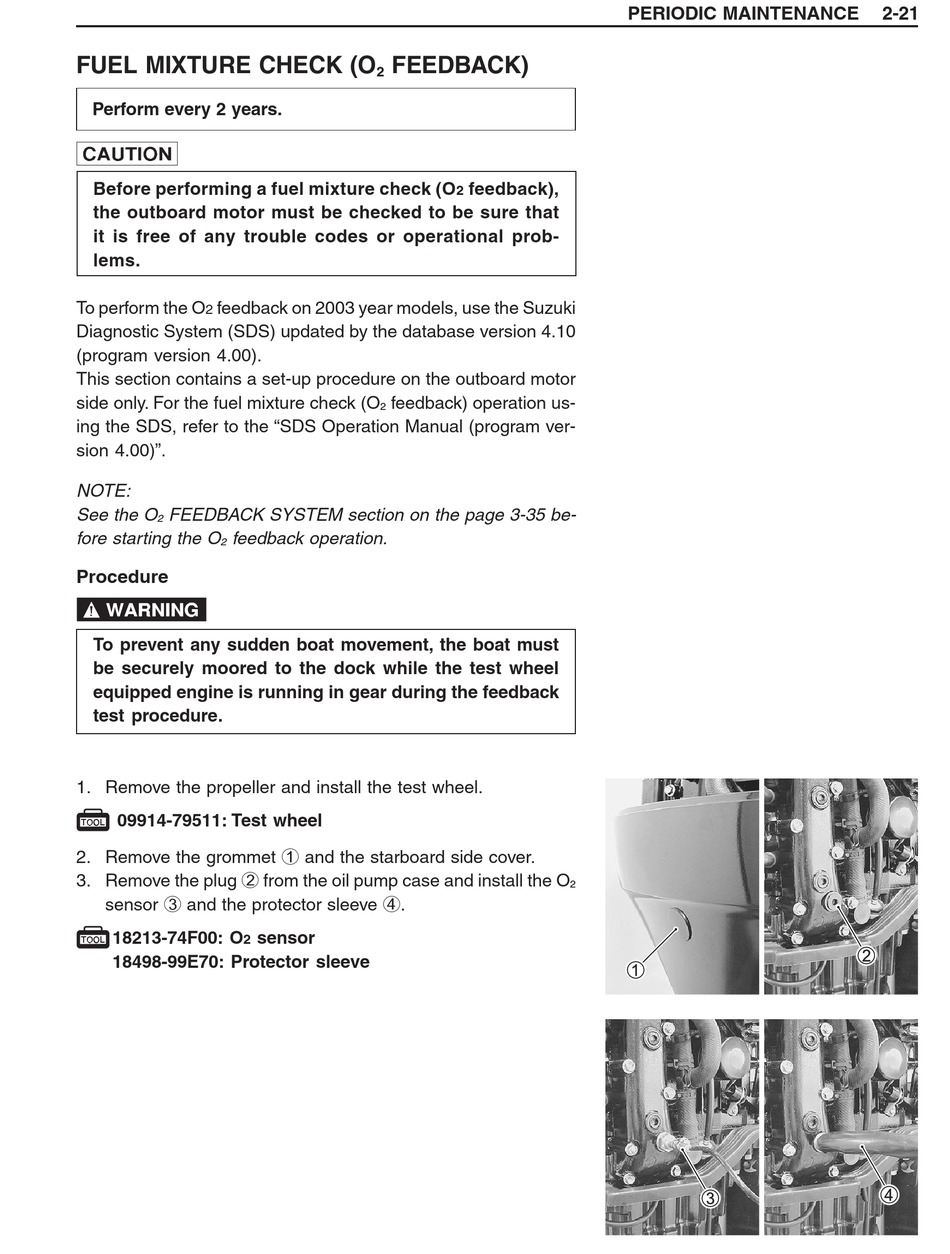

FUEL MIXTURE CHECK (O
Perform every 2 years.
#
Before performing a fuel mixture check (O
the outboard motor must be checked to be sure that
it is free of any trouble codes or operational prob-
lems.
To perform the O feedback on 2003 year models, use the Suzuki
2
Diagnostic System (SDS) updated by the database version 4.10
(program version 4.00).
This section contains a set-up procedure on the outboard motor
side only. For the fuel mixture check (O
ing the SDS, refer to the "SDS Operation Manual (program ver-
sion 4.00)".
NOTE:
See the O FEEDBACK SYSTEM section on the page 3-35 be-
2
fore starting the O feedback operation.
2
Procedure
%
To prevent any sudden boat movement, the boat must
be securely moored to the dock while the test wheel
equipped engine is running in gear during the feedback
test procedure.
1. Remove the propeller and install the test wheel.
! 09914-79511: Test wheel
2. Remove the grommet 1 and the starboard side cover.
3. Remove the plug 2 from the oil pump case and install the O
sensor 3 and the protector sleeve 4.
! 18213-74F00: O
2
18498-99E70: Protector sleeve
FEEDBACK)
2
feedback) operation us-
2
sensor
PERIODIC MAINTENANCE
feedback),
2
2
2-21
