4-6 ELECTRICAL

ELECTRIC STARTER SYSTEM

OUTLINE

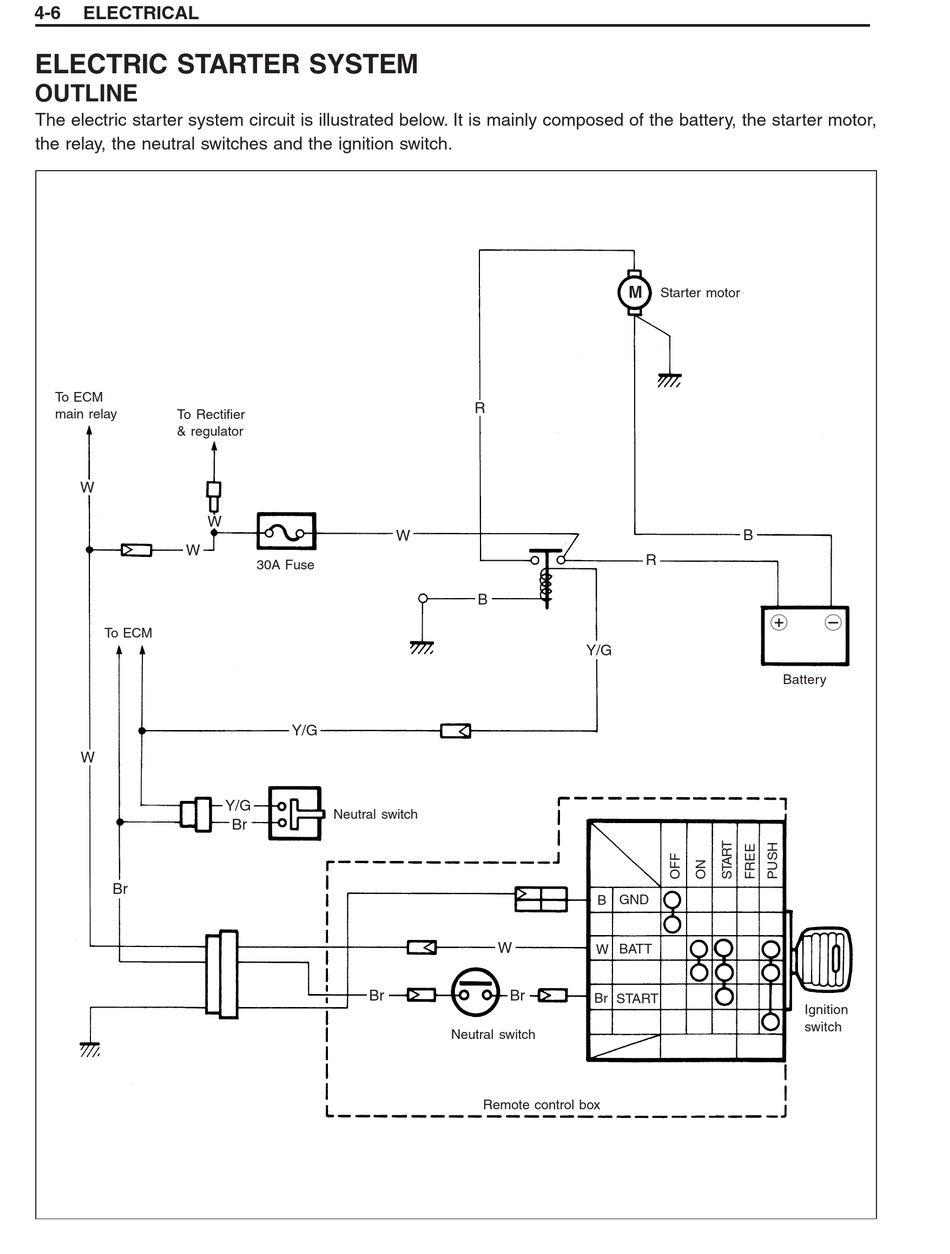

The electric starter system circuit is illustrated below. It is mainly composed of the battery, the starter motor,
the relay, the neutral switches and the ignition switch.
To ECM
main relay
To Rectifier
& regulator
W
W
W
To ECM
W
Br
W
30A Fuse
Y/G
Y/G
Neutral switch
Br
Br
M
R
B
Y/G
B GND
W
BATT
W
Br
Br
START
Neutral switch
Remote control box
Starter motor
B
R
+ -
Battery
Ignition
switch
