4-4 ELECTRICAL

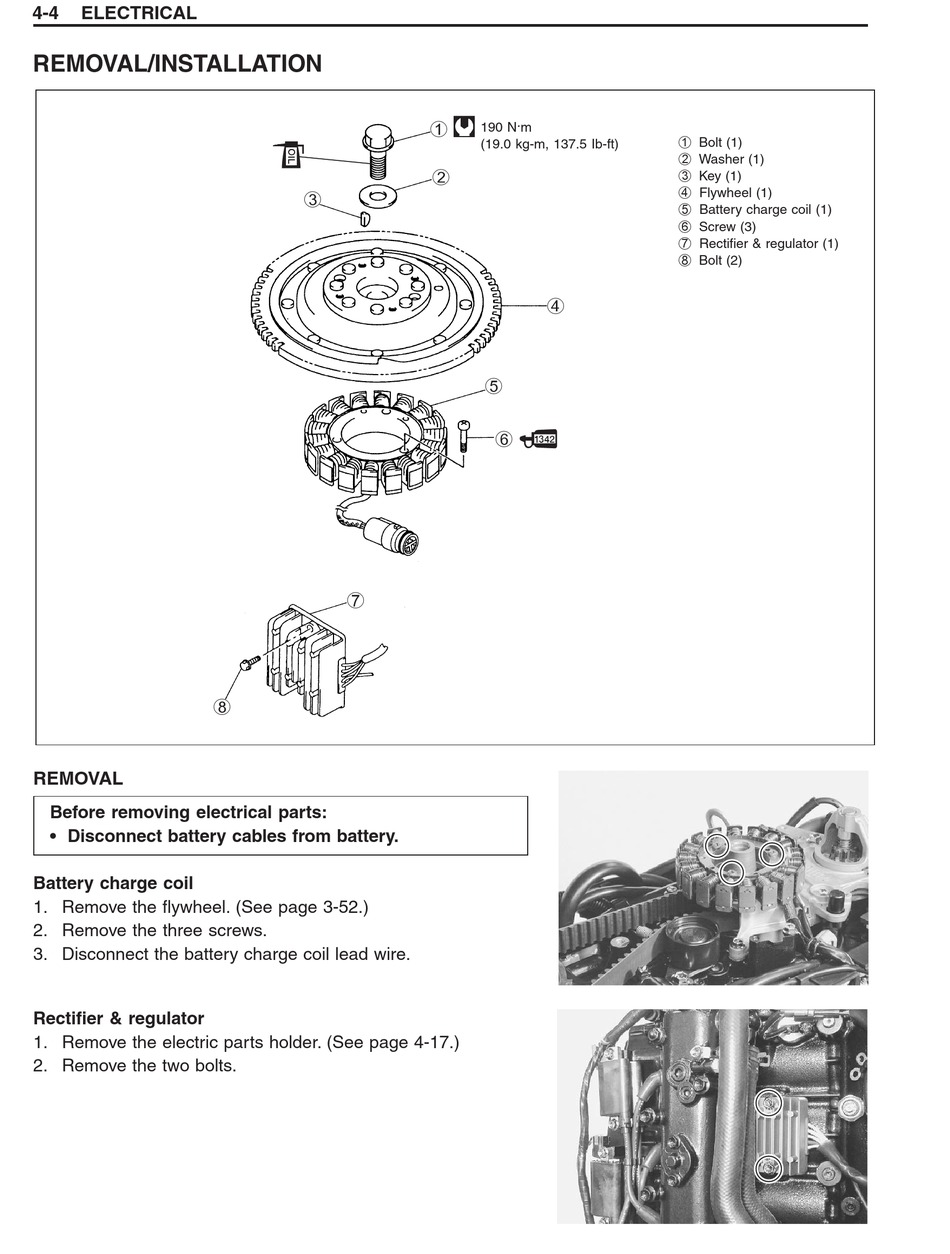

REMOVAL/INSTALLATION

REMOVAL
Before removing electrical parts:
• Disconnect battery cables from battery.
Battery charge coil
1. Remove the flywheel. (See page 3-52.)
2. Remove the three screws.
3. Disconnect the battery charge coil lead wire.
Rectifier & regulator
1. Remove the electric parts holder. (See page 4-17.)
2. Remove the two bolts.
&
3
7
8
$
190 N . m
1
(19.0 kg-m, 137.5 Ib-ft)
2
4
5
%
6
1 Bolt (1)
2 Washer (1)
3 Key (1)
4 Flywheel (1)
5 Battery charge coil (1)
6 Screw (3)
7 Rectifier & regulator (1)
8 Bolt (2)
