MAIN MENU

DISPLAY MENU

Within the DISPLAY menu are the following submenus: OSD, MONITOR, SEQUENCE, SPOT-OUT, and SCREENSAVER. The OSD (Onscreen Display)
menu allows you to control general screen settings such as camera titles and transparencies. The MONITOR menu allows you to control alarm and
event settings. SEQUENCE controls the display of video in Sequence mode, allowing you to choose the order which the cameras appear on screen.
The SPOT-OUT menu allows you to set up the DVR to send video to a secondary monitor via the SPOT-OUT connection. When a camera detects
motion, video from the camera will display on the secondary monitor. In the SCREENSAVER menu you are able to set the LCD screen to turn off after
a certain period of inactivity or to turn off for a specific period of time.
MAKING CHANGES TO THE OSD (ON-
SCREEN DISPLAY) MENU

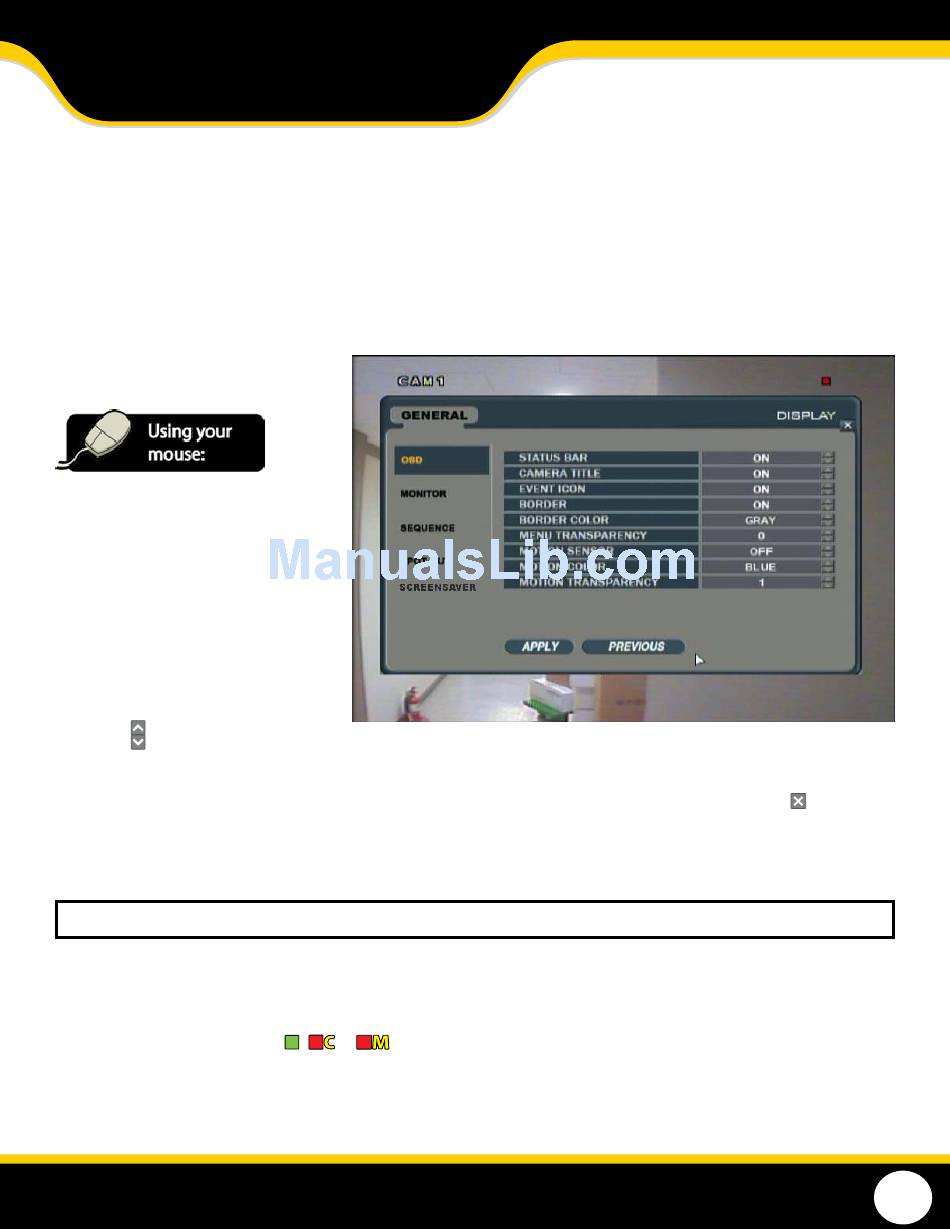

1. While in the GENERAL menu, click the
DISPLAY button.
2. Click the OSD title on the left hand side of
the window.
3. To navigate through the OSD menu, use
the mouse to click the status (OFF, ON, etc)
of the setting you wish to change. You will
see the outline of the status turn green.
4. Use the buttons to choose the preferred
setting.
5. When you have made all the desired changes to the OSD menu, click APPLY. If you wish to exit without saving changes, click
right corner of the window.
6. Save your settings when prompted.
NOTE: Each of the settings within the OSD menu are described in detail below.
STATUS BAR: Turns the status bar at the bottom of the live display ON or OFF. The status bar at the bottom of the screen shows you the current
date and time, as well as the percentage of hard drive space used.
CAMERA TITLE: Determines whether the camera title (i.e. CAM1) is displayed onscreen (ON) or if there is no title displayed (OFF).
EVENT ICON: Determines whether the
these icons ON of OFF.
BORDER: Turn the border around each channel in multi screen display mode ON or OFF.
BORDER COLOR: If the border is turned ON, you can change it to be gray, white, blue, red, yellow, or green.
SENTINEL10
, , or icons are displayed at the top right corner of each channel display window. You can turn
in the top
