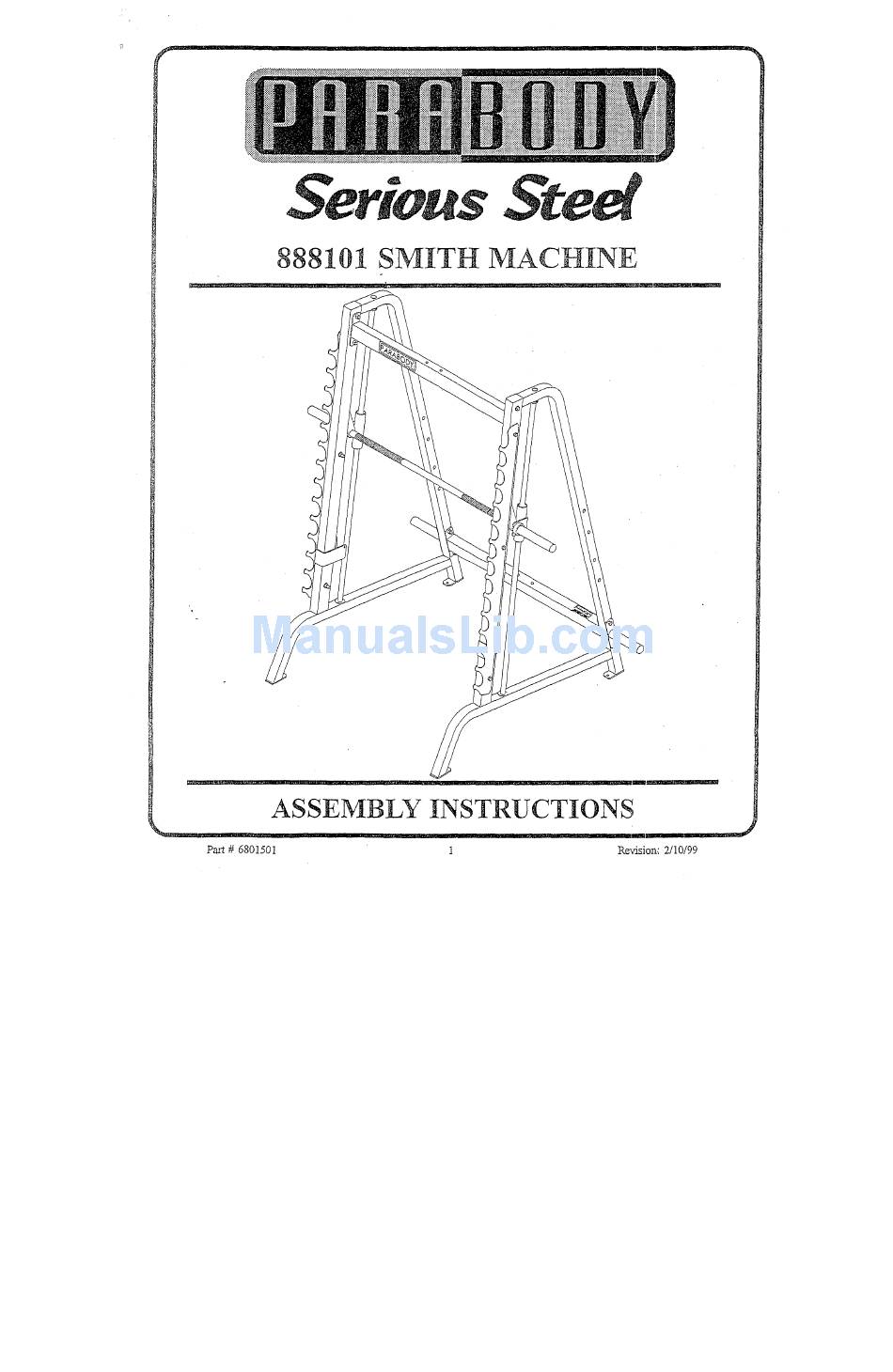

- Page 1 888101 SNI][TH NIACH][NE ASSEMBLY ]INSTRUCTIONS Part # 6801501 Revision.: 2/10/99...
- Page 2 2. Do not allow minors or children to play on or around this equipment. 3. Exercise with care to avoid injury. 4. If unsure of proper use of equipment, call your local Parabody distributor or call the Parabody customer service department at (800) 328-9714.
- Page 3 PART 1’" 6798103 ’2 679~103 LOWER CROSS BRACE 67985O2 6798402 679~702 SMrrl-IBk~ 6798901 6799601 "8 ,. 6799203 6799801 ’10 6714901 GLm)EROD BUSH]NO 11 32030o2[ 1" SHAFF COLLAR FIGURE 1 STEP 1: ¯ Insert two 1-3/4" ROUND END CAPS (20) into the end of Ne PLATE HOLDERS ~,artT # iizsc~ r~o~ 6692601...
- Page 4 FIGURE 2 STEP 2: ¯ LOOSELY assemblethe PLATEHOLDEP--S (7) andtheLOWERCROSS FIGURE 2 using four 1/2 X 3" BOLTS (13), and four 1/2" LOCKNUTS ¯ LOOSELYassembletheUPPERCROSSSUPPORT(1) tothetopsetofholesoftheupRIGHTFRAMES(8)assh°wninFIGURE2nsing two 1/2 X3" BOLTS (13), two 1/2" WASHERS (14), andtwo/2" LOCKNUTS ¯ LOOSELY assemble the GUN RACKS (21) to the outside of the UPRIGHT (13), fo~ 1/2"...
- Page 5 FIGURE 3 STEP 3: ¯ Insert two 3 X 2" END CAP S (12) into the ends of the UPRIGHT FRAMES (8) as shown in FIGURE ¯ Insert four GUIDE ROD BUSHINGS (10) into the UPRIGHT FRAMES (8) as shown in FIGURE...
- Page 6 FIGURE 4 STEP 4: ¯ Insert one 1-3/4" ROUND END CAP (20) into the end of each HOUSING (6) as shown in FIGURE ¯ Slide one 2-1/2" OD BUMPER (19) over the end of each HOUSING (6) as shown in FIGURE ¯...
- Page 7 FIGURE 5 ;TEP 5: ¯ Hookthe SMITH BAR (5) intothe slots ofthe UPRIGHT FRAM]ES (8). ¯ CAREFULLY slide one GUIDE ROD (9) fltrough the upper hole in the UPRIGHT FRAME (8). Slicte one 1" SHAFT COLLAR (1 l) the bottom of the GUIDE ROD (9), the CAREFULLY into the bottom hole of the UPRIGHT FRAME (8).
- Page 8 FIGURE 6 STEP 6: Attach six 3-1/4 X 1-3/4" OLI]3ES (18) to the LEFT & RIGHT SAFETY STOPS (3 & 4) as shown in FIGURE 6 using following steps: ¯ Thoroughly clean all surfaces where the 3-1/4 X 1-3/4" GLIDES (18) are to be attached. ¯...
- Page 9 FIGURE 7 STEP 7: ¯ .Assemble the LEFT & RIGHT SAFETY STOPS (3 & 4) to the UPRIGHT FRAMES (8) as shownin FIGURE...
- Page 10 ¯ Insert eight 7/16" CAP PLUGS (16) into the exposed holes in the UPPER & LOWER Thank you for purchasing the Parabody 888101 SMITH MACHINE. If unsure of proper use of equipment, call your local Parabody distributor or call the Parabody customer service department at (800) 328-9714.
- Page 11 CROSS BRACES (1 & 2" as sho~a~ in FIGURE Thank you for purchasing the Parabody 888101 SMffH MACHINE. If unsure ofpropeJ" use of equipment, ca! l Yo_ur loc.a 1 _Pa~abody_~.i~.tributor or call the Parabody customer service department at (800) 328-9714.
