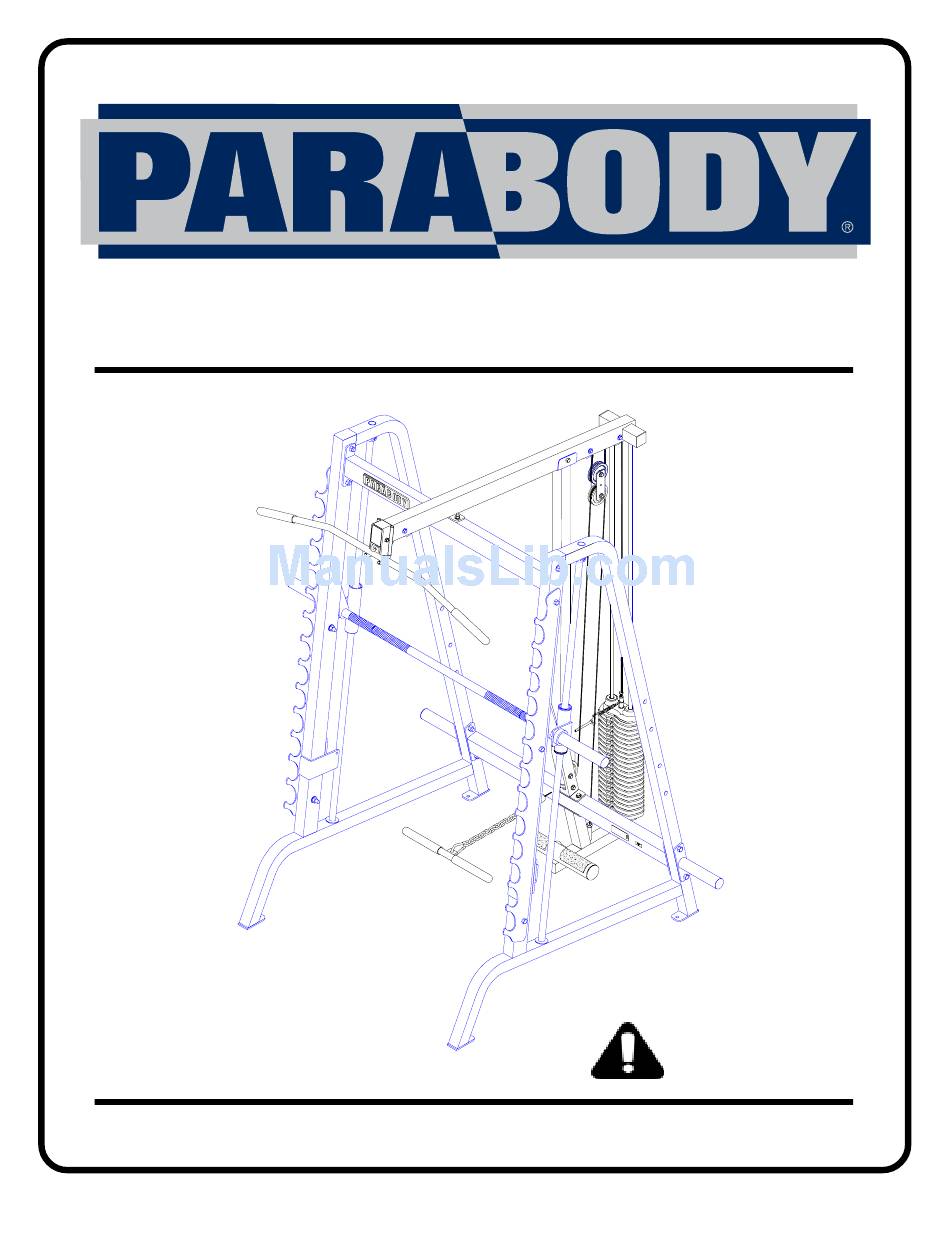

889 WEIGHT STACK OPTION
CLASS H
PART # 7305301
REV. A
USER'S GUIDE
1
WARNING:
Read and follow all directions
for each step to insure proper
Assembly of this product.
Version: 889108
Revision: 06/19/02
Advertisement
Table of Contents
Related Manuals for ParaBody 889
Summary of Contents for ParaBody 889
- Page 1 889 WEIGHT STACK OPTION USER’S GUIDE CLASS H PART # 7305301 REV. A WARNING: Read and follow all directions for each step to insure proper assembly of this product. Version: 889108 Revision: 06/19/02...
- Page 2 7. Inspect cables and their connections before using machine. Pay particular attention to the cable ends. DO NOT attempt to fix. Notify your authorized ParaBody dealer before use and have repairs made by an authorized service technician. 8. Make sure all spring loaded pull pins are fully engaged in the adjustment position and fully tighten thumbscrew before use.
-
Page 3: Tools Required For Assembly
Please note: * Thank you for purchasing the ParaBody 889 Weight Stack Option. Please read these instructions thoroughly and keep them for future reference. This product must be assembled on a flat, level surface to assure its proper function. * This product must be assembled on a flat, level surface to assure its proper function. DO NOT securely tighten any frame connections until the entire frame has been assembled, unless otherwise stated. -
Page 4: Parts List
DESCRIPTION PART # UPRIGHT LEA6814309 ADJ FOOT SUPPORT LEA6800610 STACK BASE LEA6814009 TOP BOOM LEA6813709 LAT BAR SUPPORT LEA6801110 76” GUIDE ROD LEA6816501 LOW ROW BAR LEA6274410 LAT BAR LEA6725310 3-1/2” PULLEY LEA3116201 4-1/2” PULLEY LEA3116101 124” CABLE LEA6832801 115-3/4” CABLE LEA6671002 3 X 2”... - Page 5 FIGURE 2 STEP 2: • Insert two 2” END CAP (16) into the ends of the STACK BASE (3) as shown in FIGURE 2. • Attach four 3/4 X 1-1/2” GLIDES (24) to the inside of the tube on the STACK BASE (3) as shown in FIGURE 2 using the following steps: •...
- Page 6 UPRIGHT FRAME FIGURE 4 STEP 4: • NOTE: It may be necessary to loosen the 1/2 X 3-1/4” BOLTS of the LOWER CROSS SUPPORT connecting to the UPRIGHT FRAME before beginning STEP 4. • SECURELY assemble the STACK BASE (3) and the UPRIGHT (1) to the LOWER CROSS SUPPORT using two 3/8 X 4” BOLTS (38), four 3/8”...
- Page 7 HEAD PLATE ASSEMBLY 36 STEP 5: • Insert two GUIDE RODS (6) into the STACK • Slide two WEIGHT STACK CUSHIONS • Using EXTREME CARE slide twenty • Carefully Slide the HEAD PLATE ASSEMBLY (36) down over the GUIDE RODS (6) onto the weight stack as shown in FIGURE 5.
- Page 8 FIGURE 6 UPRIGHT STEP 6: • NOTE: It may be necessary to loosen the 1/2 X 3-1/4” BOLTS of the UPPER CROSS SUPPORT connecting the UPRIGHT FRAME before beginning STEP 6. • Insert two GUIDE ROD BUSHINGS (27) into the TOP BOOM (4) as shown in FIGURE 6. •...
- Page 9 FIGURE 7 3/8” LOW HEIGHT 29 STEP 7: • SECURELY assemble the LAT BAR SUPPORT (5) to the TOP BOOM (4) using one 3/8 X 2-3/4” (32) and one 3/8” LOW HEIGHT LOCK NUT (29). See FIGURE 7. • Slide two VINYL CAPS (22) over the LAT BAR SUPPORT (5) as shown in FIGURE 7. FIGURE 8 STEP 8: •...
- Page 10 FIGURE 9 STEP 9: • Slide ring of WEIGHT STACK SELECTOR PIN (17) over top of HEAD PLATE ASSEMBLY (36) • Screw the threaded end of the CABLE (12) approximately 3/4” into the end of the HEAD PLATE ASSEMBLY (36) and tighten jam nut securely.
- Page 11 FIGURE 10 STEP 10: • Route the threaded end of the 124” CABLE (11) through the slot of the UPRIGHT (1) then SECURELY assemble one 4-1/2” PULLEY (10) to the UPRIGHT (1) using two 3/8 X 2-3/4” BOLTS (32), two 3/8” FLANGE SPACERS (33), two 3/8” WASHERS (30), and two 3/8” LOCK NUTS (31).
- Page 12 FIGURE 11 STEP 11: • Loop the 124” CABLE (11) around one 3-1/2” PULLEY (9) as shown in FIGURE 11. • LOOSELY assemble the 3-1/2” PULLEY (9) to the 3/16 X 1-3/4 X 5-1/4” PLATES (23) using one 3/8 X 2” BOLT (35), two 3/8” WASHERS (30), and one 3/8”...
- Page 13 CABLE accordingly and retighten the jam nut. Thank you for purchasing the Parabody 889 WEIGHT STACK OPTION. If unsure of proper use of equip- ment, call your local Parabody distributor or call the Parabody customer service department at (800) 328-9714.
- Page 14 Please note: * We recommend cleaning your product (pads and frame) on a regular basis, using warm soapy water. Touch-up paint can be purchased from your ParaBody customer service representative at (800) 328-9714. * Inspect equipment daily. Tighten all loose connections are replace worn parts immediately.
-
