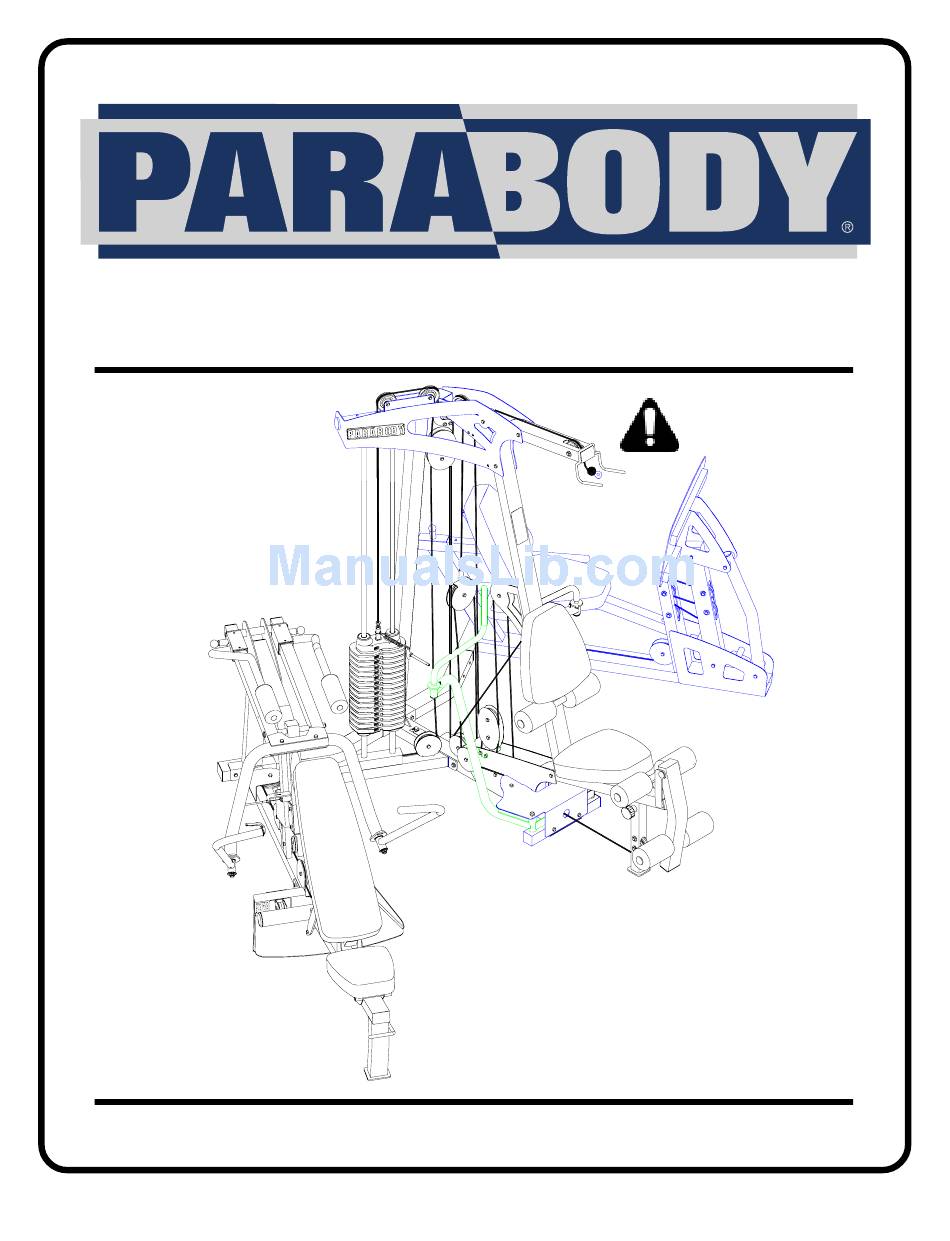

881 LEG PRESS ADAPTER KIT
FOR 880 GYM SYSTEM
CLASS H
PART # 7168701
REV. C
USER'S GUIDE
1
WARNING:
Read and follow all directions
for each step to insure proper
assembly of this product.
Version: 881102
Revision: 3/08/02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 880 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ParaBody 880

  • Page 1 881 LEG PRESS ADAPTER KIT FOR 880 GYM SYSTEM USER’S GUIDE CLASS H PART # 7168701 REV. C WARNING: Read and follow all directions for each step to insure proper assembly of this product. Version: 881102 Revision: 3/08/02...
  • Page 2: Important Safety Information

    7. Inspect cables and their connections before using machine. Pay particular attention to the cable ends. DO NOT attempt to fix. Notify your authorized ParaBody dealer before use and have repairs made by an authorized service technician. 8. Make sure all spring loaded pull pins are fully engaged in the adjustment position and fully tighten thumbscrew before use.
  • Page 3: Tools Required For Assembly

    Please note: * Thank you for purchasing the ParaBody 881 LEG PRESS ADAPTER KIT. Please read these instructions thoroughly and keep them for future reference. This product must be assembled on a flat, level surface to assure its proper function.
  • Page 4: Parts List

    3/8 X 4-1/2” BOLT NOTE: The LEG PRESS ATTACHMENT (100102) must be assembled before • NOTE: If assembling the LEG PRESS OPTION to a completely assembled (including cables) 880 GYM SYSTEM without SECOND STACK OPTION , please refer to PAGE 5.
  • Page 5 • REMOVE the LAT CABLE, THREADED HOUSING, 3/8 X 3-3/4” BOLT, two 3/8 X 1” SPACERS and one 3/8” LOCK NUT from the 880 GYM SYSTEM. See FIGURE 1. Save the LAT CABLE if you ever plan to purchase the SECOND STACK OPTION.
  • Page 6 3/8 X 2-3/4” 3/8” WASHER FRAME STEP 2: • Remove the PEC STATION PAD from the FRAME, then discard the two 3/8 X 2-3/4” BOLTS. See FIGURE 2. 18 3/8 X 3” FRAME STEP 3: • SECURELY assemble the PULLEY BRACKET (15) and the PEC STATION PAD to the FRAME using two 3/8 X 3” BOLTS (18). See FIGURE 3.
  • Page 7: Rear Upright

    FIGURE 4 STEP 4: • Remove the two 3/8 X 4” BOLTS, four 3/8” WASHERS and two 3/8” LOCK NUTS from the REAR UPRIGHT as shown in FIGURE 4. Discard the 3/8 X 4” BOLTS. FIGURE 5 STEP 5: • SECURELY assemble the PULLEY L-BRACKET (16) to the REAR UPRIGHT using two 3/8 X 4-1/4” BOLTS (19), four previously removed 3/8”...
  • Page 8 BOOM BRACKET FRAME FIGURE 6 STEP 6: • Route the SHORT LEG CABLE (2) through the FRAME and BOOM BRACKET as shown in FIGURE 4. (NOTE: Remove pulleys for ease of installation.)
  • Page 9 3/8 X 1-3/4” 7 FIGURE 7 STEP 7: • Route the SHORT LEG PRESS CABLE (2) through the PULLEY PLATES as shown in FIGURE 7. • Route the SHORT LEG PRESS CABLE (2) around one 3-1/2” PULLEY (4) and assemble the PULLEY to the PULLEY BRACKET (15) using one 3/8 X 1-3/4”...
  • Page 10 3/8 X 3-3/4” FIGURE 8 STEP 8: • Remove the 3-1/2” PULLEY, one 3/8 X 3-3/4” BOLT, two 3/8 X 1” SPACERS and one 3/8” LOCK NUT from the BASE PLATES as shown in FIGURE 8. Discard one of the 3/8 X 1” SPACERS. 3/8 X 3-3/4”...
  • Page 11: Base Frame

    FIGURE 10 STEP 10: • Route the SHORT LEG PRESS CABLE (2) around one 3-1/2” PULLEY (4) and assemble the 3-1/2” PULLEY, PULLEY PLATE (17) and one CABLE CLIP (11) to the PULLEY L-BRACKET (16) using one 3/8 X 1-3/4” BOLT (7) and one 3/8” LOW HEIGHT LOCK NUT (12) as shown in FIGURE 10.
  • Page 12 FIGURE 12 SEAT FRAME STEP 12: • Carefully route the SHORT LEG PRESS CABLE (2) around one 3-1/2” PULLEY (4) and SECURELY assemble the 3-1/2” PULLEY (4) to the BRACKET (from 100 LEG PRESS kit) using one 3/8 X 1-3/4” BOLT (7), one 3/8” WASHER (5), one CABLE CLIP (11) and one 3/8”...
  • Page 13 SEAT FRAME STEP 13: • SECURELY attach the BRACKET (from 100 LEG PRESS) to the SEAT FRAME using two 3/8” X 4-1/2” BOLTS (10), two 3/8” WASHERS (5), and two 3/8” LOW HEIGHT LOCK NUTS (12). See FIGURE 13. 3/8 X 1-3/4” 7 SEAT FRAME FIGURE 14 STEP 14:...
  • Page 14 FIGURE 15 3/8 X 4-1/2” 10 STEP15: • Carefully route the SHORT LEG PRESS CABLE (2) around one 3-1/2” PULLEY (4) and SECURELY assemble the 3-1/2” PULLEY (4) to the SEAT FRAME using one 3/8 X 4-1/2” BOLT (10), two 3/8” FLANGE SPACERS (14), two 3/8 X 1” SPACERS (13) and one 3/8”...
  • Page 15 FIGURE 17 3/8 X 4-1/2” 10 STEP 17: • Carefully route the SHORT LEG PRESS CABLE (2) around one 3-1/2” PULLEY (4) and SECURELY assemble the 3-1/2” PULLEY (4) to the SEAT FRAME using one 3/8 X 4-1/2” BOLT (10), two 3/8 X 1” SPACERS (13), two 3/8” FLANGE SPACERS (14) and one 3/8”...
  • Page 16: Cable Routing Diagram

    FIGURE 19 3/8 X 4-1/2” 10 STEP 19: • SECURELY assemble the threaded end of the SHORT LEG PRESS CABLE (2) to the SEAT FRAME using one 3/8 X 4-1/2” BOLT (10), two 3/8 X 1” SPACERS (13), one previosly removed THREADED HOUSING, two 3/8” FLANGE SPACERS (14) and one 3/8”LOW HEIGHT LOCK NUT (12).
  • Page 17: Head Plate

    HEAD PLATE from lifting up. • If further CABLE ADJUSTMENT is needed, reference the 880 GYM SYSTEM USER’S GUIDE. • Retain the LONG LEG PRESS CABLE if you plan to purchase the SECOND STACK OPTION in the future.
  • Page 18 GYM SYSTEM with SECOND STACK OPTION (already assemble to the 880), otherwise please refer to PAGE 5. • If the SECOND STACK OPTION has not been assembled to the 880, refer to the SECOND STACK OPTION USER’S GUIDE. The SECOND STACK OPTION should be assembled before the LEG PRESS OPTION.
  • Page 19 FIGURE 2 STEP 2: • Assemble the LONG LEG PRESS CABLE (3) to the PEDESTAL and route the LONG LEG PRESS CABLE (3) thru the BASE FRAME as shown in FIGURE 2. (NOTE: Remove pulleys for ease of installation.) • Route the LONG LEG PRESS CABLE (3) around the 3-1/2” PULLEY on the PULLEY PLATES using one existing 3/8 X 1-3/4” BOLT and one existing 3/8”...
  • Page 20 FIGURE 3 STEP 3: • Remove the two 3/8” BOLTS, 3/8” WASHERS and 3/8” LOCK NUTS from the STACK BASE as shown in FIGURE 3. • SECURELY assemble the LEG PRESS ADAPTER (1) to the STACK BASE using the previously removed 3/8” BOLTS, 3/8” WASHERS and 3/8”...
  • Page 21 FIGURE 5 SEAT FRAME STEP 5: • Carefully route the LONG LEG PRESS CABLE (3) around one 3-1/2” PULLEY (4) and SECURELY assemble the 3-1/2” PULLEY (4) to the BRACKET (from 100 LEG PRESS kit) using one 3/8 X 1-3/4” BOLT (7), one 3/8” WASHER (5), one CABLE CLIP (11) and one 3/8”...
  • Page 22 SEAT FRAME FIGURE 6 STEP 6: • SECURELY attach the BRACKET (from 100 LEG PRESS) to the SEAT FRAME using two 3/8” X 4-1/2” BOLTS (10), two 3/8” WASHERS (5), and two 3/8” LOW HEIGHT LOCK NUTS (12). See FIGURE 6. 3/8 X 1-3/4”...
  • Page 23 FIGURE 8 3/8 X 4-1/2” 10 STEP 8: • Carefully route the LONG LEG PRESS CABLE (3) around one 3-1/2” PULLEY (4) and SECURELY assemble the 3-1/2” PULLEY (4) to the SEAT FRAME using one 3/8 X 4-1/2” BOLT (10), two 3/8” FLANGE SPACERS (14), two 3/8 X 1” SPACERS (13) and one 3/8”...
  • Page 24 FIGURE 10 3/8 X 4-1/2” 10 STEP 10: • Carefully route the LONG LEG PRESS CABLE (3) around one 3-1/2” PULLEY (4) and SECURELY assemble the 3-1/2” PULLEY (4) to the SEAT FRAME using one 3/8 X 4-1/2” BOLT (10), two 3/8 X 1” SPACERS (13), two 3/8” FLANGE SPACERS (14) and one 3/8”...
  • Page 25 FIGURE 12 3/8 X 4-1/2” 10 STEP 12: • SECURELY assemble the threaded end of the LONG LEG PRESS CABLE (3) to the SEAT FRAME using one 3/8 X 4-1/2” BOLT (10), two 3/8 X 1” SPACERS (13), one previosly removed THREADED HOUSING, two 3/8” FLANGE SPACERS (14) and one 3/8”LOW HEIGHT LOCK NUT (12).
  • Page 26 • To set the correct amount of tension in the cables, push the HEAD PLATE down, insert the WEIGHT SELECTOR PIN and perform several repititions at the leg press station.This will relax the cable system and prevent the HEAD PLATE from lifting up. • If further CABLE ADJUSTMENT is needed, reference the 880 GYM SYSTEM USER’S GUIDE. •...
