HT500 LINK
t e c h n i c a l s p e c i f i c a t i o n s
Light engine
• DLP™ Type: 3-chip DMD (HD2 chip).
TM
• Resolution: True 16:9 (1280 x 720 pixels)
• Lens: High quality, high resolution improved optics for
higher contrast and better black level with both motorised
zoom and focus adjustments
• Lamp power consumption & life time: 250W UHP; 1500
hours (*)
Installation
• Shift +100%, -50% vertical, +/-20% horizontal
• Keystone: 22° max.
• Picture size: 50-300 inches diagonal
• Aspect ratio: 4:3, 16:9, Anamorphic, Letterbox, 3 custom-
user (H&V) adjustments, panoramic and pixel-to-pixel
Lens options
• Throw ratio 1.44 - 1.8:1 zoom
• Throw ratio 1.2 - 1.44:1 zoom
• Throw ratio 1.8 - 2.4 :1 zoom
• Throw ratio 2.4 - 3.6:1 zoom
• Throw ratio 3.6 - 5.6:1 zoom
Electronics
• Horizontal & vertical scan freq.: 15-80 KHz / 48-100 Hz (max
horizontal freq. corresponding to UXGA, 60 Hz)
• Video standards and graphic resolutions: PAL B,G, H, I, M, N,
60, SECAM, NTSC 3.58 & 4.43 automatically selected; HTDT
ATSC (480p, 720p, 1080i, 1080p) PC graphic standard up to
UXGA (1600 x 1200 pixels).
• Deinterlacer & processing: On-board DCDi™ by Faroudja.
3:2 & 2.2 pull-down sequencing automatically detected
• Colour temperature: 3 preset colour temperatures + a RC
user adjustment acting directly on each colour (R, G, B)
• Special video adjustments: noise reduction, Luma-chroma
Delay, high and low brightness, fleshtone regulation, Y/C
delay, gamma correction, Microvision Anticopy Pulses
Cleaner, Image panning and zooming.
General Specifications
• Control: control software upgradable via RS232 serial
interface
• Power Consumption: 170W
• Mains voltage range: 120-240 Vac, +/- 10% (48/62Hz)

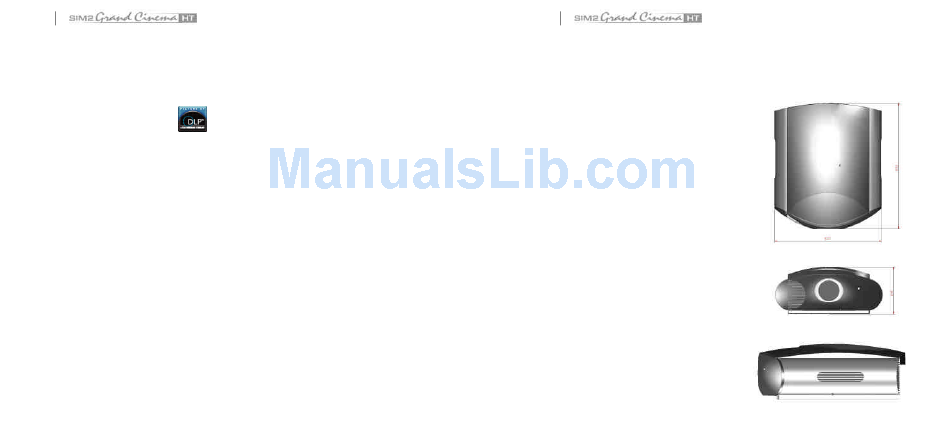

• Cabinet dimension (WxHxD): 537x235x631 mm
HT500 LINK
DigiOptic Image Processor: Inputs/Outputs
TM
• 2 x composite video via RCA connectors
• 2 x S-VHS via mini Din-4 pin
• 2 x RGB via DB15 HD connector
• 3 x RGBH/V YCrCbH/V via RCA connectors
• 1 x RGBH/V YCrCbH/V via 5 BNC connectors
• 1 x DVI via DVI-D connector
• 1 x HDMI -HDCP
TM
• 1 x optical S/PDIF audio output from HDMI
TM
• 2 x 1394 Firewire (optional to DVI - AVC protocol compliant)
• 2 fiber optics links via RJ-45 type LC connectors
• 1 x RS232 on Dsub 9 pin connector
• 2 x jack 12V power outputs
Cabinet dimensions (WxHxD): 435x55x285 mm
Supplied Accessories
DigiOptic Image Processor, fibre optic cable (20 m), backlit
TM
Remote control, AC power cords (EU, UK, and USA); length 2 m;
HDMI cable, DVI-HDMI cable, installation and user manual
Cabinet colour
Dark Gray
(*) Lamp life: the hours quoted have been calculated under strict test conditions. Misuse or improper use may alter it.
