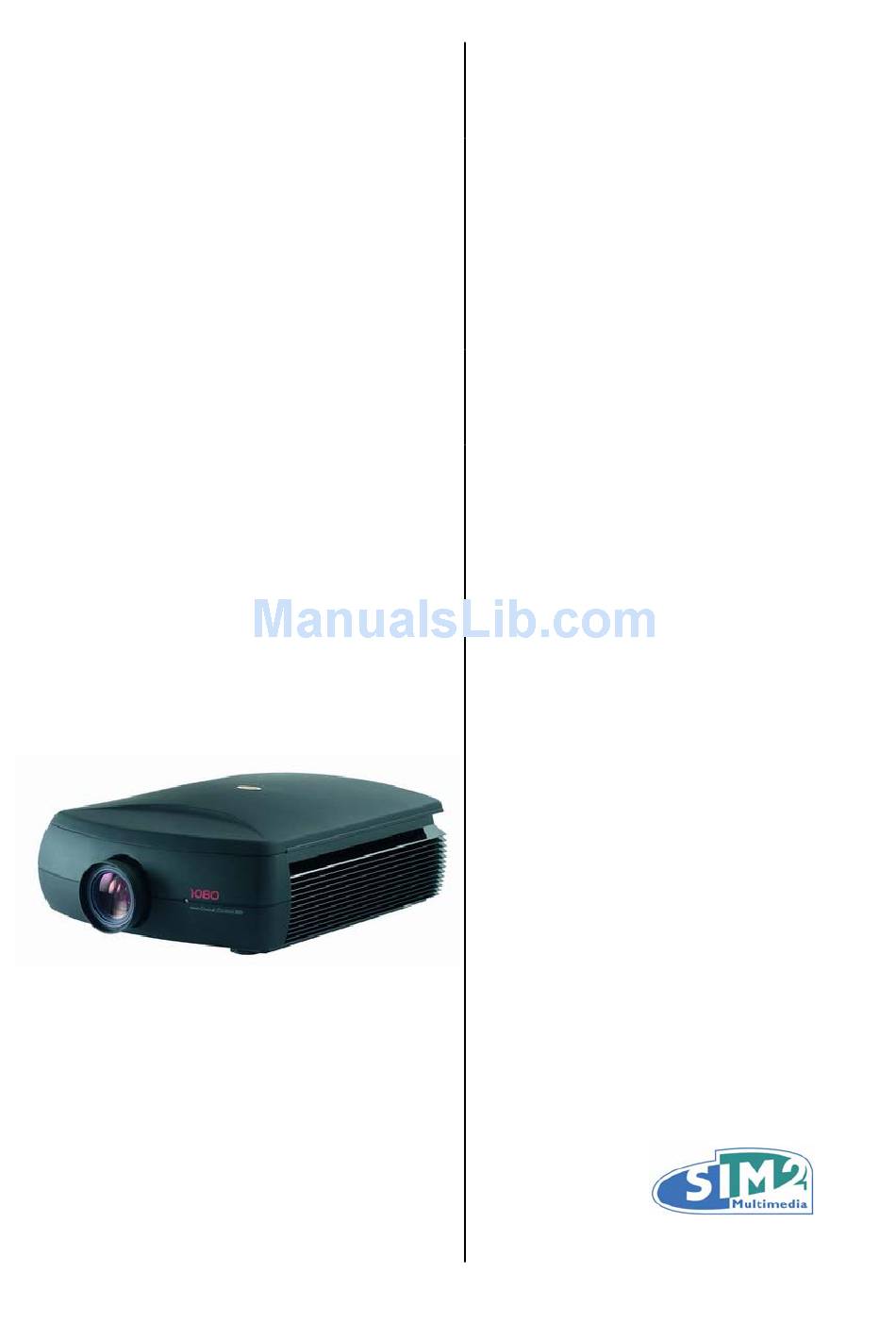

    HT5000 DLP™ VIDEO PROJECTOR RS-232C CONTROL SPECIFICATIONS Document Revision 1.0 (15 February 2007)
  • Page 2: Table Of Contents

    Table of Contents 1. INTRODUCTION 2. CONNECTION 3. COMMANDS 4. EXAMPLE 5. WARNING Revision History: Revision Date 15 February 2007 Software Version 3.10.68 or higher RS-232C CONTROL SPECIFICATIONS Description of Change Initial version. HT5000...
  • Page 3: Introduction

    1. Introduction This document describes the communication and data formats used to control SIM2 HT5000 projector via RS-232C port. 2. Connection Switch off the Personal Computer and the Projector before connecting RS 232C cable. Use a standard serial cable with 9 pin female to the Personal Computer and 9 pin male to the Projector: pin 2 connects to pin2, pin 3 to pin 3 and pin 5 to pin 5.
  • Page 4: Commands

    3. Commands The following commands send simulated Remote Control input to SIM2 HT5000 projector. Remote Control Keycodes: STANDBY 0 / ON CURSOR UP CURSOR LEFT CURSOR RIGHT CURSOR DOWN MENU LEFT MENU RIGHT FREEZE MEMORY INFO AUTO ASPECT Command BE EF 02 06 00 51 E4 48 01 00 00 00 00...
  • Page 5: Example

    Send the code relative to key "0": BEEF0206006BE6520100000000. The projector switches on and the last source memorised prior to switch off is automatically selected. The projector returns the response code: 06 (Acknowledged with no error). 2. Send the simulated "MENU RIGHT" Remote Control keycode.
