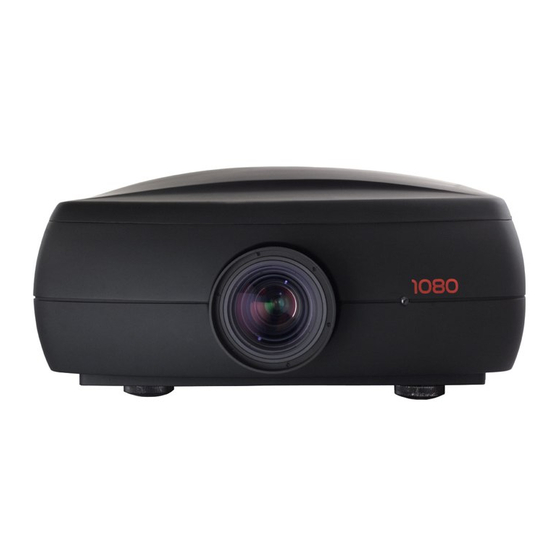

HT5000HB - PRO5DL
user and installation manual
460637000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Grand Cinema HT5000HB and is the answer not in the manual?

Questions and answers

Related Manuals for Sim2 Grand Cinema HT5000HB

Summary of Contents for Sim2 Grand Cinema HT5000HB

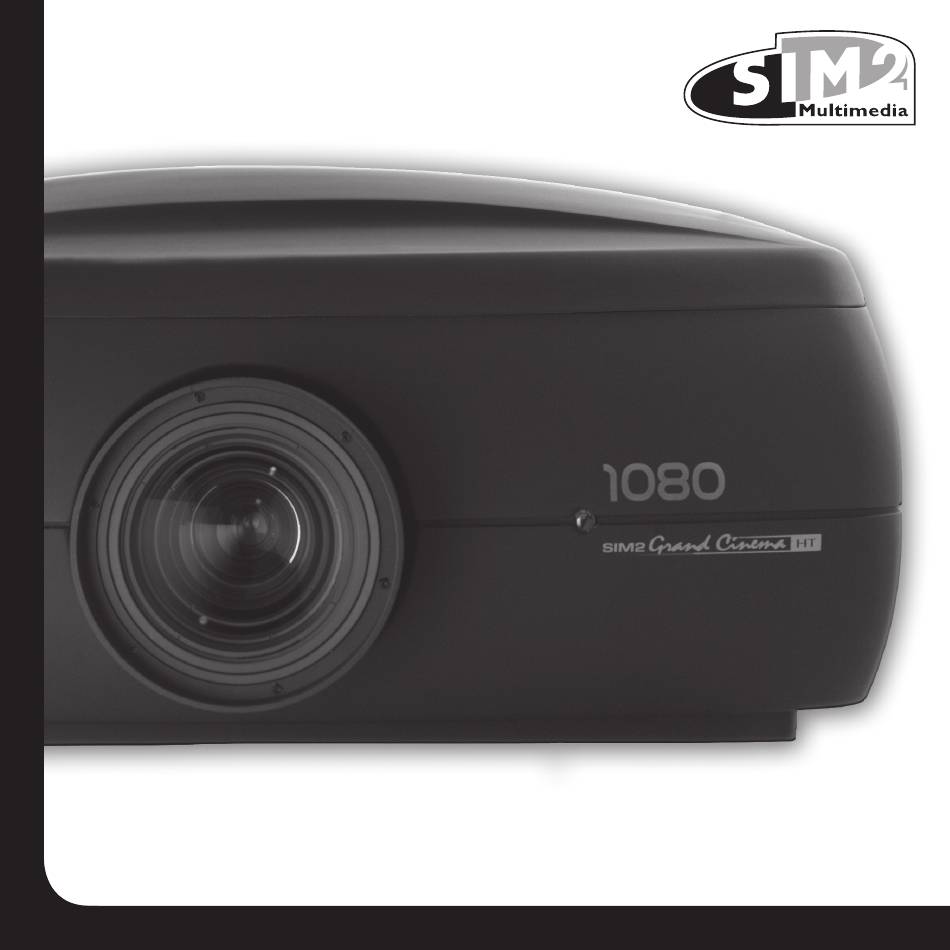

  • Page 1 HT5000HB - PRO5DL user and installation manual 460637000...
  • Page 2 ht5000HB - pro5dl REMOTE CONTROL AND KEYPAD BACKLighTiNg Standby / ON Backlights the keys on the remote control. LIGHT Places the projector in standby mode. KEYS 0-9 Selects the sources directly. Switches the panel on from Standby. iNPUT Displays input selection menu. ESCAPE Places the projector in standby mode.

  • Page 3: Table Of Contents

    The appliance has been subjected to exhaustive operating tests by range of input signals, from interlaced video to high definition and SiM2 to guarantee the highest quality. digital graphics. The projector bulb life should thus initially be around 30-60 hours.

  • Page 4: Safety Warnings

    To prevent harmful materials from being released into the environment and to promote the use of natural materials, SIM2 Multimedia provides the following information regarding the disposal and re- cycling of the product. Waste electrical and electronic materials (WEE) should never be disposed of in normal urban waste disposal facilities.
  • Page 5 ht5000HB - pro5dl Projection objective lens. Ventilation grille for air intake. Door for changing lens. Access compartment for changing bulb. Front receiver for infrared remote control. Connection panel Objective lens release hole. Ventilation grille for air outlet. Height-adjustable support feet. 10 Ventilation grille for air outlet.
  • Page 6 ht5000HB - pro5dl • Be careful with cables. • Place the unit on a stable surface. Make certain cables are routed so that people will not be Place the projector on a stable surface or use the ceiling impeded or tripped up. mounting bracket provided.

  • Page 7: Unpacking

    ht5000HB - pro5dl 3 UNPACKiNg For easy extraction of the HT5000HB - PRO5DL system from its cardboard box, follow the instructions shown here (Fig.1). Due to the weight of the equipment, it should be unpacked by two persons. Extract the cardboard structure that contains the instructions manual and the connection cables.

  • Page 8: Installation

    ASPECT served. if you use a bracket other than the one provided by SiM2 Multimedia, make sure the projector is located at least 65 mm from the ceiling and that the bracket does not block the air intake and outlet slots.
  • Page 9 ht5000HB - pro5dl If this movement is not enough, you will need to tilt the projector off the projection screen when you change the format of and correct the keystone distortion using the keystone adjust- the projected image (Fig. 7). The activation command can ment in the installation manual (Fig.4).

  • Page 10: Start-Up And Shutdown

    ht5000HB - pro5dl 5 START-UP AND ShUTDOwN ATTENTiON: Connect the units to a mains electrical supply START-UP fROM STANDBY STATUS with rated voltage of between 110-240 VAC, 50/60 hz and equipped with a protective earth connection (fig. 8). From the remote control: press one of the keys 1...9 or 0. From the keypad: press the on/off key Power Switch: Position I: On...

  • Page 11: Connections

    Colore Rosso : On : Flashing (*): if AN ERROR iS iNDiCATED, CONTACT SiM2 MULTiMEDiA TEChNiCAL SERViCE. Fig.11 6 CONNECTiONS To get the most out of the projector, make connections to the with the exception of RCA type coaxial connectors, always...
  • Page 12 ht5000HB - pro5dl Connection panel LINE INPUT 110-240~ 7,6 - 3,4 A FUSE T10A H 250V Television receiver Professional and broadcasting equipment HDTV receiver Television receiver DVD player DVD player HDTV receiver Video recorder Computer DVD player Camcorder Video recorder Video game console Video game console Blue-Ray player...
  • Page 13 ht5000HB - pro5dl COMPOSiTE ViDEO interlaced signal outputs it is good practice to compare the quality of the pictures reproduced by the HT5000HB - PRO5DL in Fit an RCA connector with a Composite Video (CVBS) signal the two cases: the de-interlacing performed by the HT5000HB to this input.
  • Page 14 ht5000HB - pro5dl OUTPUTS fOR ACTiVATiNg MOTORiZED SCREENS NETwORK fUNCTiONS (RJ45 CONNECTOR) The HT5000 - PRO5DL projector is equipped with a 10/100 Mbit TRIG 1 Ethernet interface by means of which the projector can be 12 Volt connected to a LAN or to the Internet. The network connection can be used to remotely control the TRIG 2 projector from any workstation with access to the network by...

  • Page 15: Remote Control

    ht5000HB - pro5dl TYPE Of iP ADDRESS RESTORiNg SETTiNgS This screen permits you to select the type of IP address to be To restore the projector’s network setting to the default factory assigned (Fig. 15): setting click on “Restore”. Wait for completion of the restore procedure.
  • Page 16 ht5000HB - pro5dl DESCRiPTiON Of ThE NOTifiCATiON MAiL SENT BY ThE PRO- JECTOR If the email notification service is enabled, the projector will automatically send an email to the specified address when the following circumstances occur: Cooling fan error (Error Code 1) Temperature too high (Error Code 2) Lamp error (Error Code 3) Communication error (Error Codes 4 e 5)

  • Page 17: On Screen Menu

    ht5000HB - pro5dl 8 ON SCREEN MENU All system functions can be operated from the keypad or remote control corresponding to the selected source. remote control, with the aid of a complete, user-friendly on In the SETUP menu you can select whether or not to display this screen menu.
  • Page 18 ht5000HB - pro5dl These sub-menus are accessed by pressing the key <. To exit For correct adjustment it may prove useful to display a grey and return to the upper level, press the keys MENU+/-. scale with at least twenty bands. To stop viewing the menus, press ESC on the remote control Now try to reduce the brightness of the black band as much or keypad, or wait for them to disappear automatically after...
  • Page 19 ht5000HB - pro5dl iMAgE signal, set to VIDEO; for PC graphics signals, set to GRAPHICS. If the VIDEO option is set, it applies Noise Reduction to increase the clarity of the image. This menu features adjustments relating to picture position, aspect ratio, magnification etc.
  • Page 20 ht5000HB - pro5dl SUBTITLES: this moves the image upwards, making room for the Image subtitles to be seen. R G B White Color Information PIXEL TO PIXEL: makes a pixel to pixel map of any image, without x = 0,296 White: T= 7500 K Native...
  • Page 21 There are 3 sets of gamma curves: Standard (ST), Enhanced SIM2 (EN) and Graphics (GR). The Standard curve has been Suitable for displaying images from defined for general use, and is set for camcorders, digital camcorders, digital cameras or TV studios cameras, and for viewing films or photos from your PC.
  • Page 22 ht5000HB - pro5dl SETUP Y/C DELAY Where Video and S-Video signals are concerned, it may be necessary to correct horizontal colour misalignment within the This menu includes the less frequently used adjustments which projected image. For a given video standard (e.g. PAL or NTSC) may be helpful during installation (for example, the selection the stored value does not normally require further adjustment, of the language for the On Screen Display or the display of test...
  • Page 23 ht5000HB - pro5dl Fig.28 iNiTiAL SETTiNgS Resets the projector to its initial factory settings (except Position, Fig.27 Orientation, Y/C Delay, Zoom and Focus). Before performing If this adjustment is insufficient to centre the image on the this operation, confirmation is requested (Fig.29). screen, tilt the projector and use the Vertical/horizontal keystone adjustment to compensate for the resulting distortion.
  • Page 24 ht5000HB - pro5dl Lamps being lit Lamp Power Lamp Manangement Menu (this symbol appears when a lamp is Setup being lit) Orientation Lamps in cooling phase Lamp Power Keystone Lamp Manangement (this symbol appears when a lamp is Lens Lamp Management cooling off) Lamp Power Lamp Manangement...
  • Page 25 ht5000HB - pro5dl Text input mode is the same whether you are editing an exist- Source List / Rename Source ing name or entering a name for the first time. Characters can be entered in any of the available positions (represented by 1 VIDEO VIDEO 1 2 S-VIDEO...
  • Page 26 ht5000HB - pro5dl MEMORiES Enlargement Activates the electronic zoom, the keys ◀ and ▶ zoom in on the image. If you press the key again you will enter PAN mode The main picture parameters can be saved in discrete sets of in which the ◀...
  • Page 27 ht5000HB - pro5dl Using a memory iNfO To use a Memory, select the line in question and press the Displays the current operating status of the projector and infor- ▶ key. The settings stored in the memory you have selected mation concerning the projected video/graphic signal.

  • Page 28: Cleaning And Maintenance

    ht5000HB - pro5dl 9 CLEANiNg AND MAiNTENANCE The projector does not require internal adjustment. The lens may be cleaned with a small very soft, non-abrasive There are no user serviceable parts inside the projector. brush, to remove dust particles. Alternatively, use a soft dry To replace the bulb or any other repairs, contact your local cleaning cloth (of the type used for camera lens cleaning) to service centre, whose engineers will be happy to efficiently solve...

  • Page 29: Optional Accessories

    You can purchase the following optional accessories at your Always contact our service centre to have the lens replaced. Dealer: Use only original or SiM2 Multimedia approved accessories. - CEILING MOUNTING KIT wARNiNg: for ceiling/wall installation, using a suspension - OPTIONAL LENSES bracket, carefully follow the instructions and safety regula- tions provided with the bracket in the packaging.

  • Page 30: Technical Specifications

    ht5000HB - pro5dl TEChNiCAL SPECifiCATiONS ELECTRONiCS gENERAL PROJECTOR Power cable: (EU, UK and US); 2m long Input signals: Power supply: from 110 to 240 V AC, tolerance +/- 10% • 1 COMPOSITE VIDEO (CVBS) frequency from 48 to 62 Hz gilded RCA type connectors Power absorbed: 850 W max...

  • Page 31: Dimensions

    ht5000HB - pro5dl DiMENSiONS THE SPECIFIED LENGTH IS WITH STANDARD LENSES INSTALLED...

  • Page 32: Horizontal/Vertical Shift - Tilt

    ht5000HB - pro5dl hORiZONTAL AND VERTiCAL ShifT - TiLT Screen Screen Center= 0 width +/- 15% Orizontal Shift Screen Screen Center= 0 height - 30% Vertical Shift Screen Screen Center= 0 height +70% Vertical Shift...

  • Page 33: Projection Distances

    ht5000HB - pro5dl PROJECTiON DiSTANCES Meters Lens Type FWA -1* FWA -2* Short Med-Short Med-Long Long Throw Ratio** 0.67:1 1.11:1 1.39~1.87:1 1.87~2.56:1 2.56~4.16:1 4.16~6.96:1 Throw Distance 1.1 - 3.2 3 -15 4 - 24 4 - 24 9.1 - 45 12 - 80 (min - max) Throw...
  • Page 34 ht5000HB - pro5dl gUARANTEE guarantee clauses 1. The unit is guaranteed for a period of 24 months from the 5. The manufacturer shall not be held liable for any damage date of purchase or installation as shown by a delivery docu- which may be caused, directly or indirectly, to persons, pets ment from the retailer or by another document that shows or property due to failure to comply with all of the provisions...
  • Page 35 Viale Lino Zanussi, 11 33170 Pordenone - ITALY Phone +39,434,383,253-256 Fax +39.434.383260-261 www.sim2.com e-mail: info@sim2.it SIM2 USA Inc. 10108 USA Today Way 33025 Miramar FL - USA Phone +1.954.4422999 Fax +1.954.4422998 www.sim2usa.com e-mail: sales@sim2usa.com SIM2 Deutschland GmbH Arndtstrasse 34-36 - D-60325 Frankfurt Am Main Phone 0800.800.7462 (Germany only)

This manual is also suitable for:

Pro5dl
