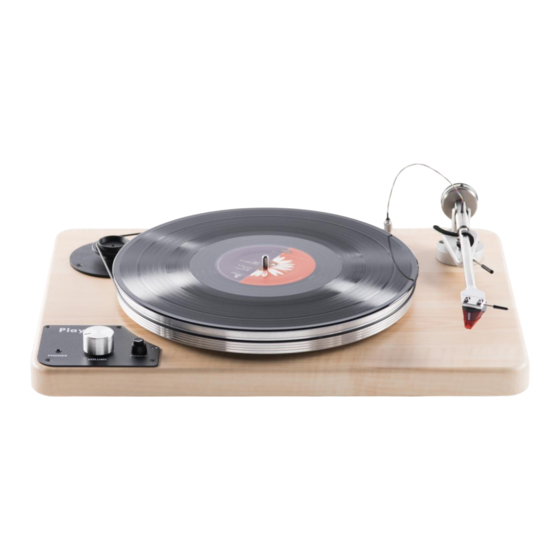

- Page 1 VPI Player Turntable Manual Setup and Instruction Manual VPI Industries, Inc., 77 Cliffwood Ave. #5D, Cliffwood, NJ 07721 http://www.vpiindustries.com...
- Page 2 Player Turntable Packing List Serial #:________________ Player Chassis Cartridge Installed Instruction Manual Drive Belt Power Supply Platter Tonearm Date: __________ Final Check by: ____________________...
-
Page 3: Player Specifications
PLAYER SPECIFICATIONS: Type Belt drive (manual turntable) Motor 24 VAC Synchronous AC Motor Turntable Platter Machined MDF Diameter 11.81" (30.0 cm) Turntable Speeds 33-1/3 RPM and 45 RPM Wow and Flutter 0.06% WOW (In accordance with DIN specification) 0.04% Flutter (In accordance with DIN specification) Rumble <-80dB (IEC 98A Unweighted) -
Page 4: Important: Read Before Proceeding
1. Place the turntable chassis on the shelf or stand where it will be used. The better isolation you provide the Player, the better it will sound. We highly recommend a 1 to 3 inch thick maple shelf sitting on rubber isolator feet for this purpose. - Page 5 The Ortofon 2M Red cartridges pre-mounted on the Player comes with a cartridge guard to protect the stylus. To remove the guard (while facing the Player) gently press the tab of the guard towards you to release and remove. Arm Height and Azimuth Both your arm height and azimuth is already factory set for you! All adjustments are optional.
-
Page 6: Changing Speeds
You may adjust azimuth by loosening the side screws and turning the armtube. CHANGING SPEEDS: The VPI Player comes with a two speed pulley, 33 and 45. To adjust the speeds simply move the belt from one pulley groove to another. -
Page 7: Playing Records
PLAYING RECORDS Make sure the VPI slip mat that comes standard with the Player is secure. If using headphones, plug your headphones into the headphone amplifier located in the front left of the Player. Be sure to set your volume at a preferred level before listening. - Page 8 VPI Industries, Inc. Limited Warranty VPI Industries, Inc. (VPI) warrants this unit against defects in materials and/or workmanship for one (1) year from the date of purchase by the original retail purchaser. VPI’s sole obligation under this warranty is limited to the repair or replacement, at VPI’s option, of any part(s) found to be defective. VPI’s obligation to repair or replace defective parts is the purchaser’s sole and exclusive remedy, and VPI shall not be...
