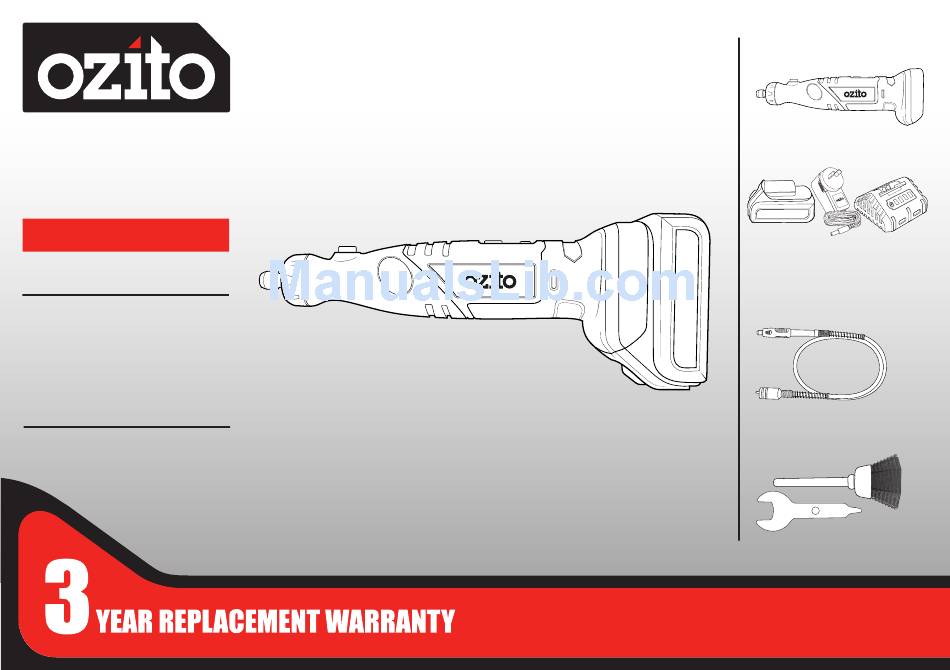

ROTARY
TOOL KIT
12V Lithium Ion
INSTRUCTION MANUAL
SPECIFICATIONS
Voltage:
12V
Battery:
1.5Ah Li-Ion
No Load Speed:
10,000 - 22,000/min
Collet Chuck Size:
ø 2.3 / 3.2mm
Flexible Shaft Length: 1.0m
Charge Time:
1Hr (Fast Charger)
Tool Weight:
0.45kg
ozito.com.au
WHAT'S IN THE BOX
Cordless Rotary Tool
12V Battery,
Charging Adaptor &
Fast Charging Cradle
Flexible Shaft
Accessories x 84
LRT-4100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LRT-4100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ozito LRT-4100

  • Page 1 Fast Charging Cradle SPECIFICATIONS Voltage: Battery: 1.5Ah Li-Ion No Load Speed: 10,000 - 22,000/min Collet Chuck Size: ø 2.3 / 3.2mm Flexible Shaft Length: 1.0m Charge Time: 1Hr (Fast Charger) Tool Weight: 0.45kg Flexible Shaft ozito.com.au Accessories x 84 LRT-4100...
  • Page 2: Know Your Product

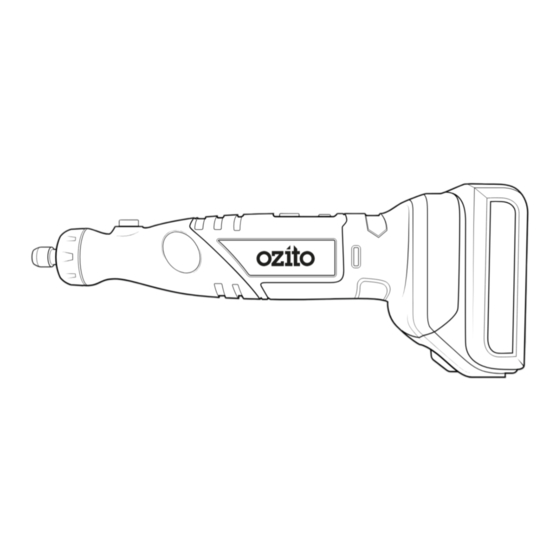

    KNOW YOUR PRODUCT SETUP & PREPARATION CORDLESS ROTARY TOOL 1. CHANGING ACCESSORIES 1 Collet Nut 5 Variable Speed Controls 2 Shaft Collar 6 Battery Release Button 3 Spindle Lock Button 7 12V Li-ion Battery WARNING! ENSURE THE TOOL IS DISCONNECTED FROM THE POWER SUPPLY BEFORE PERFORMING ANY 4 On/Off Button OF THE FOLLOWING OPERATIONS.
  • Page 3: Flexible Shaft

    2. CHANGING ACCESSORIES CONT. 3. FLEXIBLE SHAFT Locating a cutting/sanding disc 1 Remove the shaft collar. 2 Loosen the collet nut. 1 Remove the screw from the end of the disc holder. 2 F it the fibre flange either side 3 Tighten the cutting disc onto 3 Raise the handle end of of the cutting disc, then insert the cutting disc holder.
  • Page 4: Operation

    OPERATION 4. BATTERY & CHARGER Charging the Battery Directly WARNING! THE POWER SUPPLY FOR THIS CHARGER IS RECOMMENDED FOR USE WITH A RESIDUAL CURRENT 1 Plug charging jack DEVICE (RATED AT 30mA OR LESS). directly into the top of the battery Charging the Battery Using the Charging Stand 1 Plug charging jack into the fast...
  • Page 5: Operating The Rotary Tool

    5 Gently apply the tip of the accessory to the work piece. WARNING! PLACING EXCESSIVE LOAD ON THE ROTARY TOOL WHILE IT IS RUNNING AT LOW SPEEDS MAY CAUSE IT TO OVERHEAT AND THE MOTOR TO FAIL. LRT-4100...
  • Page 6: Accessory Guide

    ACCESSORY GUIDE TYPE QTY/ SIZES INCLUDED APPLICATIONS ASSEMBLY 2.3 - 3.2mm x1 Collet different shank sizes, to your rotary tool. A mandrel is a shank to which polishing Mandrel accessories, cutting wheels and sanding A shank which screws into the felt Screw Mandrel polishing tip and wheels.
  • Page 7: Maintenance

    • If the replacement of the supply cord is necessary, this has to be done by the Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia manufacturer or his agent in order to avoid a safety hazard.
  • Page 8: Spare Parts

    8 9 10 How To Order Available spare parts can be ordered through the Special Orders Desk at any Bunnings Warehouse. If you have any further questions, please contact Ozito Customer Service on: Australia: 1800 069 486 New Zealand: 0508 069 486...
  • Page 9 GENERAL POWER TOOL SAFETY WARNINGS - PERSONAL SAFETY Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and finger on the switch or energising power tools that have the switch on invites accidents.
  • Page 10: Warranty

    • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. • Professional, industrial or high frequency use. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175. 0416...
