CORDLESS
AIR PUMP
12V Li-ion
INSTRUCTION MANUAL
SPECIFICATIONS
Input:
12V
Max Air Pressure:
160psi
Flow Rate:
14l/min
Battery:
1.3Ah Li-ion
Charge time:
3 - 5 hours
Weight with Battery:
1.7kg
ozito.com.au
WHAT'S IN THE BOX

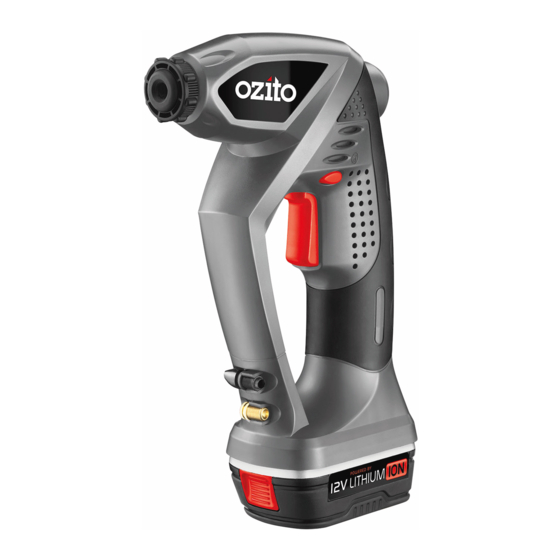

Cordless Air Pump
Valve Adaptor x 3
Flexible Extension Hose
Charging Adaptor
Charging Cradle
LAP-4100
Advertisement
Table of Contents
Related Manuals for Ozito LAP-4100
Summary of Contents for Ozito LAP-4100
- Page 1 Cordless Air Pump 12V Li-ion INSTRUCTION MANUAL Valve Adaptor x 3 SPECIFICATIONS Input: Max Air Pressure: 160psi Flexible Extension Hose Flow Rate: 14l/min Battery: 1.3Ah Li-ion Charge time: 3 - 5 hours Weight with Battery: 1.7kg ozito.com.au Charging Adaptor Charging Cradle LAP-4100...
-
Page 2: Know Your Product
KNOW YOUR PRODUCT SETUP & PREPARATION CORDLESS AIR PUMP 1. BATTERY 1 Locking Collar 5 Lock-off Button This charger is recommended for use with a residual current 2 Accessory Holder 6 12V Battery device with a rated residual current of 30mA or less. 3 Battery Release Button 7 Air Pressure Gauge Charging... -
Page 3: Operation
OPERATION 2. ATTACHING ACCESSORIES 3. CONTROLS Turning On/Off Installing Flexible Extension Hose 1. Push the lock-off button hard left. 1. Open the locking collar by turning anti-clockwise. 3. To stop the air pump, 2. To start the air pump, release the trigger. squeeze the on/off trigger. - Page 4 NOTE: Looking at the gauge dial at an angle will give a false pressure reading. Readings taken with the air pump turned on will not be accurate. 5. O nce desired inflation is reached, realease on/off trigger and remove valve adaptor. LAP-4100...
-
Page 5: Maintenance
3-5 hours. Note: Ozito Industries will not be responsible for any damage or Sparking visible through the housing air vents injuries caused by repair of the air pump by an unauthorised person or by mishandling. - Page 6 Tool: 12V Li-ion Air Pump SPARE PARTS Model No. LAP-4100 The following is a list of spare parts carried by Ozito. Please contact Customer Service for any parts not listed. Item Item Description Part No. Description Part No. Locking Collar...
-
Page 7: Electrical Safety
Replace the extension lead if damaged or defective. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for the power input of the tool or which is damaged or defective may result in a risk of fire and electric shock. -
Page 8: Warranty
• Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175. 1213...
