Vulcan-Hart RE-3 Owner's Manual

Electric solid top oven range
Hide thumbs
Table of Contents

Advertisement

Quick Links

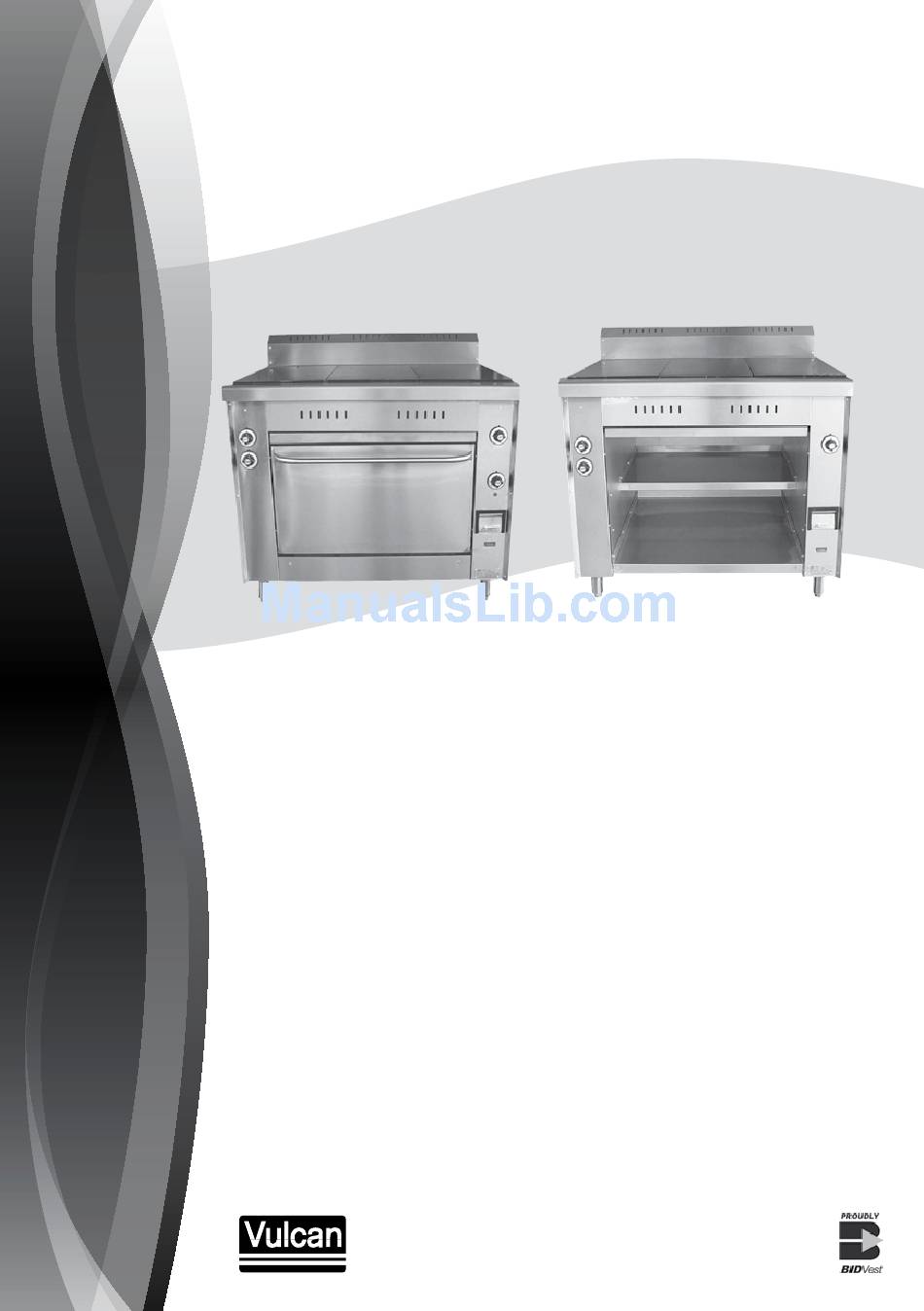

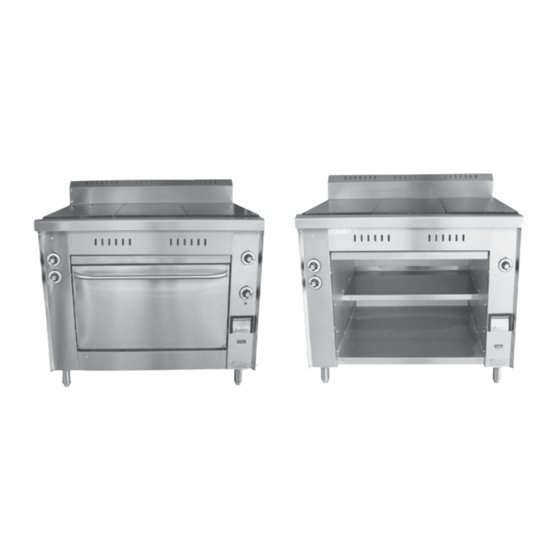

VULCAN ELECTRIC SOLId TOp OVEN RANgE
MOdEL: RE-3 - SOLId TOp OVEN RANgE
RE-3T - SOLId RANgE TOp ONLy ON CABINET BASE
RE-3 : SOLID TOP RANGE
Index:
Vulcan catering
equipment (ptY)ltD
MODEL RE-3T : SOLID TOP
RANGE TOP ONLY
2
3
3
4
4
4
5
5
6
9
10
10
11
12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RE-3 and is the answer not in the manual?

Questions and answers

Related Manuals for Vulcan-Hart RE-3

Summary of Contents for Vulcan-Hart RE-3

  • Page 1: Table Of Contents

    VULCAN ELECTRIC SOLId TOp OVEN RANgE MOdEL: RE-3 - SOLId TOp OVEN RANgE RE-3T - SOLId RANgE TOp ONLy ON CABINET BASE RE-3 : SOLID TOP RANGE MODEL RE-3T : SOLID TOP RANGE TOP ONLY Index: General Data Owners Responsibility...

  • Page 2: General Data

    MODEL / SERIAL NUMBER: RE 3 143/33/7891 onwards RE - 3T Without oven HOTPLATES: RE-3 Three 4kW hotplates 640 x 330 each controlled by a three heat switch. RE - 3T Three 4kW hotplates 640 x 330mm, each controlled by a three heat switch.

  • Page 3: Owners Responsibility

    Port Elizabeth Office Tel. Number (041) 453 - 5177 East London Branch Office East London Office Tel. Number (043) 722 - 2883 Botswana Dealer Office Botswana Dealer Office Tel. Number (+267) 395 - 2228 Namibia Dealer Office Namibia Dealer Office Tel. Number (+264) 61 251 - 708 [ 3 ] Ranges RE-3 and RE-3-T Vulcan catering equipment (ptY)ltD REV3-11-2011 / VfM29...

  • Page 4: Parts Ordering / Service Information

    pARTS ORdERINg / SERVICE INFORMATION: Parts / spares orders must be placed directly with your local branch / distributor. To help speed up your order, we require the following information: 1) Model / Serial Number 2) Voltage 3) Item Part Number 4) Quantity Required The serial number data plate is sited on the front bottom right hand corner of the unit.

  • Page 5: Trouble Shooting

    10) Children should be supervised to ensure that they do not play with the appliance. pLEASE NOTE 11) The installation of the equipment must be done by a qualified registered technician all in compliance with statutory Health and Safety Regulations. [ 5 ] Ranges RE-3 and RE-3-T Vulcan catering equipment (ptY)ltD REV3-11-2011 / VfM29...

  • Page 6: Wiring Diagrams

    WIRINg dIAgRAM VULCAN RE3 RANgE ANd OVEN 18kW, 400V, 3N Item No Stores Ref.No description A1 - A3 3010 - 28 Circuit Breaker 40amp 3076 - 01 Terminal block B2 – B4 3076 - 15 Terminal block 3051 - 01 Amber pilot light R1-R2-R3 3017 - 09...
  • Page 7 Solid plate 2kW, element outer R4 – R6 3017 - 08 Solid plate 2kW, element inner S1 – S3 3067 - 37 EGO switch 3 heat filter fry Switch [ 7 ] Ranges RE-3 and RE-3-T Vulcan catering equipment (ptY)ltD REV3-11-2011 / VfM29...
  • Page 8 LINE dRAWINg INdICATINg SERVICE ANd SpARE pARTS ORdERINg dATA Item No Stores Ref.No description 3067 - 37 EGO switch 3 heat Switch knob 3 heat 3067 - 39 Energy regulator 3077 - 94 Energy regulator knob 3051 - 01 Pilot light amber 3010 - 28 Circuit breaker 40 amp 3017 - 09...

  • Page 9: Use Of Controls

    Spilage tray L / H 3 Heat Switch R / 3 Heat Switch Oven Thermostat Centre 3 Heat Switch Oven Indicator Lamp Circuit Breakers Data Plate [ 9 ] Ranges RE-3 and RE-3-T Vulcan catering equipment (ptY)ltD REV3-11-2011 / VfM29...

  • Page 10: Operation

    OpERATION: HOTpLATE: The 640 x 330mm hotplates are controlled by 3 heat switches. Position 0: Position 1: Low 1000 watts Position 2: Medium 2000 watts Position 3: High 4000 watts The loading of these plates is evenly distributed i.e. - the heat is uniform over the complete surface of the plate.

  • Page 11: Preventative Maintenance

    Remove front curb, back splash plate and panel above the door. Disconnect hotplate. On replacement, be careful to group terminal wires together under spillage channel. Hotplate switches. Switches are fitted to the left and right hand control panels. It will be necessary to remove these panels for replacement. [ 11 ] Ranges RE-3 and RE-3-T Vulcan catering equipment (ptY)ltD REV3-11-2011 / VfM29...

  • Page 12: Safety

    SAFETy: 1) Always use extreme caution when dealing with any heavy duty electrical appliance. 2) Do not place your hand directly onto the hot plate. 3) Do not spray water onto the electrical connections, this could result in an electric shock.

This manual is also suitable for:

Re-3t
