Tenda teg2124t User Manual

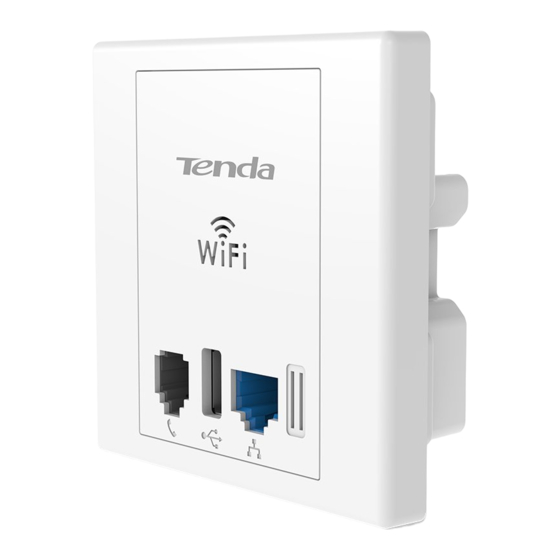

Wireless n300 wall plate access point
Hide thumbs Also See for teg2124t:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the teg2124t and is the answer not in the manual?

Questions and answers

Related Manuals for Tenda teg2124t

Summary of Contents for Tenda teg2124t

  • Page 2: Copyright Statement

    Shenzhen Tenda Technology Co., Ltd. If you would like to know more about our product information, please visit our website at http://www.tendacn.com.
  • Page 3 About This User Guide Thank you for choosing Tenda! Please read this user guide before you start! This user guide instructs you to install and configure the device. This user guide uses the following formats to highlight special messages: Icon...

  • Page 4: Table Of Contents

    Contents I PRODUCT OVERVIEW ............................1 1 What It Does ............................1 2 Package Content ..........................1 3 LED ..............................2 4 Button & Interface ..........................2 5 Label ..............................3 Ⅱ INSTALL ................................4 Ⅲ LOGIN .................................. 6 1 Configure PC TCP/IP Settings ....................... 6 2 Log in to Device ...........................
  • Page 5 6 Tools ..............................25 6.1 Firmware Upgrade & Reboot ......................26 6.2 System Time & Login Timeout Setup ....................27 6.3 Syslog ..............................29 6.4 Log Settings ............................30 6.5 Backup & Restore ..........................30 6.6 Restore to Factory Default........................31 6.7 User Name &...

  • Page 6: I Product Overview

    Ⅰ Product Overview 1 What It Does This Wireless N300 Wall Plate Access Point, is a best-in-class 802.11n indoor access point designed specifically for business-class environments such as hotels, airports, coffee shops, shopping centers, sporting venues, and university campus. With standard install design and stylish appearance, it nicely fits into an 86-type wall jack and seamlessly blends in with most interior decorations in an office or room.

  • Page 7: Led

    3 LED Color Status Description Solid The device is connected to power supply. Blinking The device is functioning correctly. Green Power is not supplied to the device or the device is malfunctioning. 4 Button & Interface ❶Reset: Open the housing of the AP and press this reset button with a needle for 7 seconds to restore the device to the factory default settings.

  • Page 8: Label

    ❸USB Port: The USB port that charges terminal devices with a USB cable. ❹LAN: 100M Ethernet Port for connecting to an Ethernet LAN device such as a PC or switch, etc. This port supports “Bypass”. Client connected to the device’s LAN port can still communicate with the remote uplink device (PoE switch) even when no power is supplied to this device or it goes dead).

  • Page 9: Ⅱ Install

    Ⅱ Install Step 1: Prepare the following installation tools. Step 2: Remove the device's lid with a flathead screwdriver. Step 3: Install the device (For details, please go to the Install Guide).
  • Page 10 Step 4: Connect terminal device(s). Step 5: Verify the network topology.

  • Page 11: Ⅲ Login

    Ⅲ Login 1 Configure PC TCP/IP Settings Connect your PC to this device wirelessly or using an Ethernet cable. The default IP address of your wireless access point is 192.168.0.254. If you are using the default IP subnet, the computer you are using to connect to the device should be configured with an IP address that starts with 192.168.0.x (where x can be any integer between 2~253) and a Subnet Mask of 255.255.255.0;...
  • Page 12 You will now enter the web configuration interface as seen below.

  • Page 13: Ⅳ Features & Configurations

    Ⅳ Features & Configurations 1 Status This section includes the following: Status: View the device’s system information and LAN settings. 1.1 System Status: View the device’s wireless information and current SSID settings. 1.2 Wireless 1.3 Traffic Statistics: View current traffic statistics of each SSID. 1.4 Wireless Clients: View the MAC addresses and connection speed of the wireless clients that currently connect to each SSID.

  • Page 14: Wireless Status

    1.2 Wireless Status Click Status -> Wireless Status and you can view the device’s wireless information and current SSID settings. 1.3 Traffic Statistics Click Status -> Traffic Statistics and you can view current traffic statistics of the device's SSID.

  • Page 15: Wireless Clients

    1.4 Wireless Clients Here you can view the MAC addresses and connection speed of the wireless clients that currently connect to each SSID. To view wireless clients connected to a specific SSID, simply select it from the drop-down list on the screen. 2 LAN Settings Here you can configure the device's LAN IP address for Internet access.

  • Page 16: Dhcp Server

    Default IP address and subnet mask are respectively 192.168.0.254 and 255.255.255.0. Be sure to make a note of any changes you apply to this page. If you change the LAN IP address of this device, you have to update your PC’s TCP/IP settings and open a new connection to the new IP address and then log in again.
  • Page 17 the LAN/private network. When you enable the DHCP Server, the DHCP Server will automatically allocate an unused IP address from the IP address pool specified in this screen to the requesting device as long as the device is set to "Obtain an IP Address Automatically".

  • Page 18: Dhcp Client List

    pages may not be open. Note If there is already an active DHCP server on your network, make sure the IP address pool you specified here is not a part of that existing DHCP server. Otherwise, IP collisions may occur. 3.2 DHCP Client List Click DHCP Server ->...

  • Page 19: Basic Settings

    4.1 Basic Settings Here you can configure the basic wireless settings of the device such as the SSID (name of the network) and security.  Basic information SSID: Select the SSID you wish to use. This is the public name of your wireless network. Two SSIDs are supported.
  • Page 20 read the following). WEP (Wired Equivalent Privacy): WEP is a security algorithm for IEEE 802.11 wireless networks. Introduced as part of the original 802.11 standard, its intention was to provide data confidentiality comparable to that of a traditional wired network. Wireless speed can reach up to 54Mbps if WEP is used.
  • Page 21 the network until the supplicant’s identity has been validated and authorized. If authentication is successful, the authenticator sets the port to the "authorized" state and normal traffic is allowed, if it is unsuccessful the port remains in the "unauthorized" state and blocks traffic.
  • Page 22 128-bit per-packet key, meaning that it dynamically generates a new key for each packet. WPA also includes a message integrity check feature to prevent data packets from being tampered with. Only authorized network users can access the wireless network. WPA adopts enhanced encryption algorithm over WEP.
  • Page 23  Configuration Procedures: SSID: This is the public name of your wireless network. Select the SSID you wish to configure from the drop-down list. Security Mode: Select WPA-PSK, WPA2-PSK or WPA/WPA2-PSK Mixed. Cipher Type: Select the cipher type you wish to use. Key: Enter a security key.

  • Page 24: Radio

     Configuration Procedures: SSID: This is the public name of your wireless network. Select the SSID you wish to configure from the drop-down list. Security Mode: Select WPA or WPA2. RADIUS Server: Enter the IP address of Radius server on your LAN. RADIUS Port: Enter the Authentication port for the Radius server on your LAN.
  • Page 25 Enable Wireless: Enable or disable the wireless feature. Network Mode: Select a correct mode according to your wireless clients. The default is 11b/g/n mixed. 11b: This network mode delivers wireless speed up to 11Mbps and is only compatible with 11b wireless clients. 11g: This network mode delivers wireless speed up to 54Mbps and is only compatible with 11g wireless clients.

  • Page 26: Advanced Settings

    Extension Channel: This is used to ensure N speeds for 802.11n devices on the network. This option is available in 11b/g/n mixed mode with channel bandwidth of 20/40. WMM-Capable: WMM is QoS for your wireless network. Enabling this option may better stream wireless multimedia data (such as video or audio).

  • Page 27: Access Control

    20~999. Fragment Threshold: Specify a Fragment Threshold value. Any wireless packet exceeding the preset value will be divided into several fragments before transmission. The valid value range is between 256~2346. RTS Threshold: If a packet exceeds the set value, RTS/CTS scheme will be used to reduce collisions.

  • Page 28: Qvlan

    MAC Filter: There are three options available: Disable, Deny and Allow. Disable: Disable the access control feature. Allow: Allow only devices at specified MAC addresses to join your wireless network. Deny: Blocks only devices at specified MAC addresses from joining your wireless network.

  • Page 29: Snmp

     Configuration Procedures: Check Enable. Configure a VLAN ID for a corresponding SSID. 5 SNMP This device can be managed from SNMP management utility. Click SNMP to enter the configuration screen. Here you can configure the SNMP settings.

  • Page 30: Tools

     Configuration Procedures: SNMP: Select Enable to enable the SNMP proxy feature. Specify the Administrator Name, Device Name and Location. Read Community: Specify a community string for SNMP management utility to read the device's MIB information. Write/Read Community: Specify a community string for SNMP management utility to write/read the device's MIB information.

  • Page 31: Firmware Upgrade & Reboot

    Firmware upgrade is released periodically to improve the functionality of your device and also to add new features. If you run into a problem with a specific feature of the device, log on to Tenda website (http://www.tendacn.com) to download the latest firmware to update your device.

  • Page 32: System Time & Login Timeout Setup

    settings after upgrading firmware and then reconfigure it. Reboot For some settings to be effective, a reboot is required. All connections will be lost while rebooting. 6.2 System Time & Login Timeout Setup System Time System can be configured using the following 2 methods: Sync with Internet time servers: If enabled, system automatically connects to NTP server on the Internet to synchronize the time.
  • Page 33 To Sync with Internet time servers: Enable Sync with Internet time servers. Select a Sync Interval from the drop-down list. Select your time zone. To set time and date manually: Disable Sync with Internet time servers. Specify the time and date manually or click Sync with Your PC to automatically copy your PC's time to the device.

  • Page 34: Syslog

    6.3 Syslog View Logs Here you can view the history of the device’s actions. There are three types of logs are available: All, System and LAN. To view a specific type of log, simply select it from the Type of logs to display drop-down list.

  • Page 35: Log Settings

    6.4 Log Settings You can set the maximum number of logs that can be displayed and configure the log server settings. To configure the log server: Click Add to add a log server. Specify the IP address and port of the syslog server on your LAN and enable the log server.

  • Page 36: Restore To Factory Default

    To back up configuration: Click Backup. Click Save on the File Download window and select a hard drive to save the file. The default configuration file name is "APCfmfile.cfg". Do include the file name suffix of ".cfg" when renaming the file name to avoid problems. To restore configuration: Click Browse.

  • Page 37: User Name & Password

    You need to join a different network or unfortunately forget the login password.  You cannot access the Internet and Tenda technical staff asks you to reset the router. 6.7 User Name & Password Here you can change the user name and password for web login. We suggest that you...

  • Page 38: Diagnostics

    change the default password to a more secure password. Administrator: If you log in to the device as an administrator, you have all available rights to access the device. User: If you log in to the device as a user, you can only view configurations instead of configuring or changing any existing configurations.

  • Page 39: Ⅴ Appendix

    Ⅴ Appendix 1 Configure PC TCP/IP Settings Windows 7 Step 1: Click the icon on the bottom right corner of your desktop. Step 2: Click Open Network and Sharing Center. If you cannot find the icon on the bottom right corner of your desktop, follow steps below: Click Start ->...
  • Page 40 Step 4: Find and double click Internet Protocol Version 4(TCP/IPv4). Step 5: Select Use the following IP address, IP address: 192.168.0.x (2~253); Subnet mask: 255.255.255.0 and click OK. Step 6: Click OK on the Local Area Connection Properties window (see Step 4 for the screenshot).

  • Page 41: Windows Xp

    Windows XP Step 1: Right click My Network Places on your desktop and select Properties. Step 2: Right click Local Area Connection and select Properties. Step 3: Scroll down to find and double click Internet Protocol (TCP/IP).
  • Page 42 Step 4: Select Use the following IP address, IP address: 192.168.0.x (2~253); Subnet mask: 255.255.255.0 and click OK. Step 5: Click OK on the Local Area Connection Properties window (see Step 3 for the screenshot).

  • Page 43: Factory Default Settings

    2 Factory Default Settings Item Default Settings Login IP Address 192.168.0.254 Login Login User Name admin Login Password admin IP Address 192.168.0.254 LAN Settings Subnet Mask 255.255.255.0 (LAN) DHCP Server Disabled IP Pool 192.168.0.100~192.168.0.200 Wireless Enabled Network Mode 11b/g/n mixed Channel| Channel Bandwidth Auto|20/40|Auto Extension Channel...
  • Page 44 RTS Threshold 2347 DTIM Interval Wireless LED On/Off Enable Preamble Long Preamble Wireless Security Disabled Wireless Access Control Disabled SNMP Disabled Administrator Name: Administrator Device Name: W312A SNMP Location: Shenzhen Read Community String: public Write/Read Community String: private Sync with Internet Time Servers Tools System Time Time Zone: (GMT+08:00)Beijing, Chongqing,...

  • Page 45: Safety And Emission Statement

    3 Safety and Emission Statement CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. This device complies with EU 1999/5/EC. NOTE: (1) The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.
  • Page 46 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
