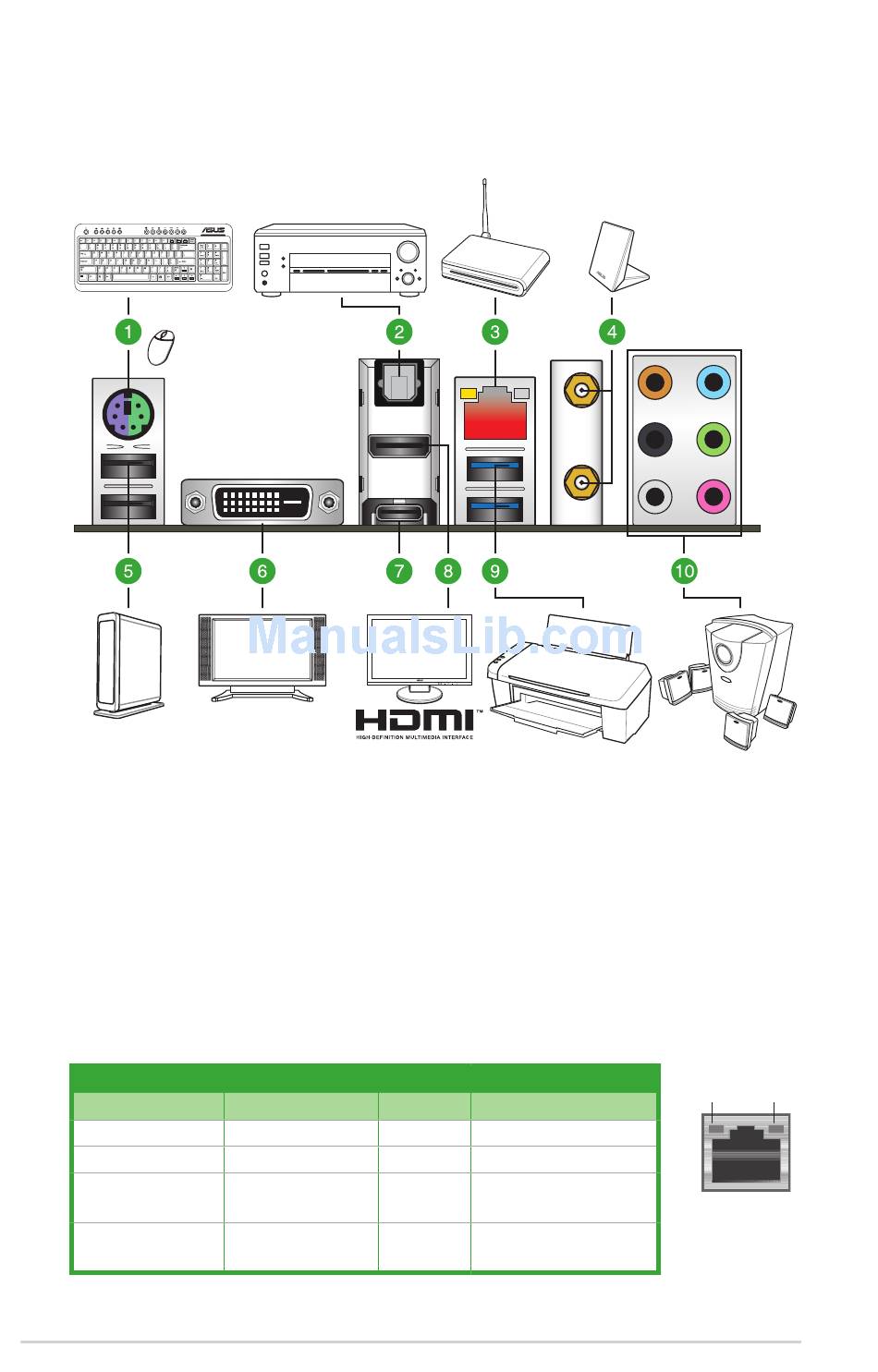

1.7.1 Rear panel connectors
1. PS/2 keyboard/mouse combo port. This port is for a PS/2 mouse or keyboard.
2. Optical S/PDIF out port. This port allows you to connect your PC to amplified
speakers, headphones, or Sony/Phillips Digital Interconnect Format (S/PDIF) compliant
devices.
3. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.
LAN port LED indications
Activity/Link LED
Status
Off
Orange
Orange
(Blinking)
Orange (Blinking
then steady)
1-16
Description Status
No link OFF
Linked ORANGE 100 Mbps connection
Data activity GREEN
Ready to wake
up from S5 mode
Speed LED
Description
10 Mbps connection
1 Gbps connection
Chapter 1: Product Introduction
Activity Link Speed
LED LED
LAN port
